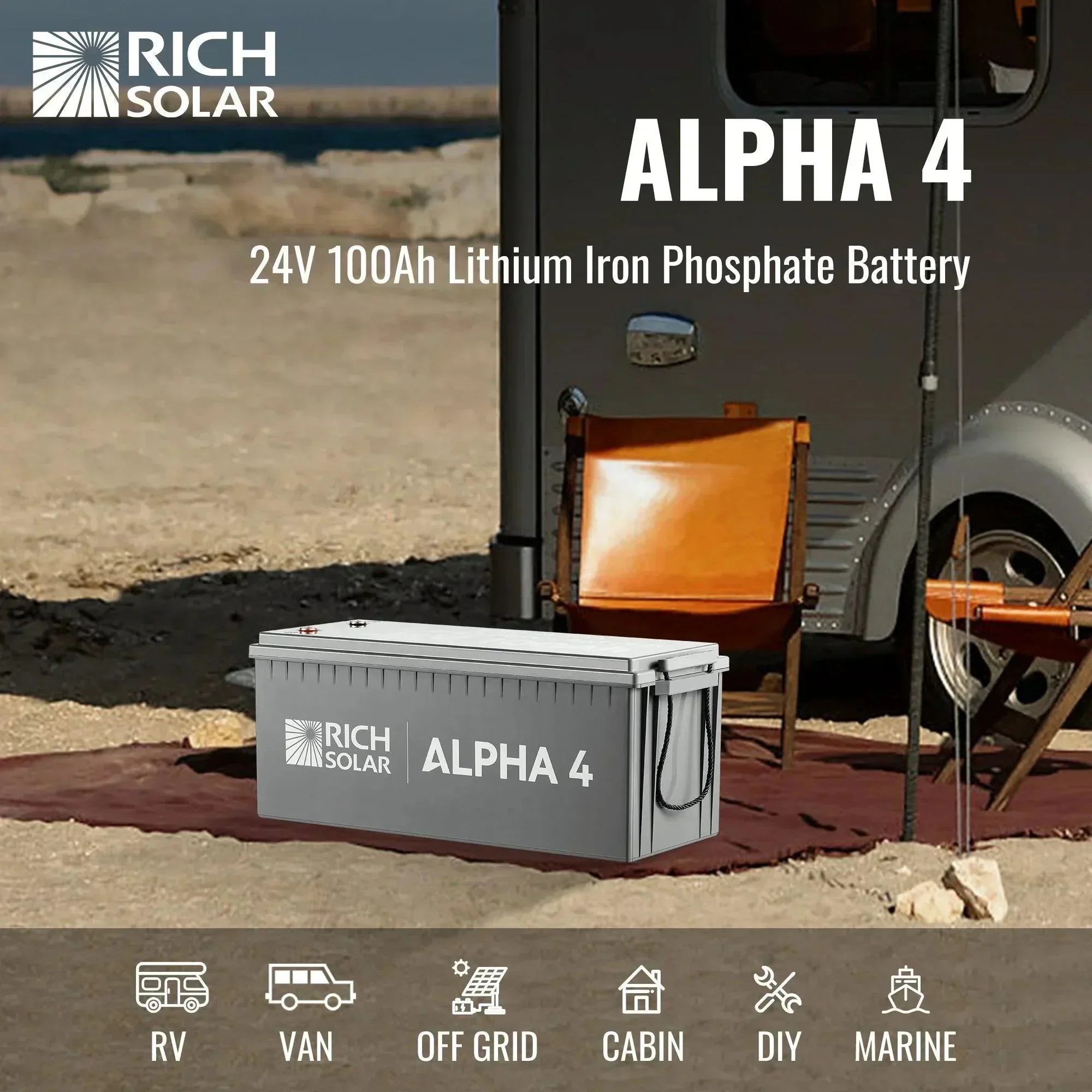

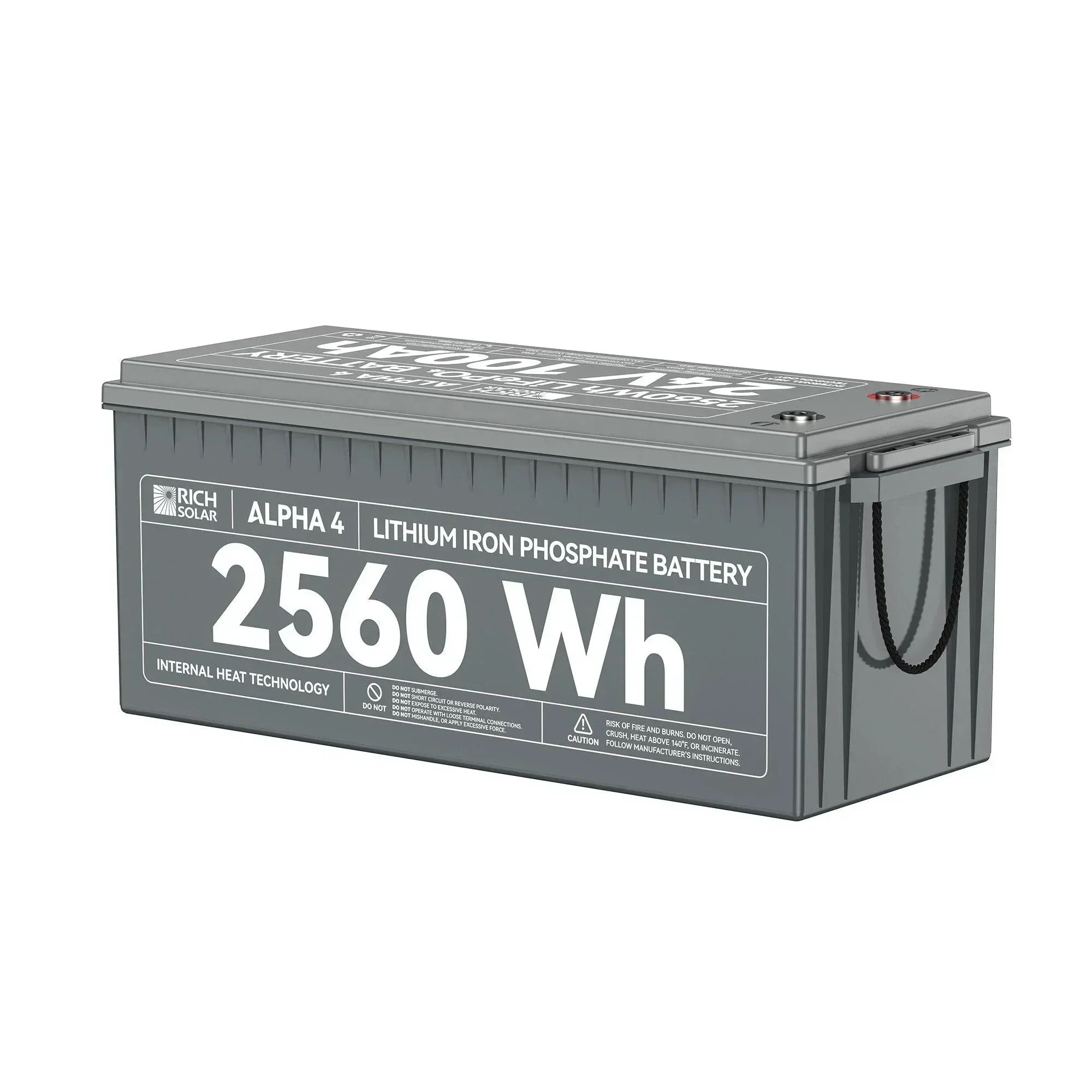

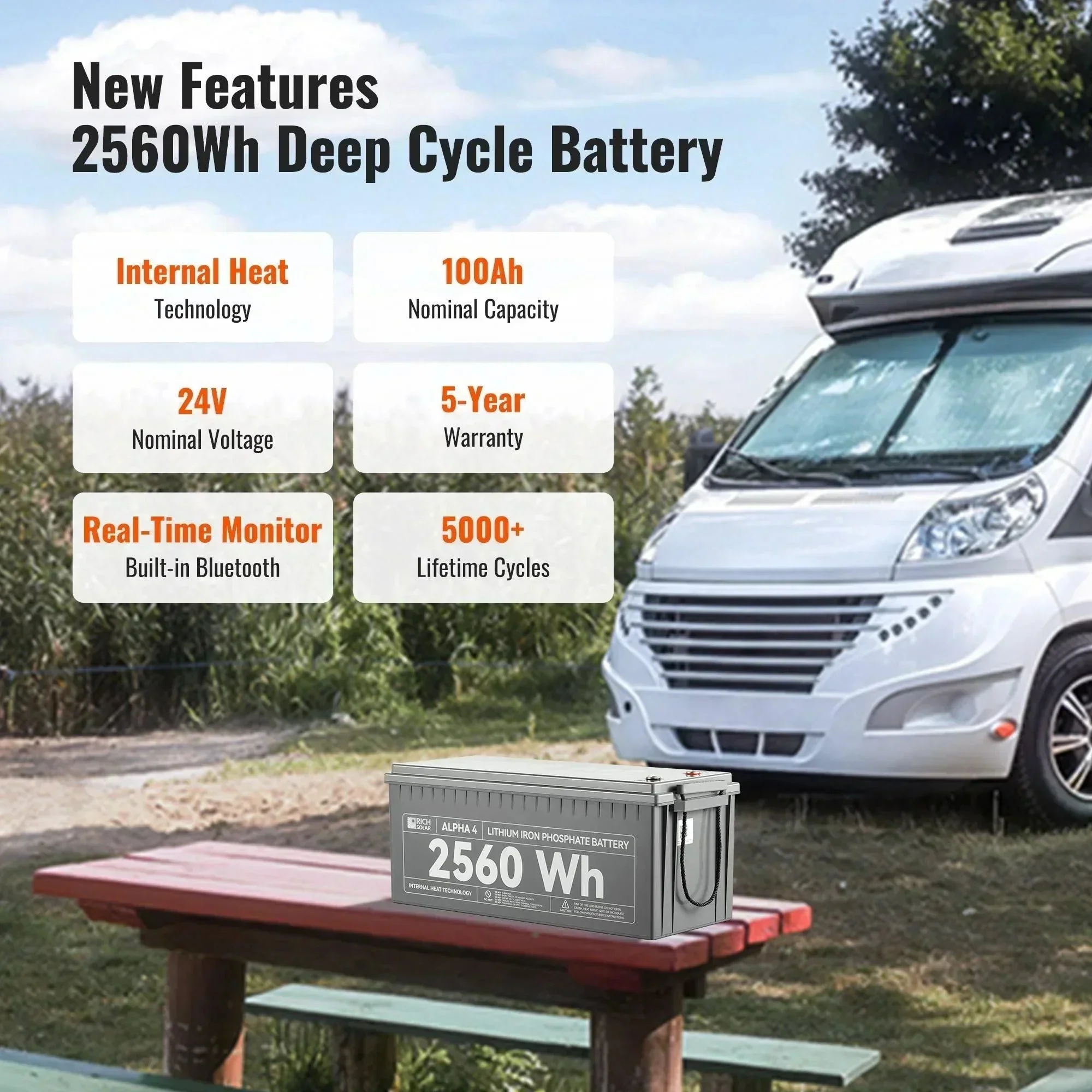

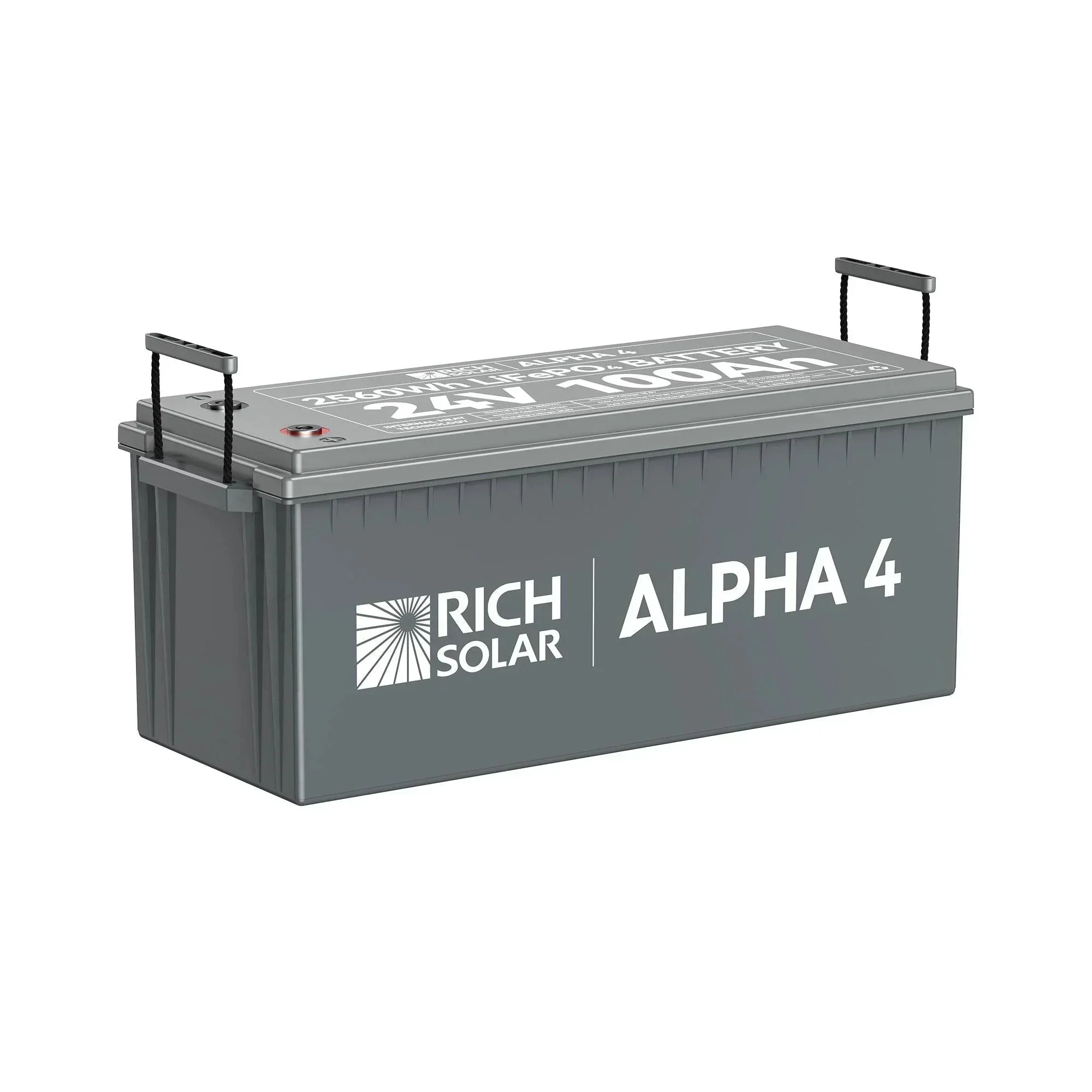

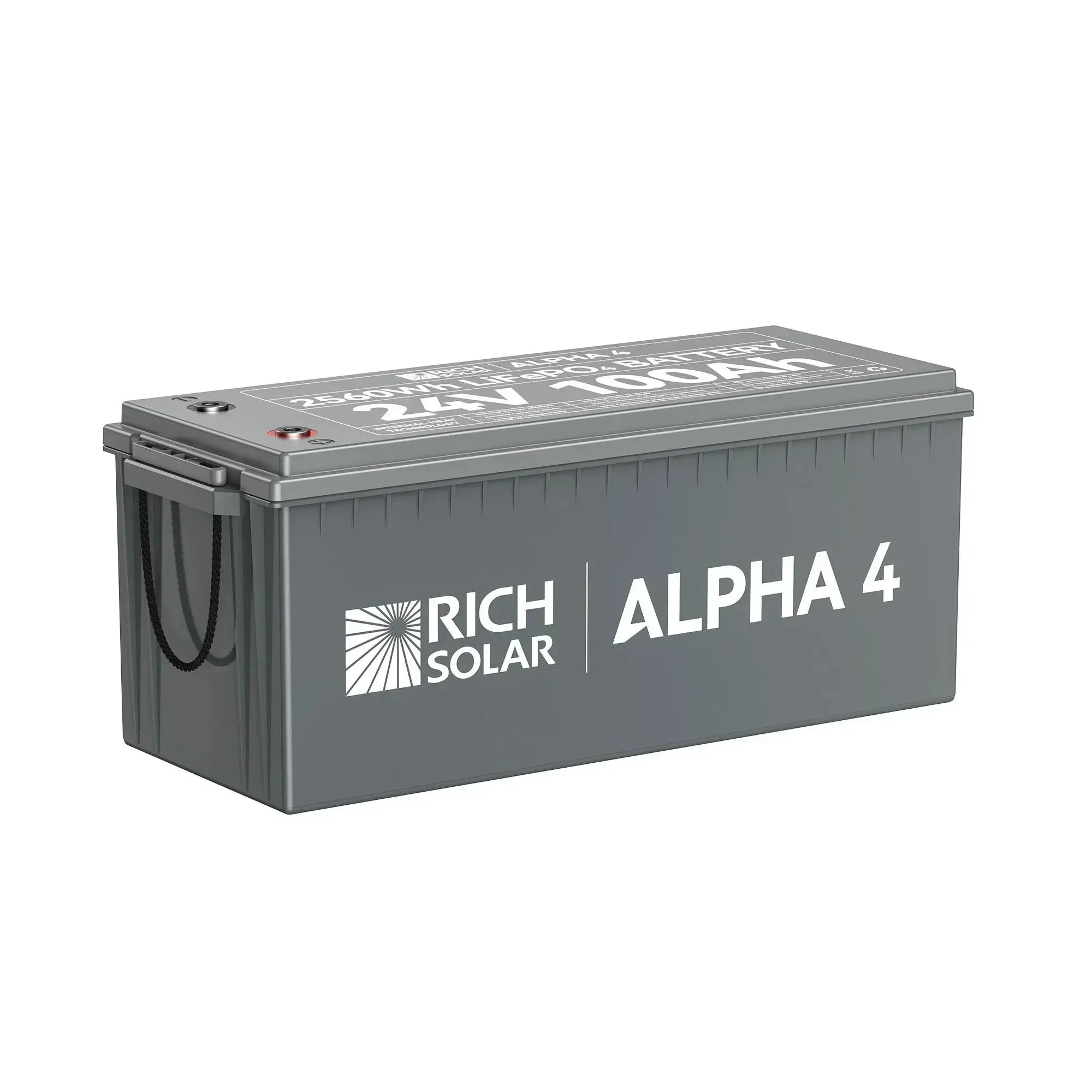

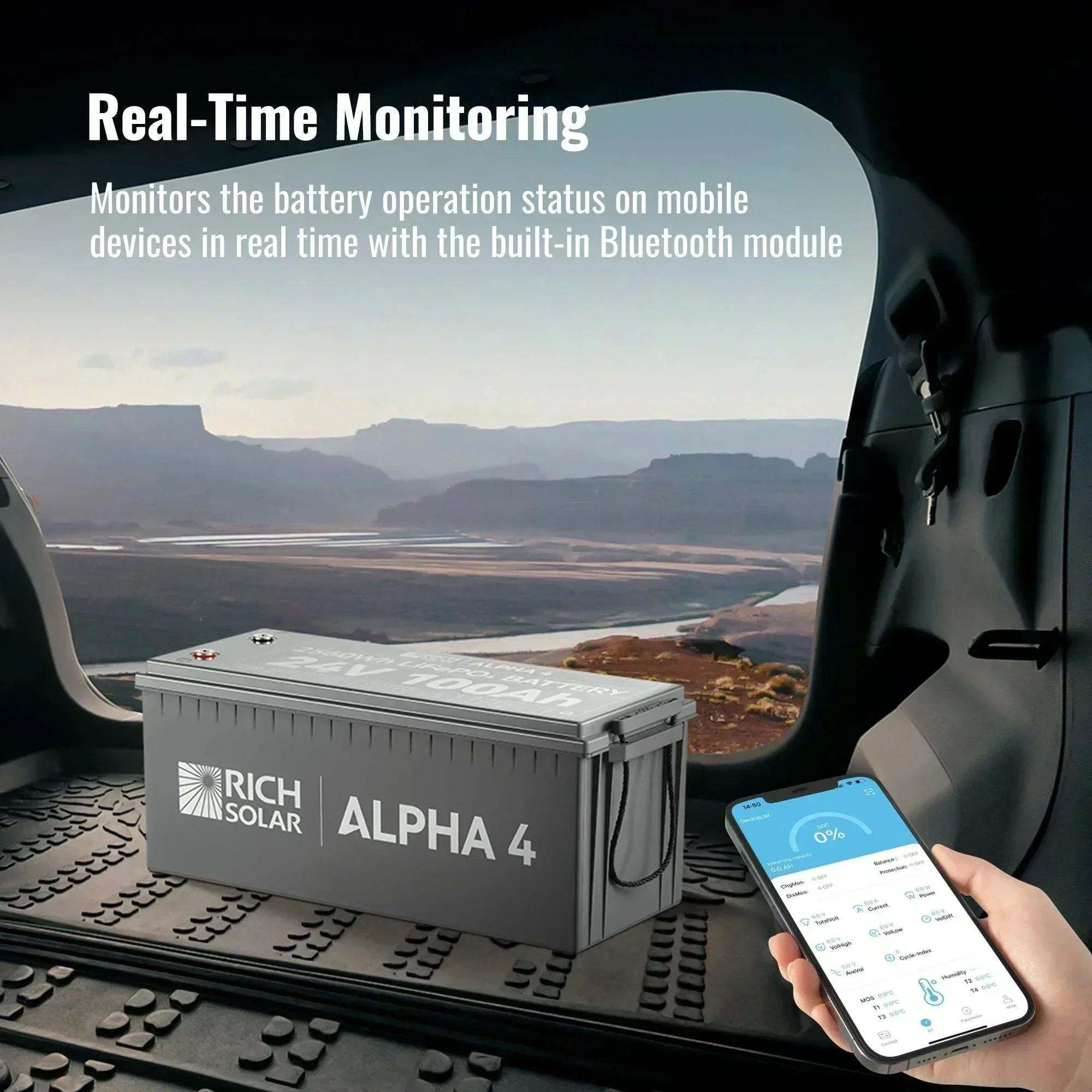

Rich Solar ALPHA 4 | 24V 100Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology
Rich Solar ALPHA 4 | 24V 100Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology
Specifications
BATTERY
Cell Type:
LiFePO4 Battery
Nominal Voltage:
25.6V
Nominal Capacity:
100Ah
Nominal Energy:
2560Wh

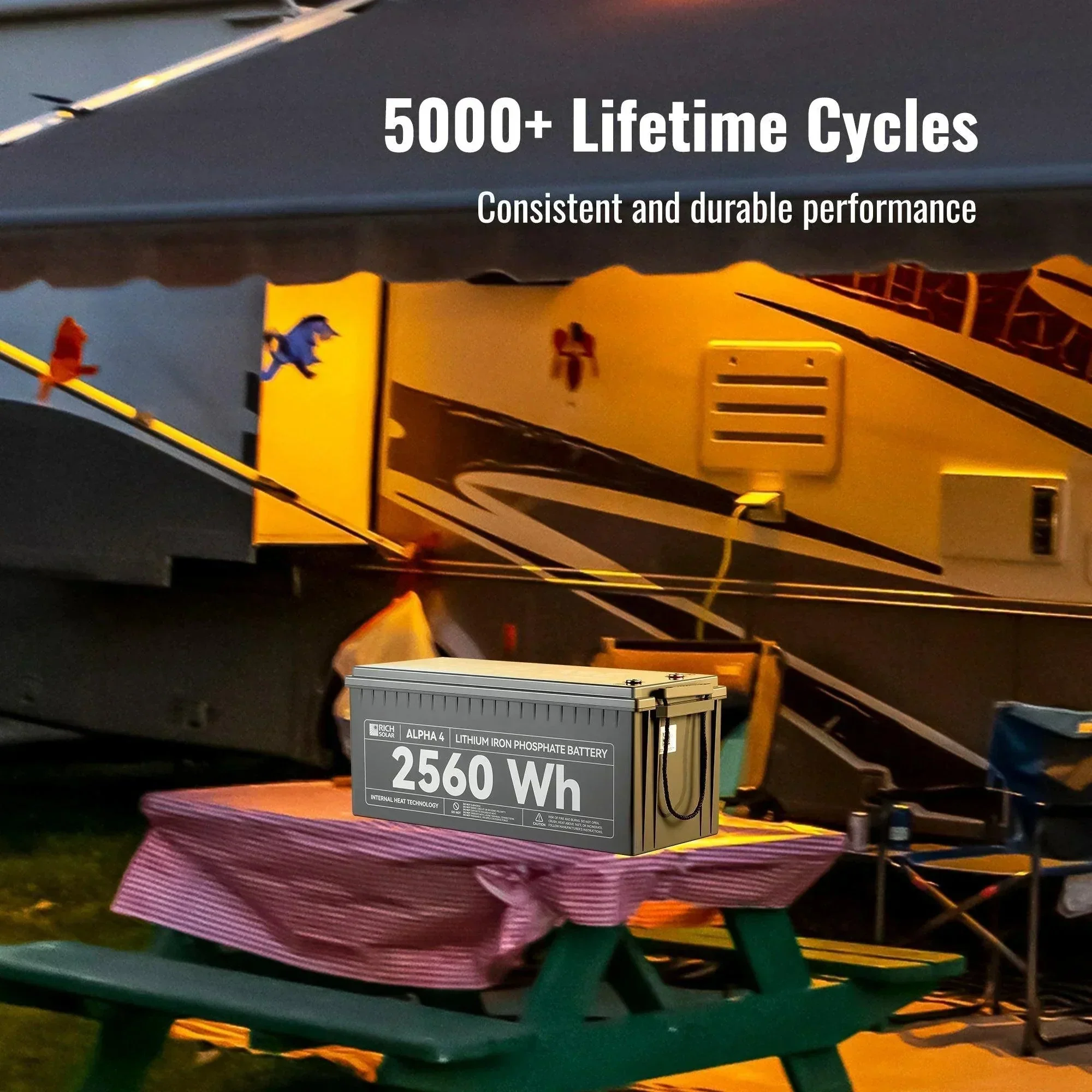

Cycle Life:
5000 cycles
Maximum Expansion (Parallel & Series):
4P4S
BMS
BMS:
100A
Maximum Charging Current:
100A
Maximum Continuous Discharge Current:
100A
Maximum Discharge Current 10 Seconds:
110A
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4V ± 0.2V
Recommend Charge Current:
50A (0.2C)
TEMPERATURE
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14℉ to 95℉ (-10℃ to 35℃)

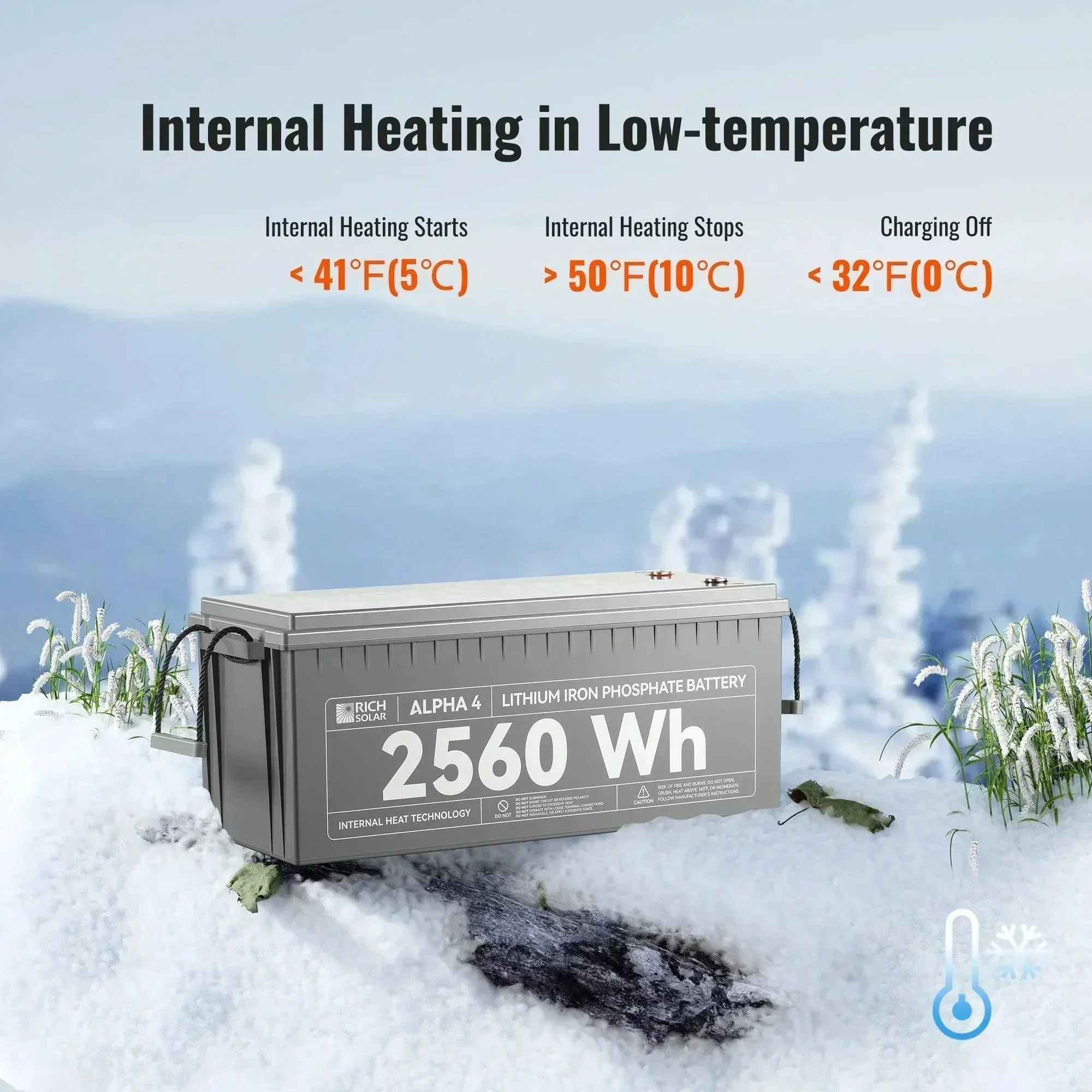

SELF-HEATING
External Power Draw:
100W
Internal Heating Starts:
< 41℉ (5℃)
Internal Heating Stops:
> 50℉ (10℃)
OTHERS
Net Battery Weight:
48.5lb
Size(L*W*H):
20.9x8.1x8.5in
Housing Material:
ABS (Flame Retardant Plastic)
Protection Class:
IP65
Warranty:
5 Years
Certifications:
UL1973, FCC, UN38.3, ETL
Original: $949.99
-70%$949.99
$285.00More Images
