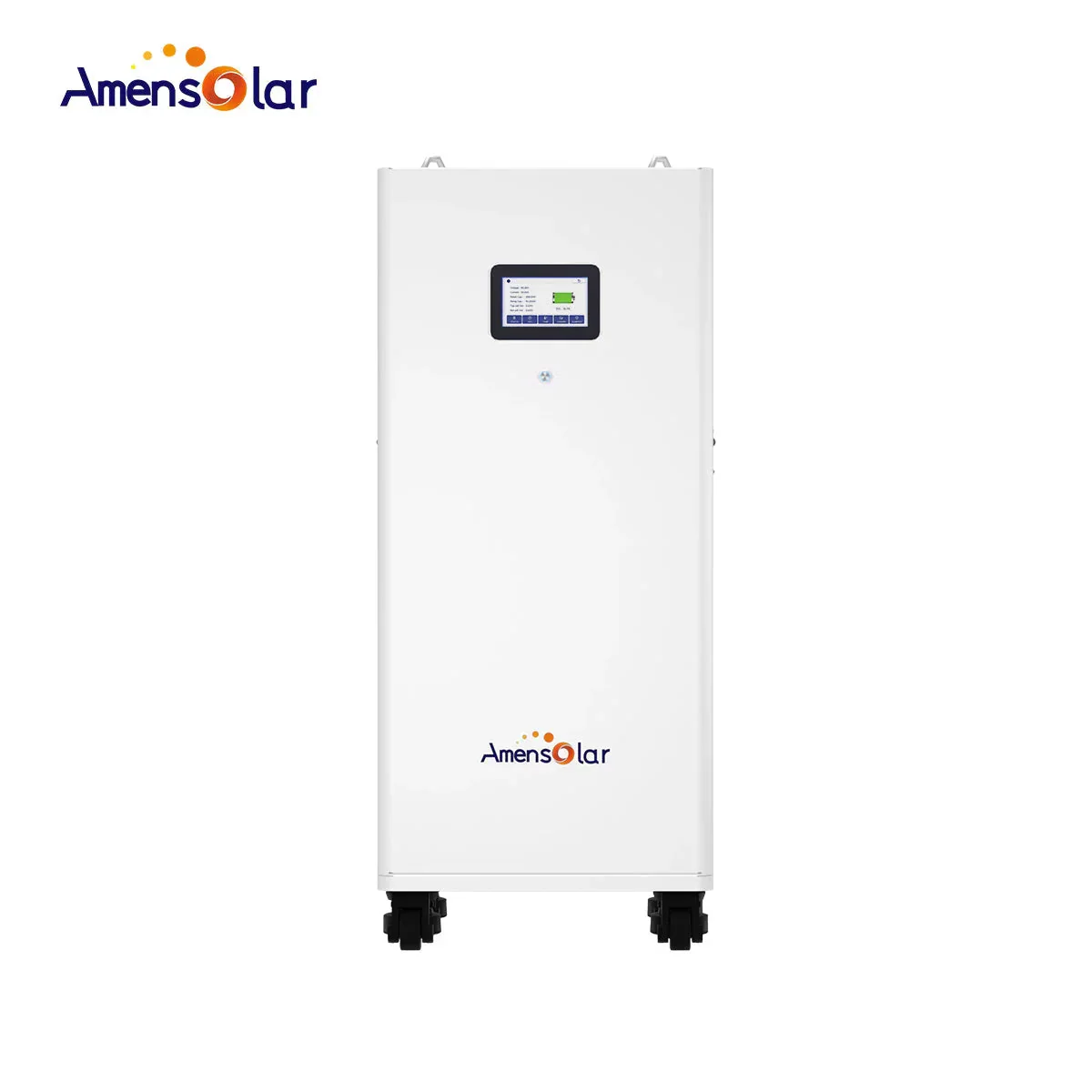

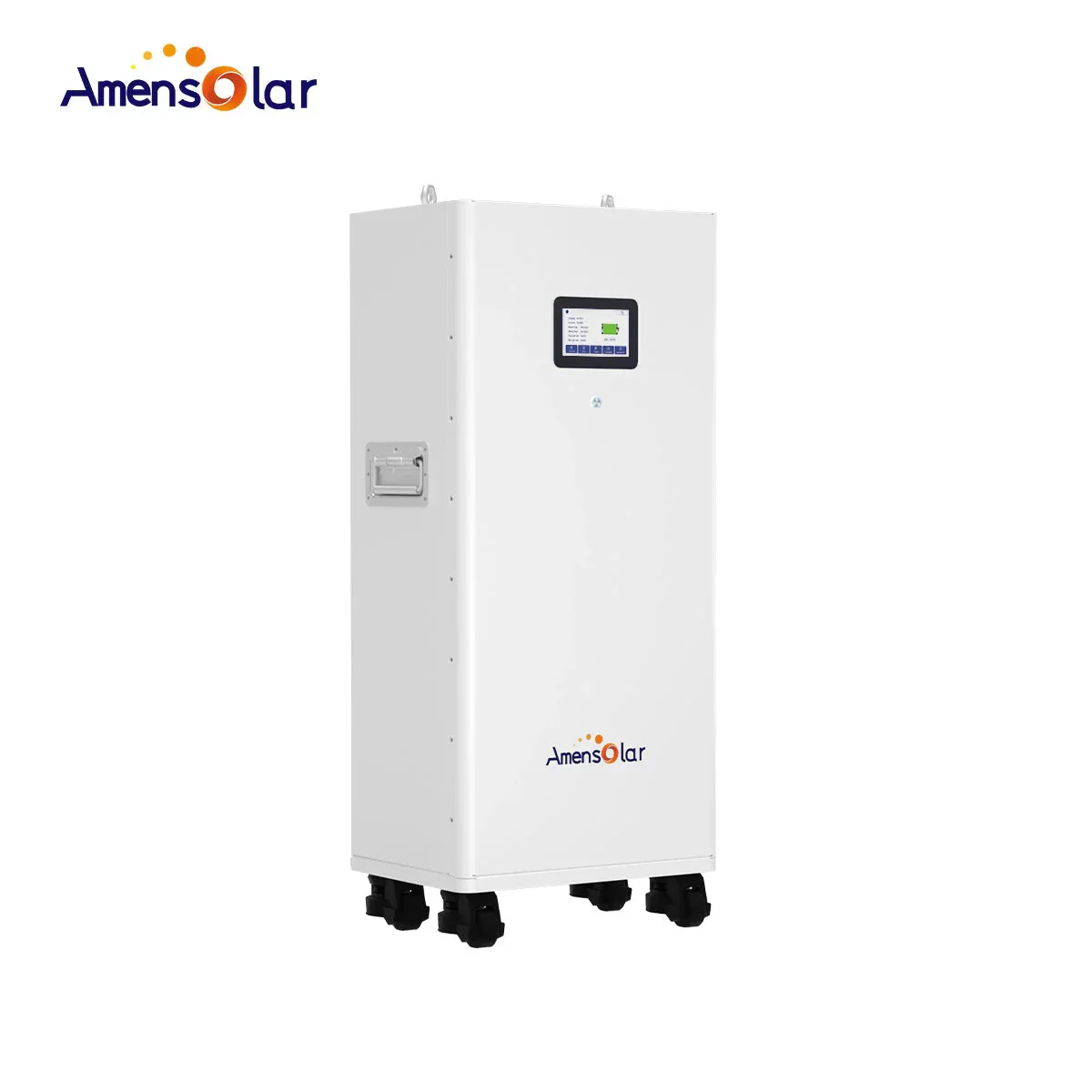

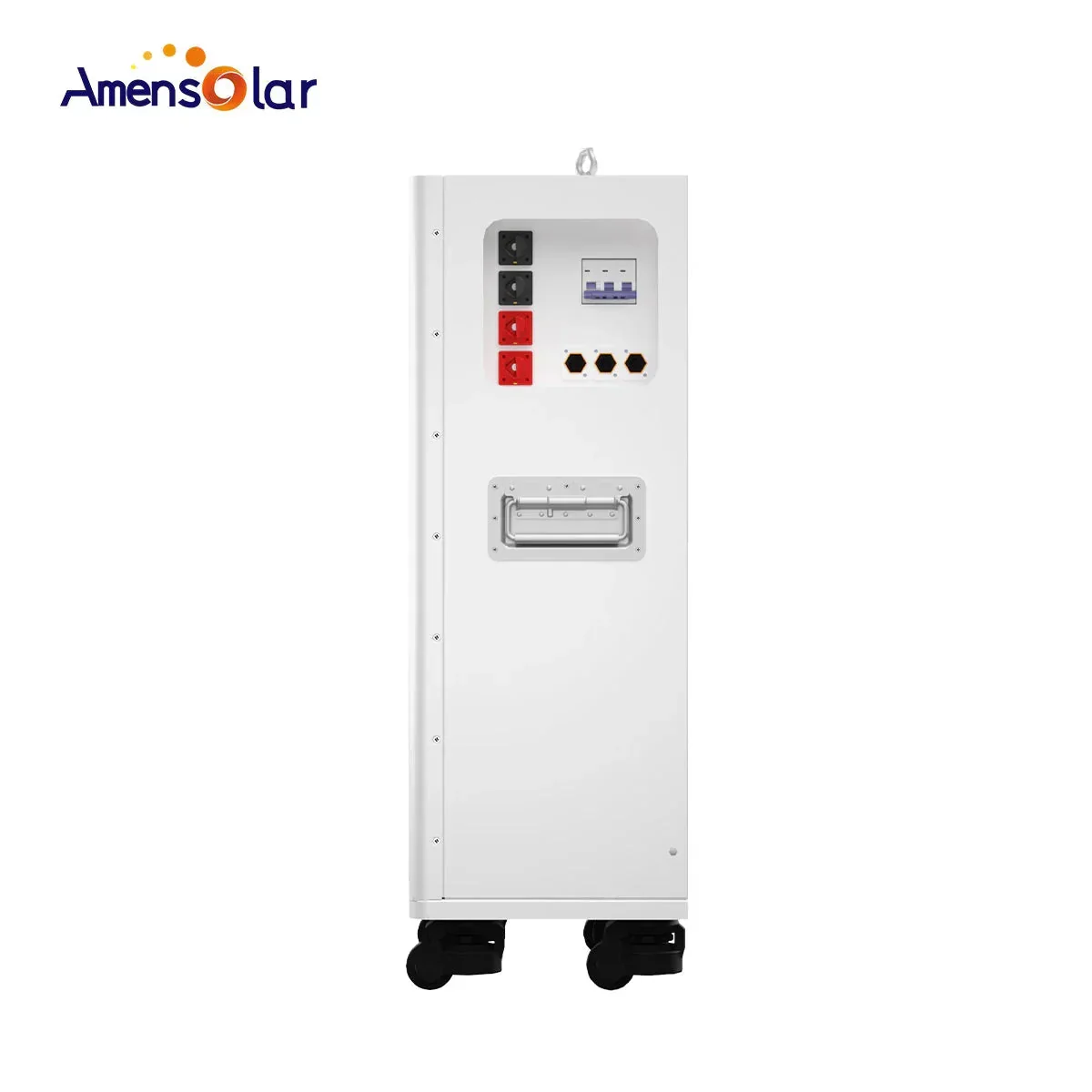

AmenSolar AMF16000 16KWH Floor-Mounted Lithium Battery
AmenSolar AMF16000 16KWH Floor-Mounted Lithium Battery
- Car-grade LiFePo4 battery: Compact, safe, stable, flexible
- Cycle life：>8,000 Cycles at 90% DOD
- Consistency of battery cells: Active equalization (3A) Settable charging voltage
- Auto-heating function：Heating below 0℃ BMS automatic management
- Touch screen: View battery information Set communication protocol and DIP
- Intelligent BMS：Wider compatibility; Automatic DIP Setting
- Scalable: paralleled 16 sets：Battery:16kWh – 256kWh
- 2U design; wall mounted：More capacity in limited space
- Certification：UL1973/IEC61000/CE/UN38.3/MSDS
|
Model |
AMF16000 |
| Module Type | LFP 16kWh / LV |
|
Nominal Voltage
|
51.2V |
|
Operating Voltage Range
|
44.8~58.4V
|
|
Nominal Capacity
|
300Ah |
|
Nominal Energy (at25°C)
|
16kWh |
|
DOD
|
90%
|
|
Charge/Discharge Current
|
100A
|
|
Max Charge/Discharge Current
|
200A
|
|
Charge Temperature
|
200A |
| Charge Temperature | 0~55℃ |
|
Discharge Temperature
|
-10~50℃
|
|
Relative Humidity
|
5% – 95%
|
| Communication Interface |
CAN / RS485
|
|
Enclosure Protection Rating
|
IP 52
|
|
Cooling Type
|
Natural cooling
|
|
Cycle Life
|
≥8000
|
|
Warranty
|
10 years
|
|
Life Span
|
20+ Years (25°C)
|
|
Max. Pieces of Parallel
|
16
|
|
Dimension (L*W*H)
|
277*400*858mm
|
|
Weight
|
125±1kg
|
|
Certificates
|
IEC61000/CE/UN38.3/MSDS
|
$2,350.00
AmenSolar AMF16000 16KWH Floor-Mounted Lithium Battery—
$2,350.00
More Images
AmenSolar AMF16000 16KWH Floor-Mounted Lithium Battery
AmenSolar AMF16000 16KWH Floor-Mounted Lithium Battery
- Car-grade LiFePo4 battery: Compact, safe, stable, flexible
- Cycle life：>8,000 Cycles at 90% DOD
- Consistency of battery cells: Active equalization (3A) Settable charging voltage
- Auto-heating function：Heating below 0℃ BMS automatic management
- Touch screen: View battery information Set communication protocol and DIP
- Intelligent BMS：Wider compatibility; Automatic DIP Setting
- Scalable: paralleled 16 sets：Battery:16kWh – 256kWh
- 2U design; wall mounted：More capacity in limited space
- Certification：UL1973/IEC61000/CE/UN38.3/MSDS
|
Model |
AMF16000 |
| Module Type | LFP 16kWh / LV |
|
Nominal Voltage
|
51.2V |
|
Operating Voltage Range
|
44.8~58.4V
|
|
Nominal Capacity
|
300Ah |
|
Nominal Energy (at25°C)
|
16kWh |
|
DOD
|
90%
|
|
Charge/Discharge Current
|
100A
|
|
Max Charge/Discharge Current
|
200A
|
|
Charge Temperature
|
200A |
| Charge Temperature | 0~55℃ |
|
Discharge Temperature
|
-10~50℃
|
|
Relative Humidity
|
5% – 95%
|
| Communication Interface |
CAN / RS485
|
|
Enclosure Protection Rating
|
IP 52
|
|
Cooling Type
|
Natural cooling
|
|
Cycle Life
|
≥8000
|
|
Warranty
|
10 years
|
|
Life Span
|
20+ Years (25°C)
|
|
Max. Pieces of Parallel
|
16
|
|
Dimension (L*W*H)
|
277*400*858mm
|
|
Weight
|
125±1kg
|
|
Certificates
|
IEC61000/CE/UN38.3/MSDS
|
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
AmenSolar AMF16000 16KWH Floor-Mounted Lithium Battery
- Car-grade LiFePo4 battery: Compact, safe, stable, flexible
- Cycle life：>8,000 Cycles at 90% DOD
- Consistency of battery cells: Active equalization (3A) Settable charging voltage
- Auto-heating function：Heating below 0℃ BMS automatic management
- Touch screen: View battery information Set communication protocol and DIP
- Intelligent BMS：Wider compatibility; Automatic DIP Setting
- Scalable: paralleled 16 sets：Battery:16kWh – 256kWh
- 2U design; wall mounted：More capacity in limited space
- Certification：UL1973/IEC61000/CE/UN38.3/MSDS
|
Model |
AMF16000 |
| Module Type | LFP 16kWh / LV |
|
Nominal Voltage
|
51.2V |
|
Operating Voltage Range
|
44.8~58.4V
|
|
Nominal Capacity
|
300Ah |
|
Nominal Energy (at25°C)
|
16kWh |
|
DOD
|
90%
|
|
Charge/Discharge Current
|
100A
|
|
Max Charge/Discharge Current
|
200A
|
|
Charge Temperature
|
200A |
| Charge Temperature | 0~55℃ |
|
Discharge Temperature
|
-10~50℃
|
|
Relative Humidity
|
5% – 95%
|
| Communication Interface |
CAN / RS485
|
|
Enclosure Protection Rating
|
IP 52
|
|
Cooling Type
|
Natural cooling
|
|
Cycle Life
|
≥8000
|
|
Warranty
|
10 years
|
|
Life Span
|
20+ Years (25°C)
|
|
Max. Pieces of Parallel
|
16
|
|
Dimension (L*W*H)
|
277*400*858mm
|
|
Weight
|
125±1kg
|
|
Certificates
|
IEC61000/CE/UN38.3/MSDS
|
