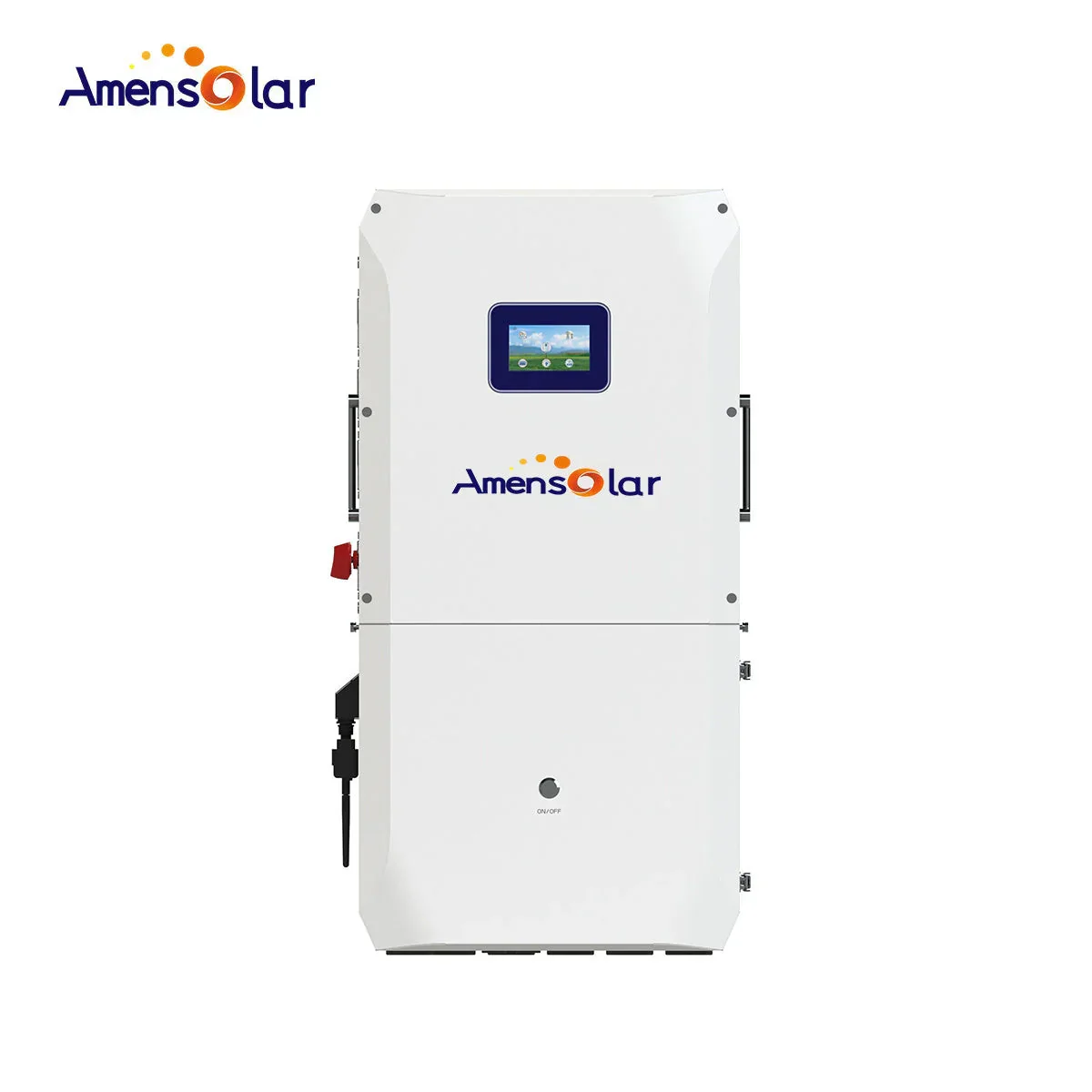

AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter
AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter
1) Certificate: UL1741 UL1699B CSA IEEE Hawaiia
2) Inverter power: 16KW
3) Maximum number of parallel inverters: 4
4) Communication: Can,Rs485
5) Support (110~120)/(220~240V) split phase ,240V single phase voltage.
6) Support OEM for customers with their own brand.
7) Support customer to do UL multiple listing.
8) Support parallel and generator function.
9) Support peak shifting function for customer to use extral electricity to earn money .
10) Max grid pass though current(A): 200
11) Mainly recommended models: N3H-X16US
|
Model |
N3H-X16US |
| PV input | |
| Max.DC input power (kW) | 24 |
| No. of MPPT trackers | 4 |
| MPPT voltage range (V) | 120~430 |
| MAX. DC input voltage (V) | 500 |
| MAX. input current per MPPT (A) | 20/20/20/20 |
| MAX. short current per MPPT (A) | 25/25/25/25 |
|
Battery input |
|
| Nominal voltage (V) | 48 |
| MAX.charging/discharging current (A) | 260/280 |
| Battery voltage range (V) | 40-58 |
| Battery type | Lithium /Lead-acid |
| Charging controller | 3-Stage with equalization |
|
AC output(on-grid) |
|
| Nominal output power output to grid (kVA) | 16 |
| MAX. apparent power output to grid (kVA) | 16 |
| Nominal AC voltage(L-N/L1-L2) (V) | 110 -120V/220-240V split phase, 208V(2/3 phase), 230V(1phase) |
| Nominal AC frequency(Hz) | 50/60 |
| Nominal AC current (A) | 66.7 |
| Max. AC current (A) | 73.7 |
| Max. grid passthrough current (A) | 200 |
| Output THDi | <3% |
|
AC output(back-up) |
|
| Nominal. apparent power (kVA) | 13 |
| Max. apparent power（no PV) (kVA) | 13.2 |
| Max. apparent power（wtih PV) (kVA) | 13.2 |
| Nominal output voltage(V) | 120/240 |
| Nominal output frequency (Hz) | 60 |
| Output power factor | 0.8leading~0.8lagging |
| Output THDu | <2% |
| Protection | |
| Ground detection | Yes |
| Arc fault protection | Yes |
| Island protection | Yes |
| Insulation resistor detection | Yes |
| Residual current monitoring unit | Yes |
| Output over current protection | Yes |
| Back-up output short protection | Yes |
| Output over voltage protection | Yes |
| Output under voltage protection | Yes |
|
General data |
|
| Mppt efficency | 99.9% |
| Europe efficiency(PV) | 96.2% |
| Max. PV to grid efficiency(PV) | 96.5% |
| Max. battery to load efficiency | 94.6% |
| Max. PV to battery charing efficiency | 95.8% |
| Max. grid to battery charing efficiency | 94.5% |
| Operating temperature range (℃) | -25~+60 |
| Relative humidity | 0-95% |
| Operating altitude | 0~4,000m(Derating above 2,000m altitude) |
| Ingress protection | IP65/NEMA 3R |
| Weight (kg) | 53 |
| Weight (with breaker) (kg) | 56 |

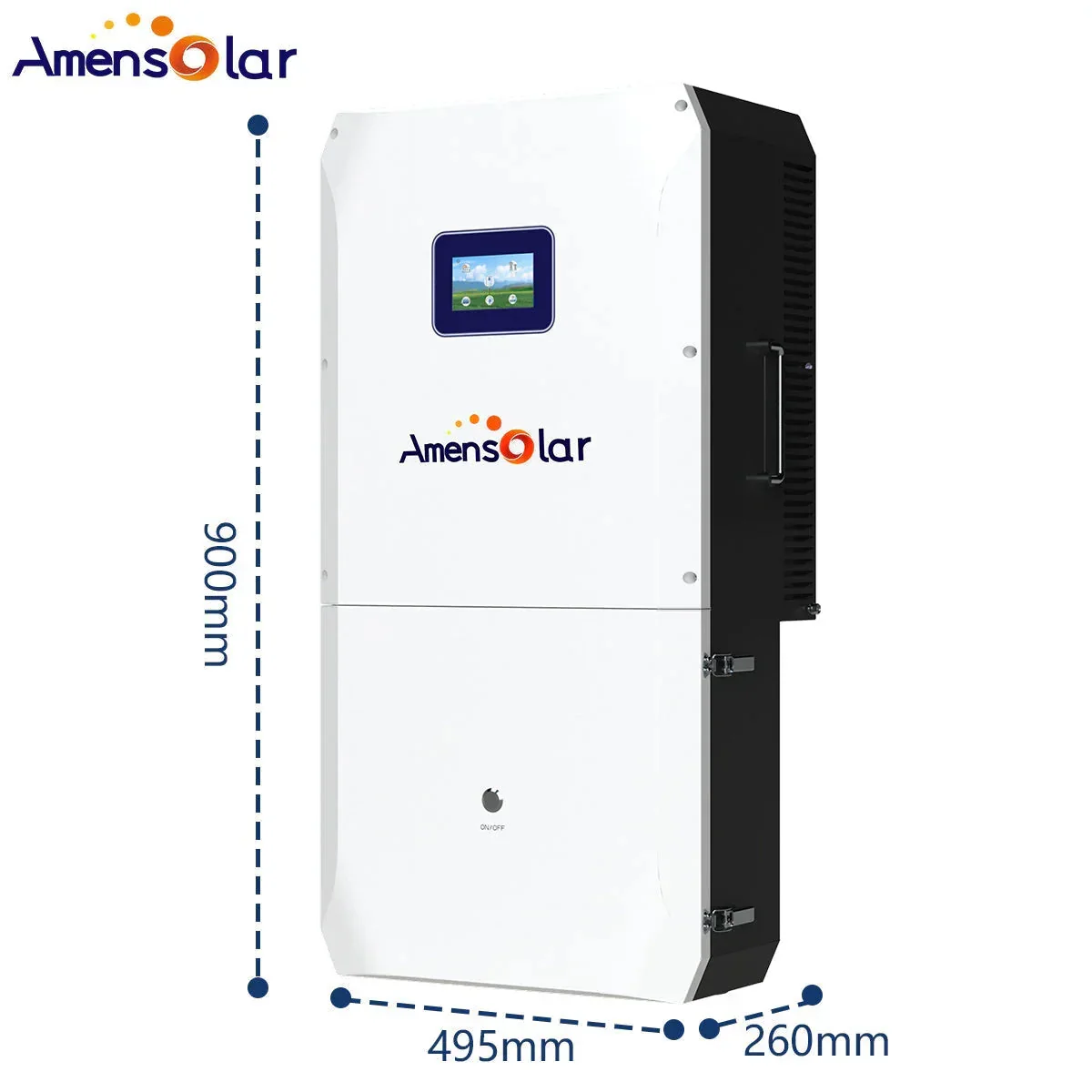

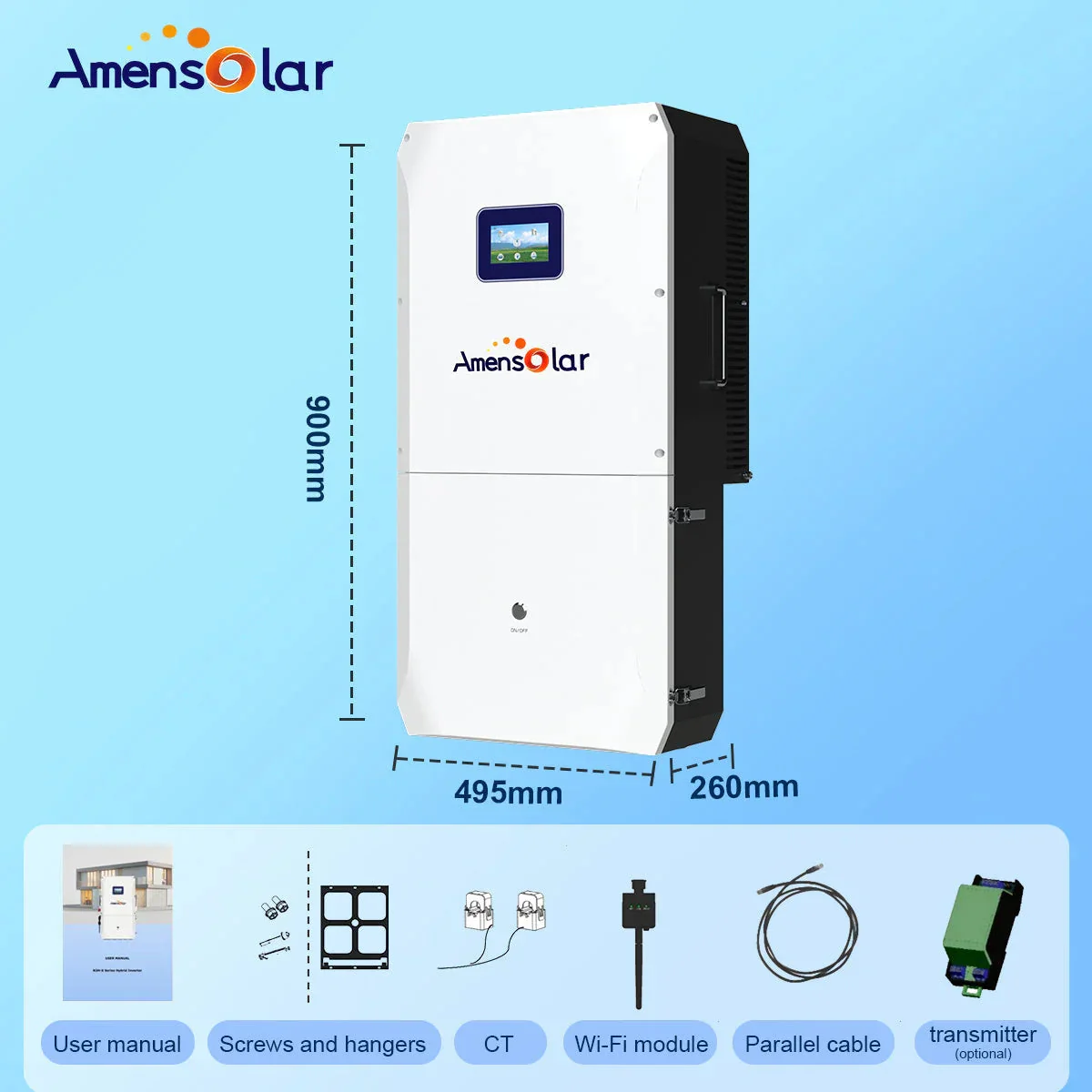

| Dimensions W*H*D (mm) | 495 x 900 x 260 |
| Cooling | Air Cooling |
| Noise emission (dB) | 38 |
| Display | LCD |
| Communication with BMS/Meter/EMS | RS485, CAN |
| Supported communication interface | RS485, 4G (optional), Wi-Fi |
| Self-consumption | <25W |
| Safety | UL1741, UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12), |
| EMC | FCC part 15 classB |
| Grid connection standards | IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21 Phase I,II,III,CEC,CSIP,SRD2.0,SGIP,OGPe,NOM,California Prob65 |
