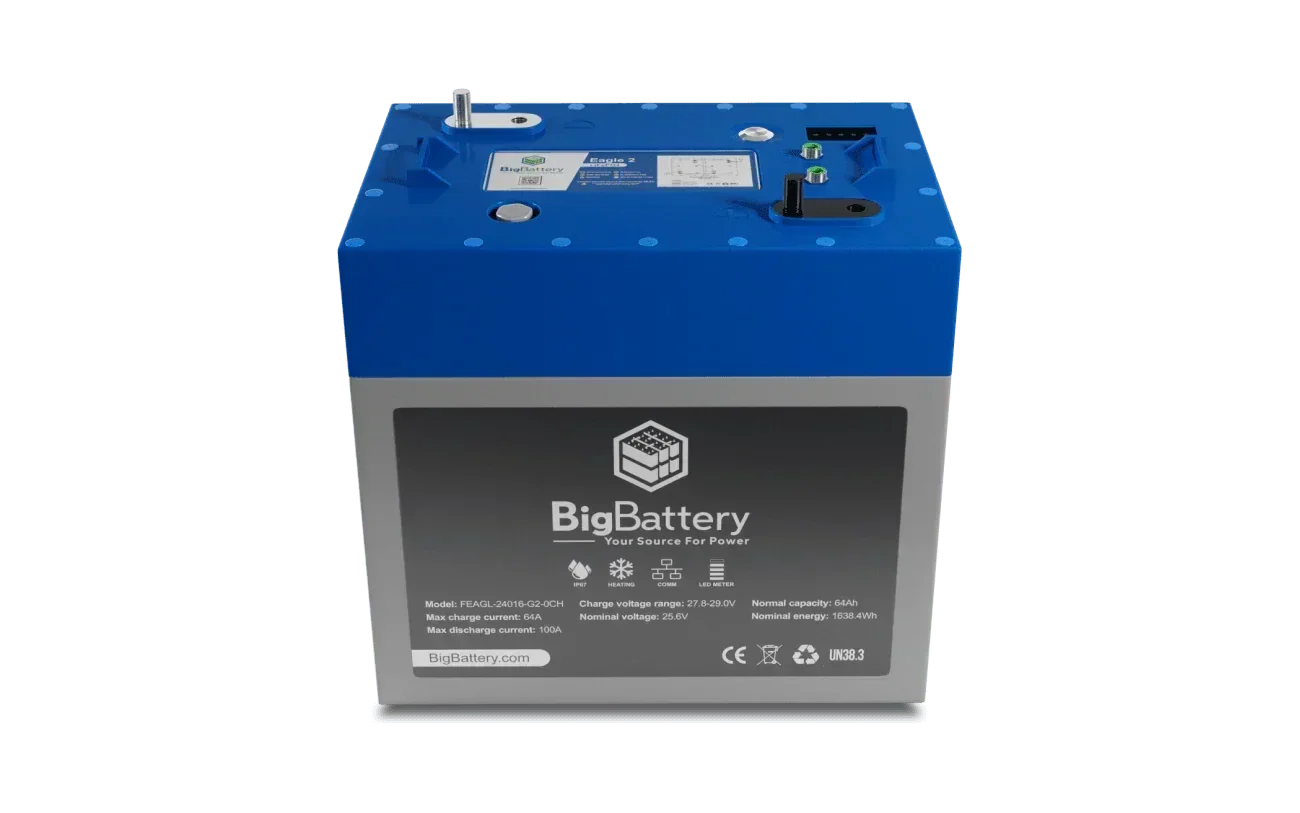

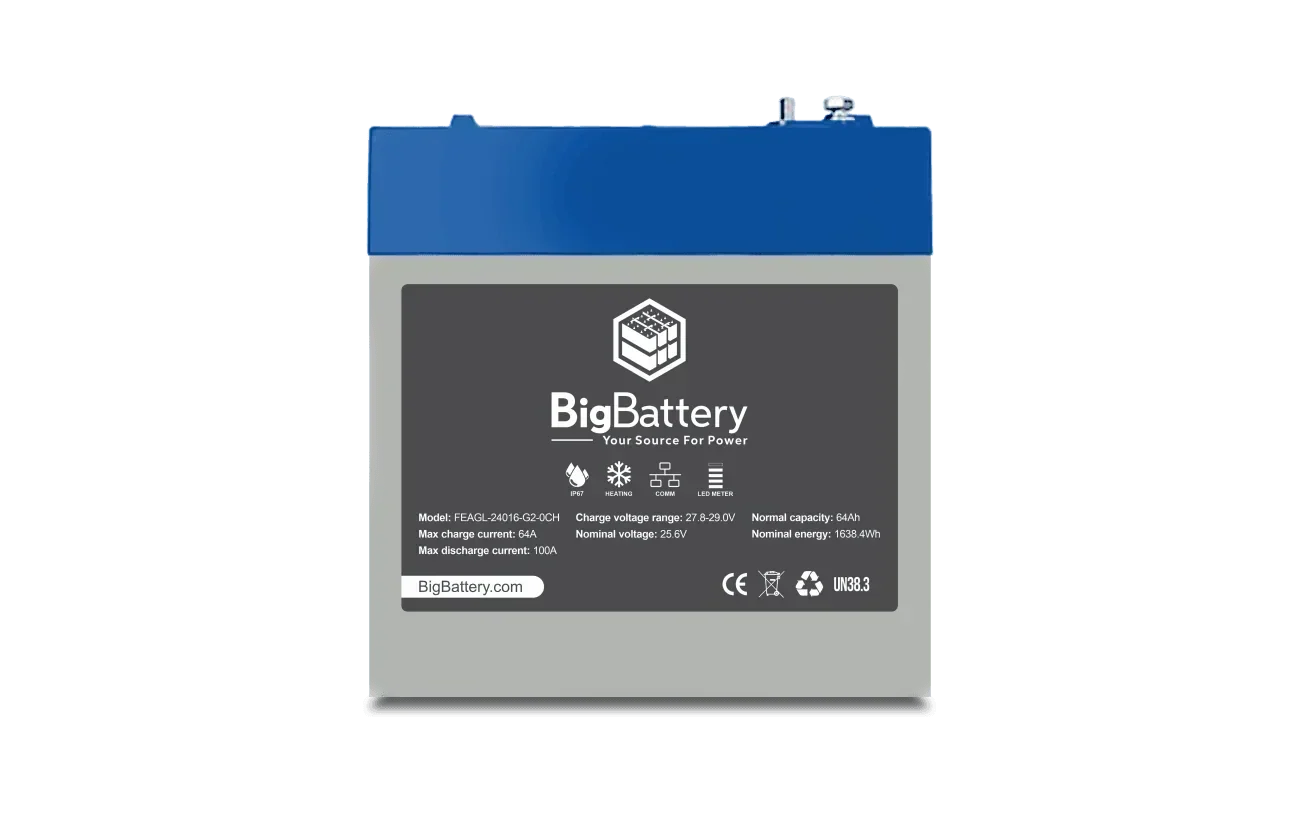

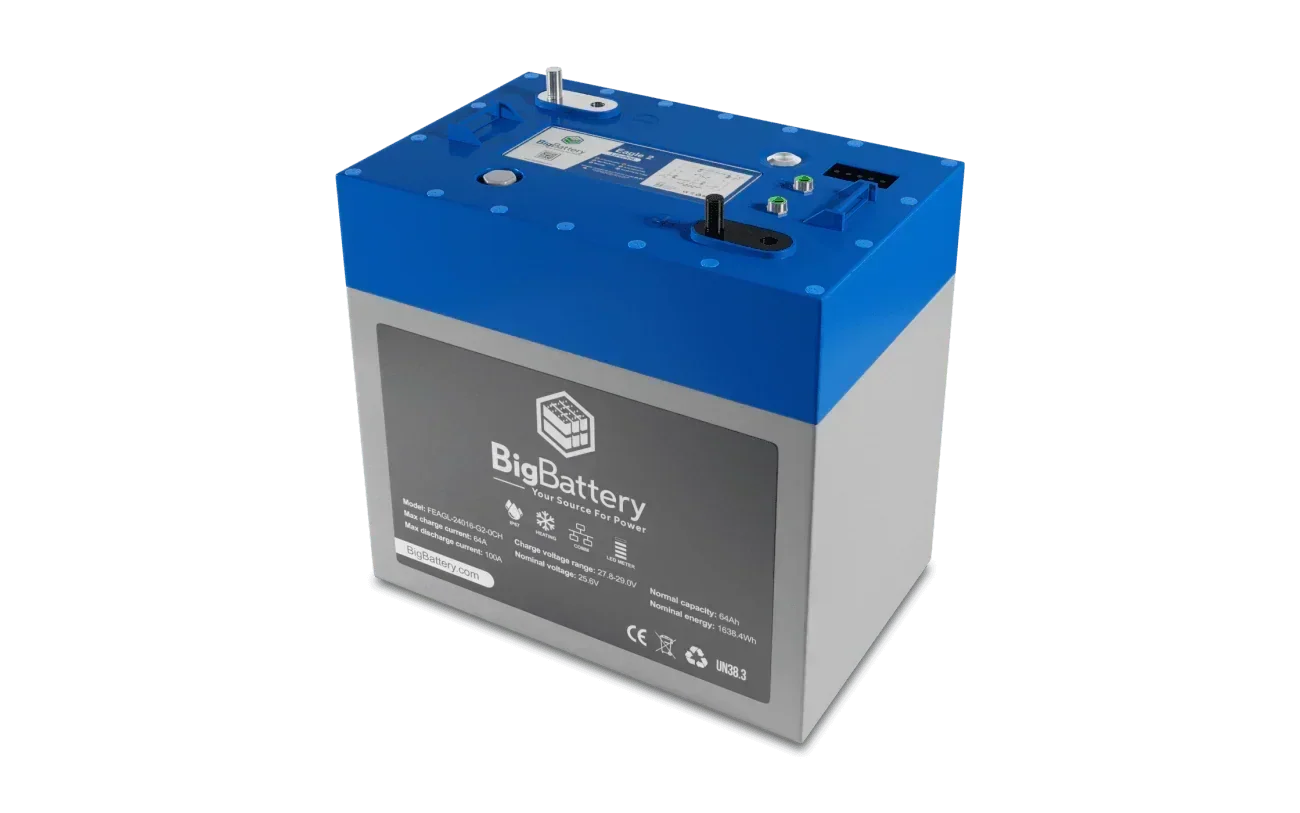

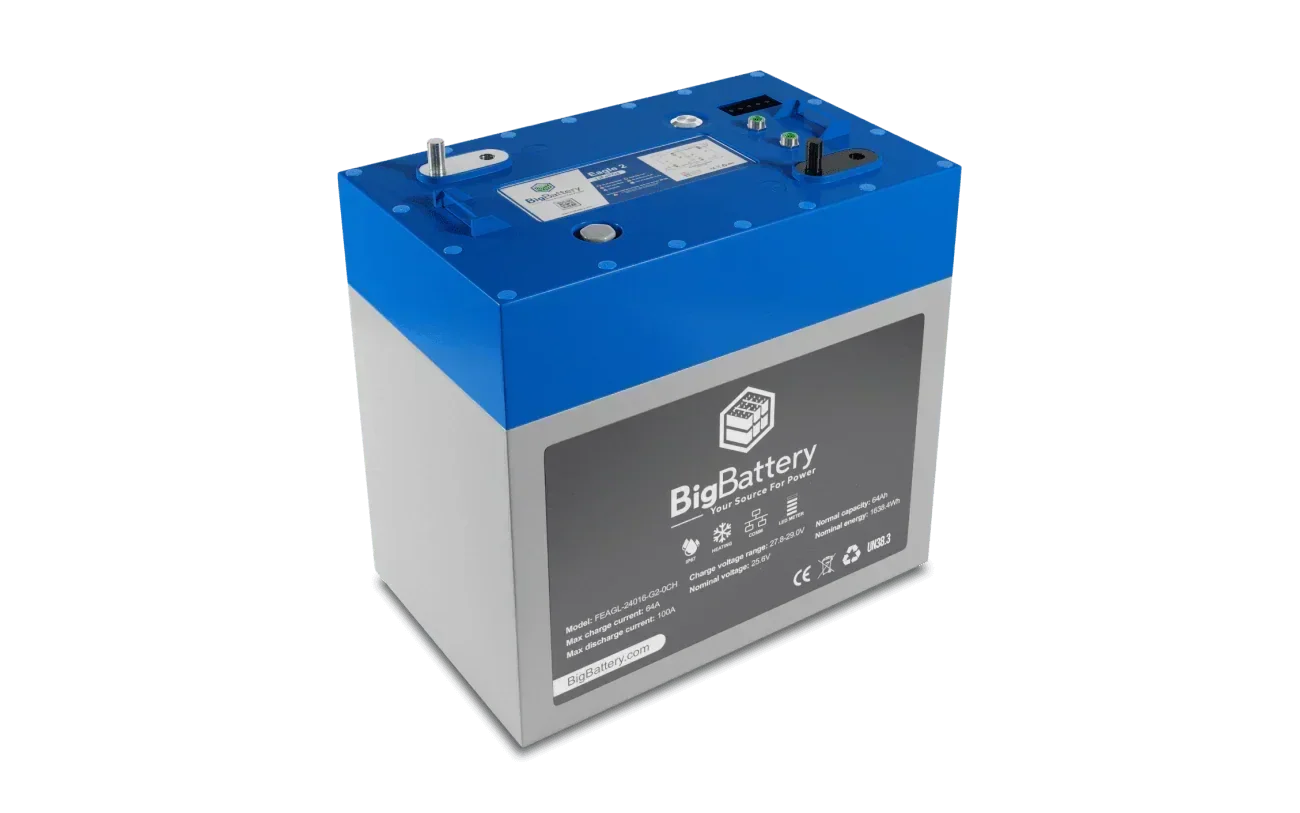

BigBattery 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh Lithium Battery
BigBattery 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh
2ND GENERATION POWER TAKES FLIGHT! Introducing BigBattery’s all-new 24V 1.63 kWh LiFePO4 EAGLE 2. This battery embodies the reliability and durability you’ve come to expect from BigBattery solutions, packing Tier 1 LFP cells in a compact, GC2 form factor. This energy-dense design allows for effortless installations in your RVs, camper vans, scissor lifts, or other industrial equipment, and the EAGLE 2 serves as a mirror-image replacement for any stock T-105 lead-acid battery.
But the EAGLE 2 provides so much more than efficient, long-lasting lithium power storage. This battery comes standard with advanced features that enhance the safety and visibility of your power. Not only does the EAGLE 2 come equipped with a LED capacity meter on the top of the unit, but also supports CANBus communication protocols, so you can always monitor the status and performance of your battery system. Plus, the EAGLE 2 is IP67-rated for comprehensive protection against dust, water, and other contaminants while you’re cruising around the campsite or warehouse.
But that’s not all. The EAGLE 2 was designed to support your applications through every season. Whether you’re going boondocking in the heat of summer, or working at the warehouse or job site in the dead of winter, the EAGLE 2’s advanced BMS supports a wide temperature operating range, and a self-heating function ensures that you never have to put your vacation or work day on pause due to unreliable power. Quit worrying about your power and get back to working hard and playing harder when you equip your vehicle with the all-new EAGLE 2 from BigBattery. Shop the 24V EAGLE 2 & EAGLE 2 Kits today!
Included Free in Box:
(1) Eagle 2 Carrying Handle
(1) Eagle 2 CAN Comm Cable
(1) Parallel CAN Comm Cable
(2) M8 Nuts & Screws
Product Specifications
BigBattery 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh Product Specifications
| SKU: | FEAGL-24016-G2-0CH |
| System Voltage: | 24V |
| Nominal Voltage: | 25.6V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 1.63kWh |
| Ah Capacity: | 64Ah |
| Charging Voltage Range: | 27.8 - 29V |
| Max Charge Voltage: | 29.2V |
| Operating Voltage Range: | 24 - 28.8V |
| Suggested Low Voltage Cutoff: | 24 - 25.4V |
| BMS Cutoff Range: | 21 - 23.5V |
| Cell Configuration: | 8S |
| Max Continuous Discharge Current: | 100A |
| Max Continuous Power: | 2560W |
| Max Discharge Peak Current: | 200A (Max 5 seconds) |
| Max Charge Current: | 64A |
| Charge Temperature Range: | -4°F - 131°F (-20°C - 55°C) |
| Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range: | 23°F - 95°F (-5°C - 35°C) (Max 3 months) 32°F - 77°F (0°C - 25°C) (Max 12 months) |
| Weight: | 33 lb (15 kg) |
| Depth: | 7.1 in (180 mm) |
| Width: | 10.24 in (260 mm) |
| Height: | 9.8 in (249 mm) |
| Max Connections: | Up to (10) Parallel |
| Protection Rating: | IP67 |
| Communications: | CANBus |
| Self-Heating: | Yes |
| Spec Sheet Download: | Click Here |
Product Manual
N/A
Product Warranty & Return Policy
BigBattery Warranty
In the unlikely event you are having an issue with one of our batteries, we have developed a
straightforward Warranty & Return Policy servicing all customers in the USA:
-
Real (10) Year Warranty
All our batteries come with a 10-Year Full Repair/Replacement Warranty. If our batteries malfunction
due to component or manufacturing error, the product will be repaired or replaced free of charge. -
Free Repair & Replacement
All batteries are built to last a minimum of 10 years. We stand by the quality of our batteries. If any parts within our battery fail due to defects or manufacturing error within the next 10 years, we will fix or replace your battery free of charge. In addition, for the first year of the warranty we will even cover all shipping costs from/to your purchase address within the continental US.
-
Highest Quality Guarantee
BigBattery utilizes Tier 1 cells to provide the highest quality lithium battery packs in the USA. Depending on the model, use case and environment, your battery is designed to last between 3,500 – 8,000 cycles when used as intended within our published battery specifications.
-
Covered Products
This Warranty covers all battery packs from the “Date Of Purchase” from BigBattery for 10 years and
all accessories included for 30 Days. -
Automated Warranty Registration
No warranty registration is needed. Warranties are automatically recorded via an internal customer
database via serial number and QR code. -
Product Manuals & Specification Sheets
BigBattery provides a proprietary QR code on every battery. Scan this QR code with any phone to view
the Product Manual and Product Spec Sheet for your specific battery model. Providing these documents
to you in a digital format helps to protect our environment and provides you the most updated information
on your product in real time. -
Domestic Warranty Claim Support
To start a warranty claim, please email us directly at [email protected] to create a ticket. Include a written description of the problem and pictures if possible. Upon receipt, our Tech Support team will reach out to you within 24 – 48 hours to troubleshoot. If the battery has been purchased within a year if the issue being reported to BigBattery, you will be sent a Return Shipping Label at no cost. After the first year, you will have the option to pay for the shipping, or arrange your own shipping back to BigBattery. If the label is provided by BigBattery, please include a copy of this label in the return box or pallet when our 3rd party logistics provider arrives to pickup your return. All returns will be inspected prior to repair, replacement, or reimbursement, depending on the circumstances of return and availability of similar items. For detailed instructions, please review our Warranty Repair/Replacement Services section below.
-
Returning Accessories
This Warranty includes a 30-Day replacement for all accessories (Anderson connectors, wiring, chargers, etc.)
included with your battery. If product is not defective or damaged upon return, refunds will be offered based on
the purchase price of the unit minus a 20% restocking fee. -
Change Your Mind
That’s OK! All our batteries come with a 30-Day money back guarantee. Returns will be subject to a 20% restocking
fee. Call or email customer service for a free shipping return label. -
Return Hazmat Fee
Due to the shipping regulations of lithium batteries, please note that some battery returns may require special
documentation and packaging, and these instances could encounter extra fees if a customer is attempting to
return a battery not covered by our Repair and Replacement Policy. -
Battery Abuse Disclaimer
This warranty does not cover damages resulting from misuse, abuse, accidents, alterations, or improper charging/
installation of our product. Please scan the QR code on your battery and read the Manual prior to installation and
charging. DIY modifications or damage due to gross negligence or abuse will void your Warranty. -
Fraud Protection
Repair, replacement, and refunds for your purchase will only be possible after your returned battery
has been received and fully inspected at our facility. -
Limitation of Damages
In no event shall BigBattery, Inc. be liable for consequential damages due to breach of this Warranty.
-
Customer Satisfaction
If buyers are not satisfied for any reason after speaking with Level 3 Tech Support and/or our Customer Service team,
all original buyers may escalate dispute resolutions to our CTO for review. We aim to put our customers first, resolve
any issues, and ensure that all customers are happy with their purchase from BigBattery.
Rev. March 2023
Warranty Details
10-Year Repair/Replacement Warranty Coverage Details: BigBattery, Inc. warrants the covered product to be free of all defects in material and workmanship for 10 years from the auto-registered date of purchase. This Warranty extends to the original buyer for the duration of 10 years.
All BigBattery batteries are designed to operate for a minimum of 10 years and require zero maintenance. Some BigBattery batteries can last up to 22 years depending on model, use case, and environmental variables.
BigBattery batteries are also guaranteed to hold a reasonable amount of capacity based on the time in service (see exclusion for details on limits). In the case of a diminished capacity claim, the customer has the option to return the battery to BigBattery for capacity testing. The battery will be fully bench tested to resolve the claim and a relevant full cycle test report will be provided to the customer. If the customer is deemed to be correct and the battery is diminished beyond the limits specified in the exclusion section, then the battery will be eligible for warranty resolution. The customer will not be responsible for the costs associated with testing regardless of the test results.
Within our 10-Year Warranty, BigBattery, Inc. will repair or replace, free of charge, any part proving defective in material or workmanship. All warranty repairs and service must be performed by an authorized BigBattery, Inc. technician, or at an authorized BigBattery, Inc. service facility (unless directed otherwise in writing by a BigBattery employee).
For the first year, the expenses related to returning and repairing a defective part assumed by BigBattery, Inc. within the Continental US include pickup, return shipping, repair, replacement and final shipping. This Warranty does not assume responsibility for disconnection, service interruption, or re-packing expenses per said return shipment. Customers with international warranty claims will need to cover the cost of shipping.
Warranty Exclusions
This warranty does not apply to any costs, repairs, or services for the following:
- On-site service calls from 3rd party.
- Damage resulting from misuse, abuse, accidents, alterations, use other than intended application, collision,
dropping, or improper installation. - Product was used out of specification, or undersized for the application.
- Environmental damage, including caustic substances, salty, or outdoor exposure unless the battery is specifically
indicated to be for outdoor use on the Product Label or in the Specification Sheet or the Product Manual. - Claims of diminished capacity of less than 12% in the first 5 years, or 25% from year 6 to the 10 year warranty period.
- Corrective work necessitated by repairs made by anyone other than a BigBattery, authorized service technician
– if not previously advised by BigBattery Tech Support. - Battery that has not been charged over a six month Batteries need to be charged regularly to maximize and
maintain lifespan. - Warranty will be void if battery is opened, disassembled, or improperly altered, unless explicitly directed by
BigBattery for technical support.
Legal
This warranty shall be governed by and interpreted in accordance with the laws of the state of California. No employee or
representative of the manufacturer is authorized to provide any warranty in addition to those made in this agreement.
Rev. April 2023
Shipping Policy
Double-Check Your Address
To ensure that your package is properly delivered and that you receive your package within the time frames we advertise, please
make sure that your address is correctly entered and includes all relevant and/or required information. The use of correct
abbreviations, street numbers, building or apartment numbers, and route information (if applicable) is critical for ensuring
timely delivery. We do not take responsibility for lost, misplaced, or incorrectly delivered shipments if the address information
provided is incorrect or incorrectly entered at the time of purchase.
Per International Shipments
For international shipments, we do not ship to areas outside of the continental United States. If buyers wish to purchase our
products in the USA for use in another country, they are responsible for arranging their own shipping from our facility in Chatsworth,
CA to their end destination where the goods will be imported on behalf of the consignee/buyer. The consignee will pay the taxes &
duties in addition with the purchase price of the goods.
Processing Time
After your payment is authorized and verified, standard online orders will take an estimated 7 – 14 business days to process and
ship from our US facilities. When picked up by our logistics providers, these orders are subject to processing time(s) from said
logistics provider that depend on a number of factors. Standard domestic orders in the continental United States are projected to
take 7 – 14 business days to deliver. Depending on your geographic location in the United States, you should expect to receive your
purchase from BigBattery.com at your provided address within 14 – 28 business days, excluding holidays. For more information,
please check your email and use the tracking number pro- vided upon release from our US-based manufacturing facility.
Shipping Rates & Timelines
Please note that orders may take 7 – 14 business days from the date that it is picked up from our US- based manufacturing facility,
NOT from the date that it is placed. This will depend on the shipping method selected at checkout and final geographic destination
of the order. When your order has been shipped from our facility, you will receive an email with tracking information. Alternative
carriers may be selected at our sole discretion to meet shipping requirements. Your final shipping cost is displayed at the point
of checkout on our website. For wholesale orders, logistic costs can be found on your invoice. Please contact your assigned B2B
representative for any updates required.
Shipping Fees
Shipping fees are non-refundable. If you refuse any shipments from BigBattery, Inc., you will be held responsible for the original
shipping charges, plus the costs associated for reverse logistics. This amount will be deducted from any credit issued.
Delivery Claims
If you are experiencing a non-delivery or your tracking information states that your package was delivered by the carrier but you
have not received it; you MUST contact us within 10 days to file a claim. We will assist you in working with the carrier to complete
the claims process and track down the order. Please note that claims can take up to 30 days to complete (depending on the
shipping carrier used). BigBattery does not hold or accept responsibility for packages that have been reported as delivered by the
carrier. We do not issue refunds or credits for packages that the carrier confirms as being delivered.
Out Of Stock Items
If your order includes multiple items and one (or more) of the items are out of stock, we will attempt to notify you, then ship the rest
of your order, issuing a refund to your original form of payment for the item(s) not in stock.
End-of-Life Policy
BigBattery offers free recycling of all our lithium batteries!
Traditional battery recycling has not always been an easy process. People have often been forced to find a certified recycler and then pay for expensive shipping.
BigBattery seeks to remedy this problem.
Currently, BigBattery is the only US battery manufacturer that offers free recycling at the end-of-life of all our products. We are willing to help our customers ship
our products back to our facilities and will recycle them at no extra charge to our customers.
We maintain a Zero Landfill Policy and have partnered with certified recyclers to make sure these bat- teries don’t end up in landfills.
Product FAQs
BigBattery Frequently Ask Questions
Q1. Can your batteries be used in series?
A1. We no longer offer our batteries for use in series.
Q2. Do your batteries have a thermal management system?
A2. All of our batteries have a thermal management system that is controlled by the BMS (Battery Management System). This Thermal management system will not only prevent the battery from being used if the temperature is too high, but also if the temperature is also too low.
Upgraded Charger:
- Charging Current: 15A
- Input Voltage: 110V / 220V
- Output Voltage: 58.8v
- Charging Time: 5 h (approx)
- On-Board Charger: Yes
- Protection: IP65
12A Charger:
- Charging Current: 12A
- Input Voltage: 110 / 22V
- Output Voltage: 45V,50.4V,58.8V
- Charging Time: 6.5 h (approx)
- On-Board Charger: No
- Protection: IP50
