BigBattery 24V HUSKY 2 INV Lithium Battery 5.12kWh 200Ah | LiFePO4 | Inverter Comms | RV | Off-Grid | Marine Battery

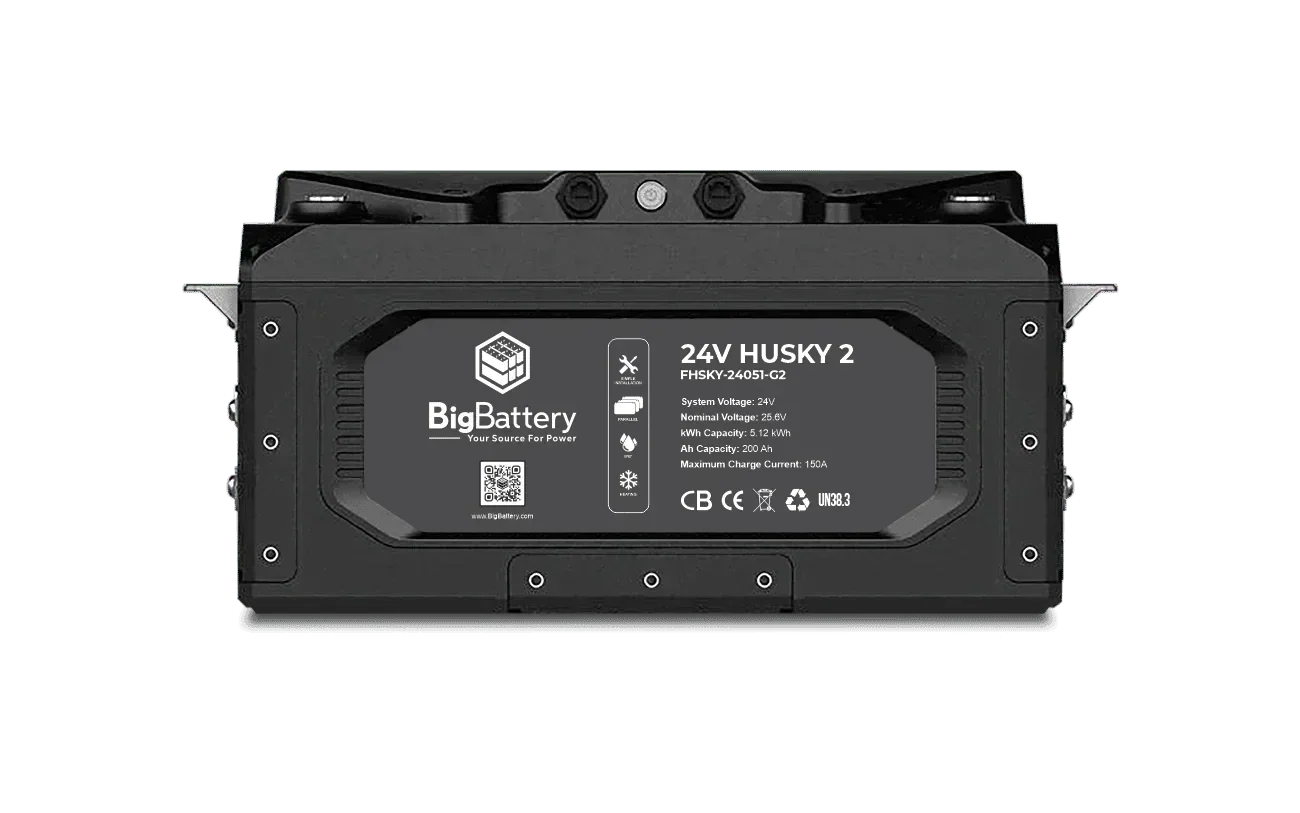

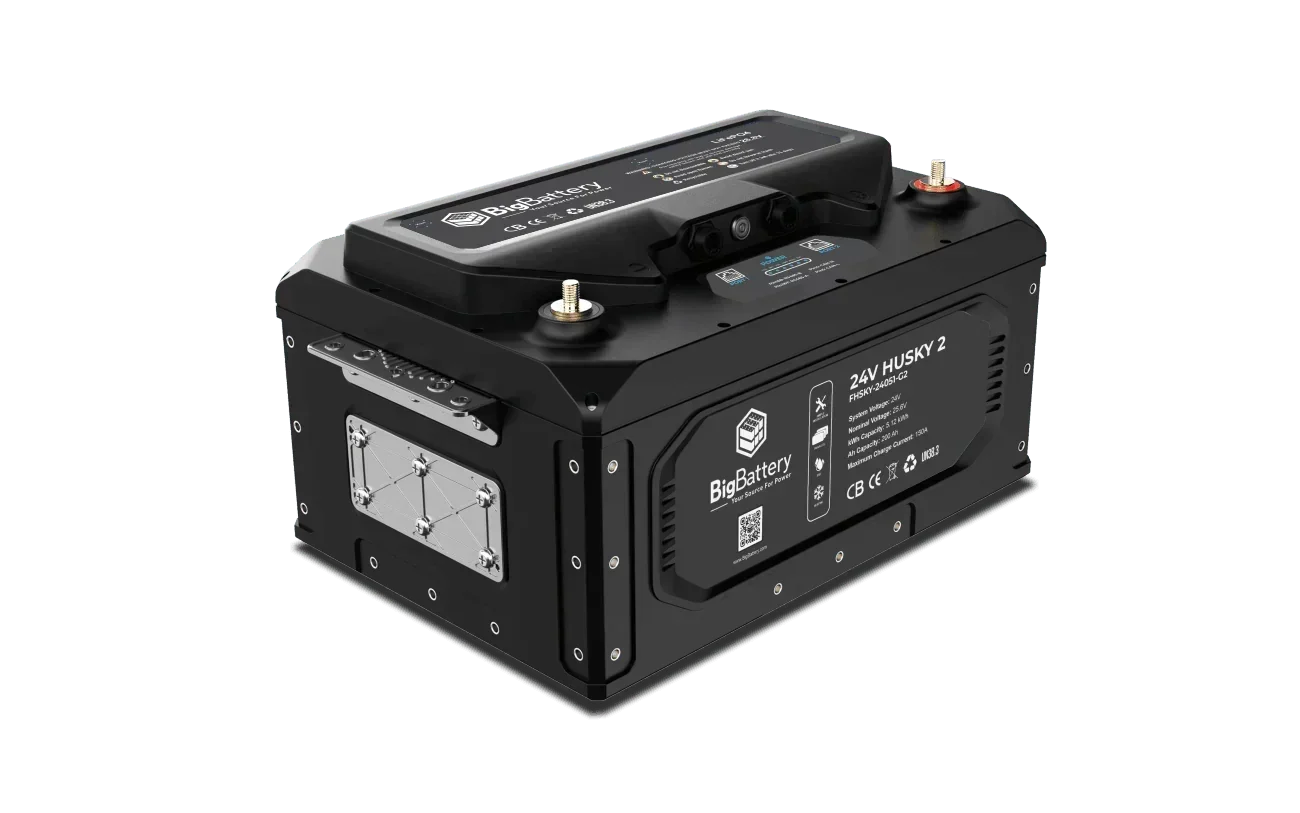

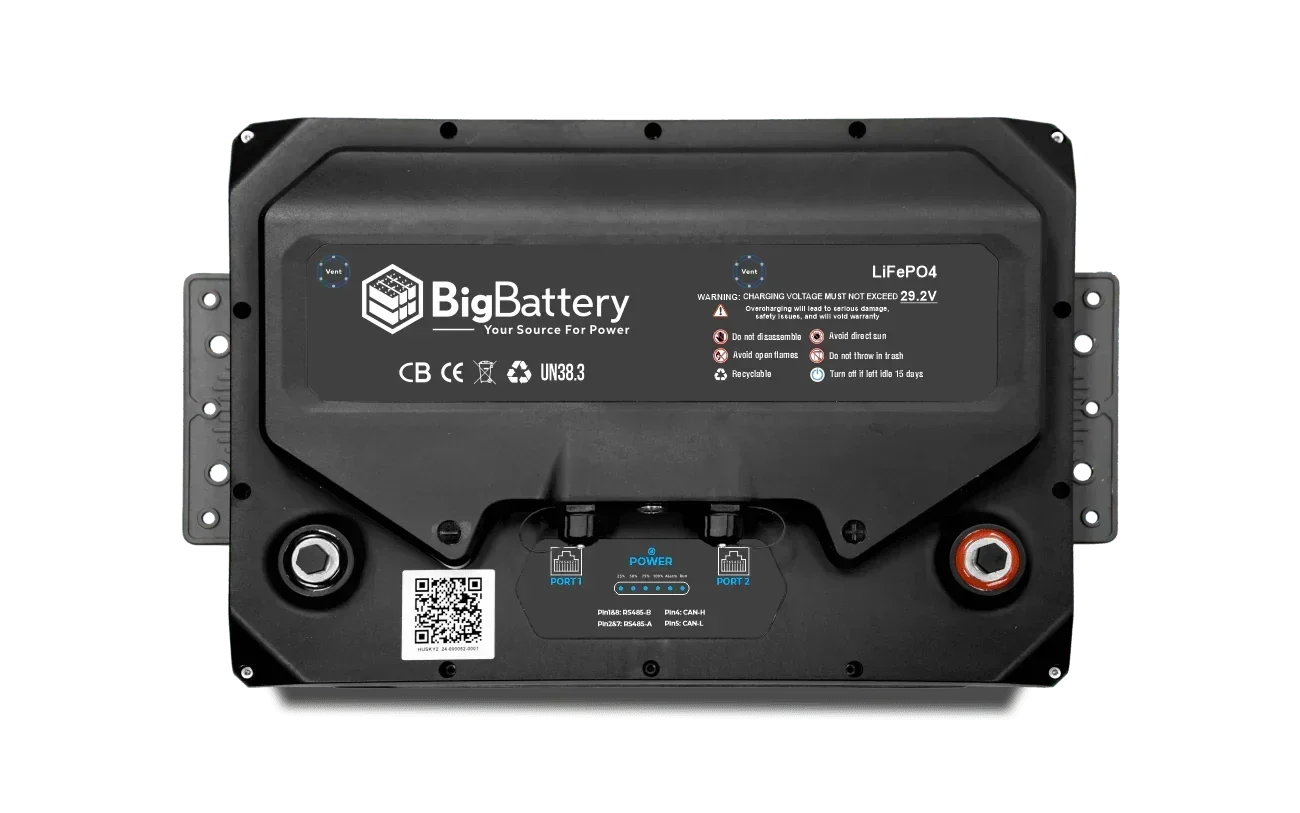

BigBattery 24V HUSKY 2 – LiFePO4 – 200Ah – 5.12kWh Lithium Battery

SECOND GENERATION POWER STORAGE IS HERE! The 24V 5.12 kWh LiFePO4 HUSKY 2 is the latest and greatest from BigBattery, providing unmatched reliability and efficiency in your RV & Van applications.

This battery is our most energy-dense 24V solution to date, designed to power your adventures no matter how far they take you. From its Tier 1 LFP cells to its generous operating parameters and wide temperature range, this battery redefines versatility and durability when it comes to lithium power storage. But that’s not all!

The HUSKY 2 comes with state-of-the-art features to enhance the safety and visibility of your power. Not only is it housed in an IP65-rated casing, and equipped with an advanced BMS capable of auto-balancing cells, but it also boasts a self-heating function to ensure you have reliable power through every winter excursion. Plus, the HUSKY 2 features full CANBus & RS485 communication protocols, so you can always monitor the status of your power.

Equipped with the HUSKY 2, you’ll be powered and prepared to hit the road worry-free every time. Shop the all-new 24V HUSKY 2 today!

Designed For 24V Applications

• LEAD ACID REPLACEMENT
• INTENSE HEAT & COLD
• CLASS A, B, & C RVs
• CAMPER VANS
• COMMERCIAL VEHICLES
• FOOD TRUCKS
• EMERGENCY BACKUP
• COMPACT STORAGE

Product Specifications

BigBattery 24V HUSKY 2 – LiFePO4 – 200Ah – 5.12kWh Lithium Battery Product Specifications

System Voltage:	24V
Nominal Voltage:	25.6V
Chemistry:	LiFePO4
kWh Capacity:	5.12kWh
Ah Capacity:	200Ah
Charging Voltage Range:	27.8 - 28V
Max Charge Voltage:	29.2V
Operating Voltage Range:	24 – 28.8V
Suggested Low Voltage Cutoff:	24 – 25.4V
BMS Cutoff Range:	21 – 23.5V
Cell Configuration:	8S
Max Continuous Discharge Current:	200A
Max Continuous Power:	5120W
Max Discharge Peak Current:	300A (Max 5 seconds)
Max Charge Current:	150A
Charge Temperature Range:	-4°F - 113°F (-20°C - 45°C)
Discharge Temperature Range:	-4°F - 131°F (-20°C - 55°C)
Optimal Discharge Temperature Range:	59°F - 95°F (15°C - 35°C)
Storage Temperature Range:	-4°F - 113°F (-20°C - 45°C) (Max 6 months)
Weight:	95 lb (43.1 kg)
Depth:	12.6 in (320 mm)
Width:	18.1 in (460 mm)
Height:	9.8 in (249 mm)
Max Connections:	Up to (16) Parallel
Protection Rating:	IP65
Communications:	CANBus / RS485
Self-Heating:	Yes
Spec Sheet Download:	Click Here
Safety Data Sheet Download:	Click Here



Product Manual

N/A
