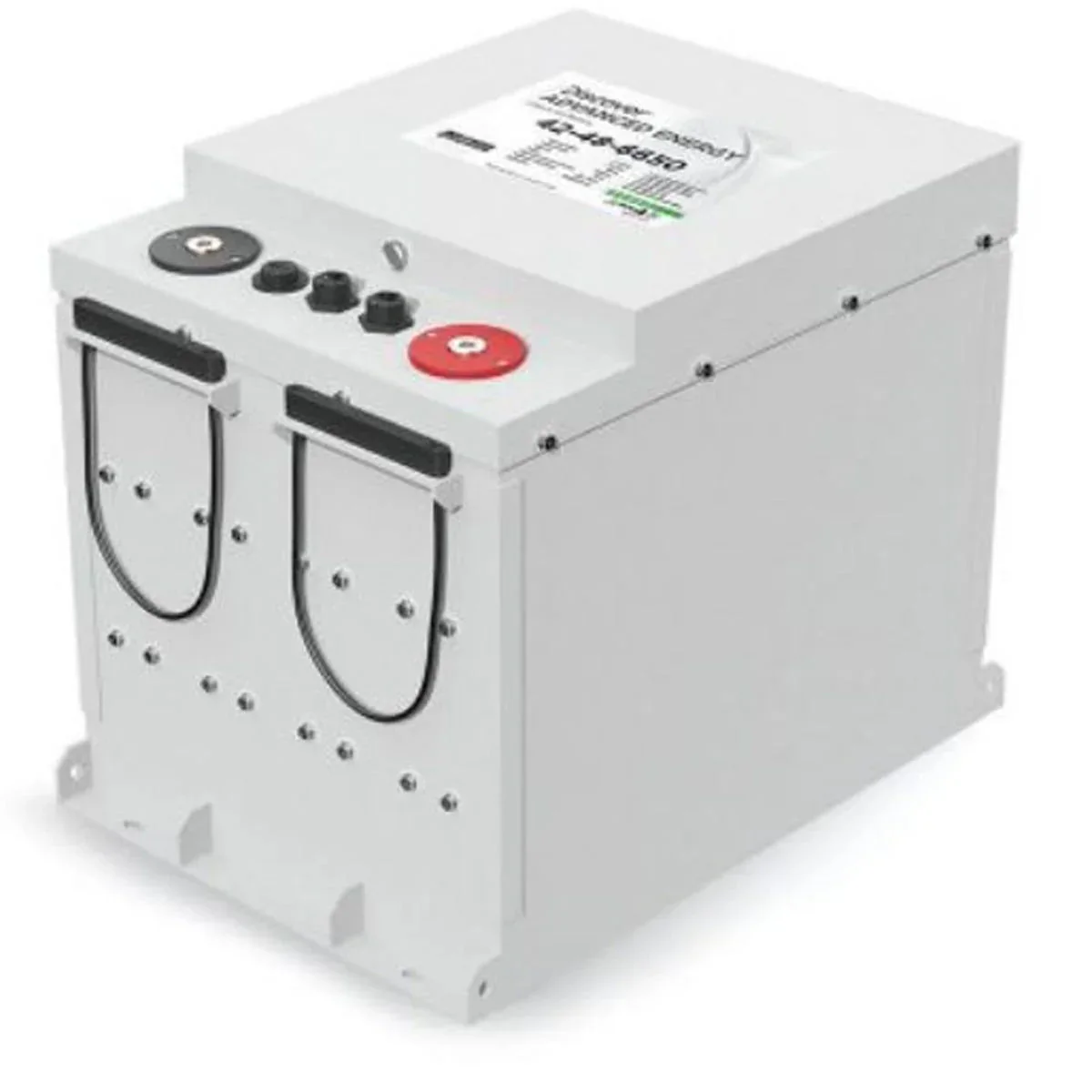

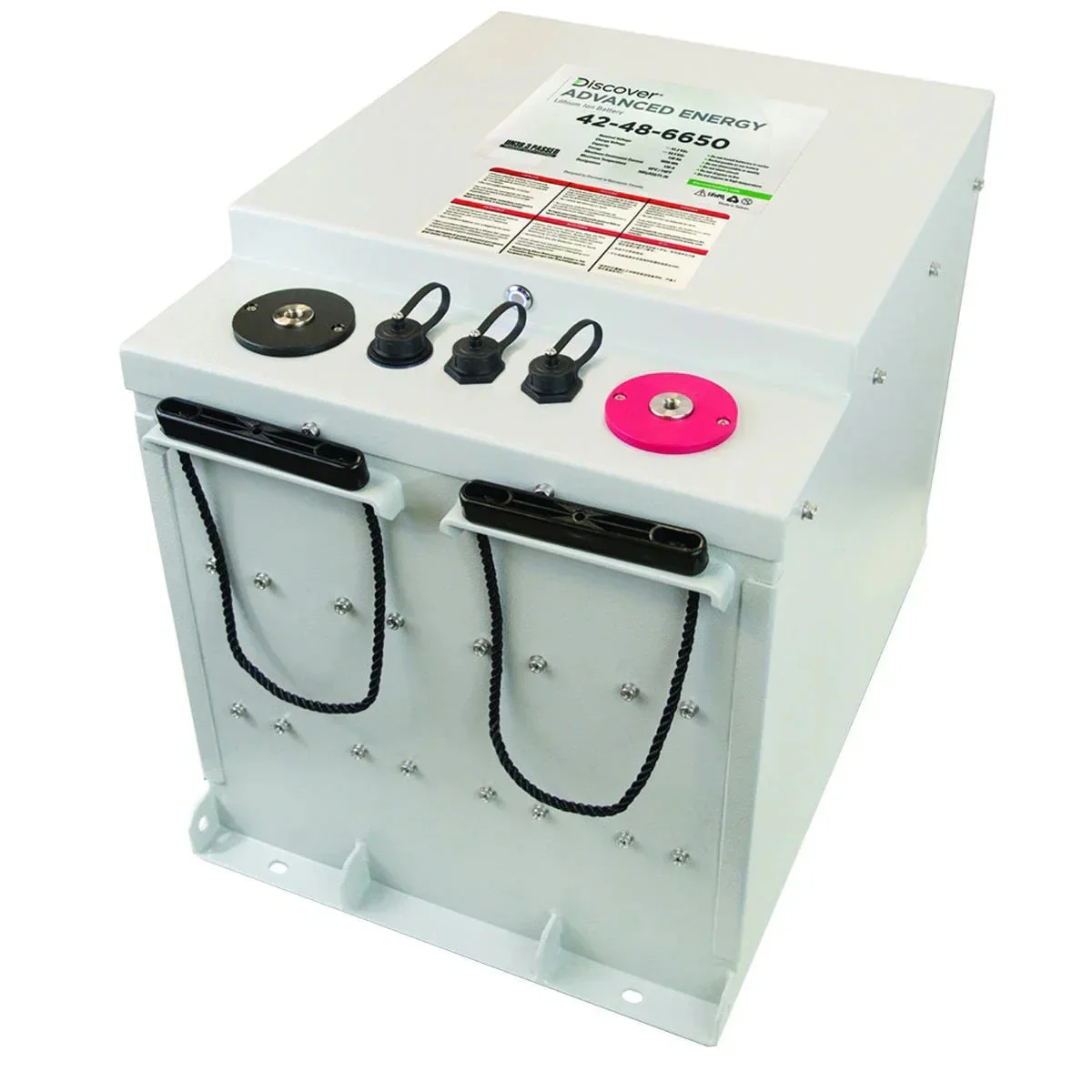

Discover AES 7.4kWh 48VDC Lithium Ion LiFePO4 Battery with Xanbus

Discover Advanced Energy System (AES) LiFePO4 batteries allow for equipment design, functionality improvements and deliver productivity gains through enhanced cycling. Improved charge time and weight reductions in stationary and mobile applications. Dramatic improvements in cycle life and charge efficiency combined with zero maintenance requirements provide the end user with significant cost of ownership savings.

FEATURES

LYNK PORT

• Connects battery string to LYNK Gateway
• Multi-battery BMS communication

HIGH-CURRENT BMS

• Field serviceable BMS and fuse protection
• Plug and Play system wide BMS communication
• Sets Voltage, broadcasts SoC and temperature

AES DASHBOARD

• Battery diagnostic software for PC
• Data export kWh, fault logs to PC
• Update battery BMS firmware

ACCESSORIES

LYNK SOLAR GATEWAY

• Integrated closed-loop communications with the world's best inverter chargers
• Plug and play charger configuration

BENEFITS

ENHANCED RUNTIME

• Double the high-current runtime of lead-acid battery
• Up to 100% usable capacity
• Up to 100% depth of discharge

EXTENDED SERVICE LIFE

• 10x the life of lead-acid battery {BCl-06)
• Unlimited Partial State of Charge cycles
• 10-year energy throughput warranty

FAST CHARGING

• Up to 5x faster than new lead-acid batteries
• Up to 10x faster than aged lead-acid batteries
• 2X faster charging than C/2 Rated lithium batteries
• 1 C continuous charge rate, regardless of SoC

SURGE POWER

• Power for off-grid inverter surge demands
• Up to 3C peak power discharge rate
• 1 C continuous discharge rate

HIGH-EFFICIENCY

• Up to 50% more energy efficient than a lead-acid battery
• Up to 98% round-trip efficiency

DYNAMIC PERFORMANCE

• Real-time optimization of the charge rate
• Faster recharge from 0% to 100% SoC than lead-acid
• battery

PARALLEL POWER

• Easy to parallel more capacity
• Linear scaling of charge, discharge and peak capacity
• Parallel up to 20 batteries or 160 kWh per LYNK device

QUICK INSTALL

• Fast installation. No special tools
• Drop-in lead-acid replacement

RELIABLE AND SAFE

• UFeP04 is thermally safe
• Maintenance-free
• Steel case and cover
• IP 55 rated

CERTIFIED QUALITY

• Discover manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.

CERTIFICATION STANDARDS

• IEC 62133
• UL 1973
• UL 9540
• UL 2271
• CE
• UN 38.3
