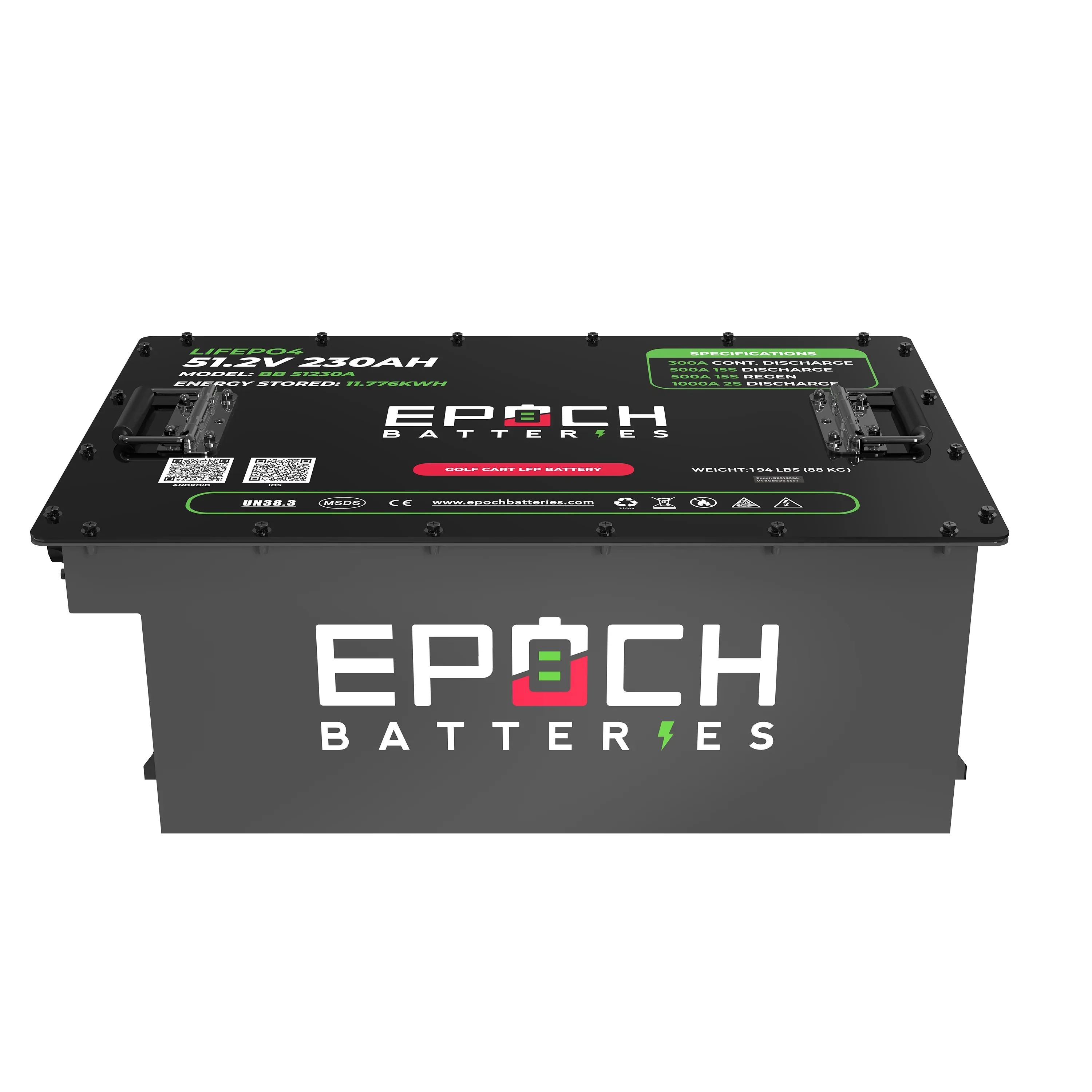

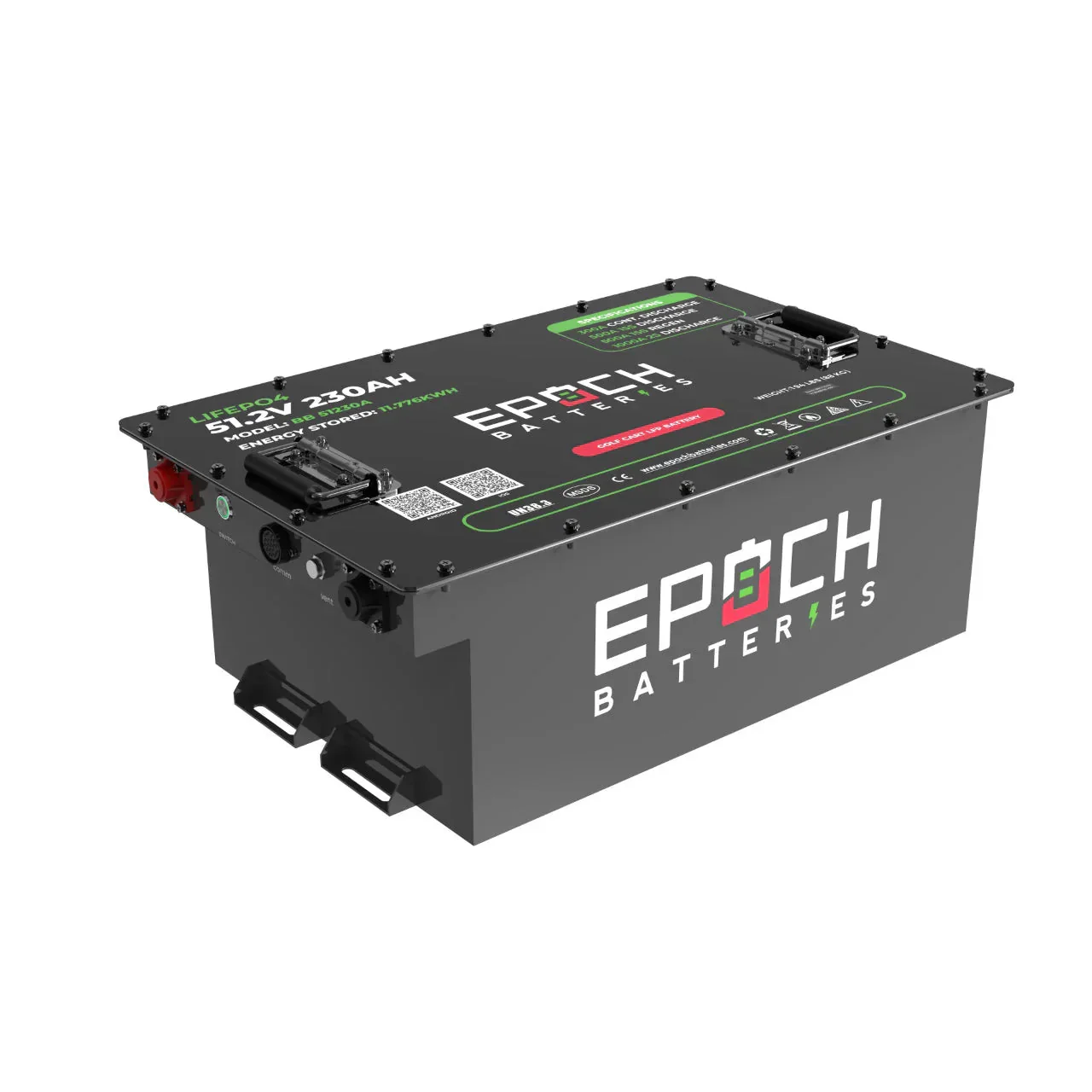

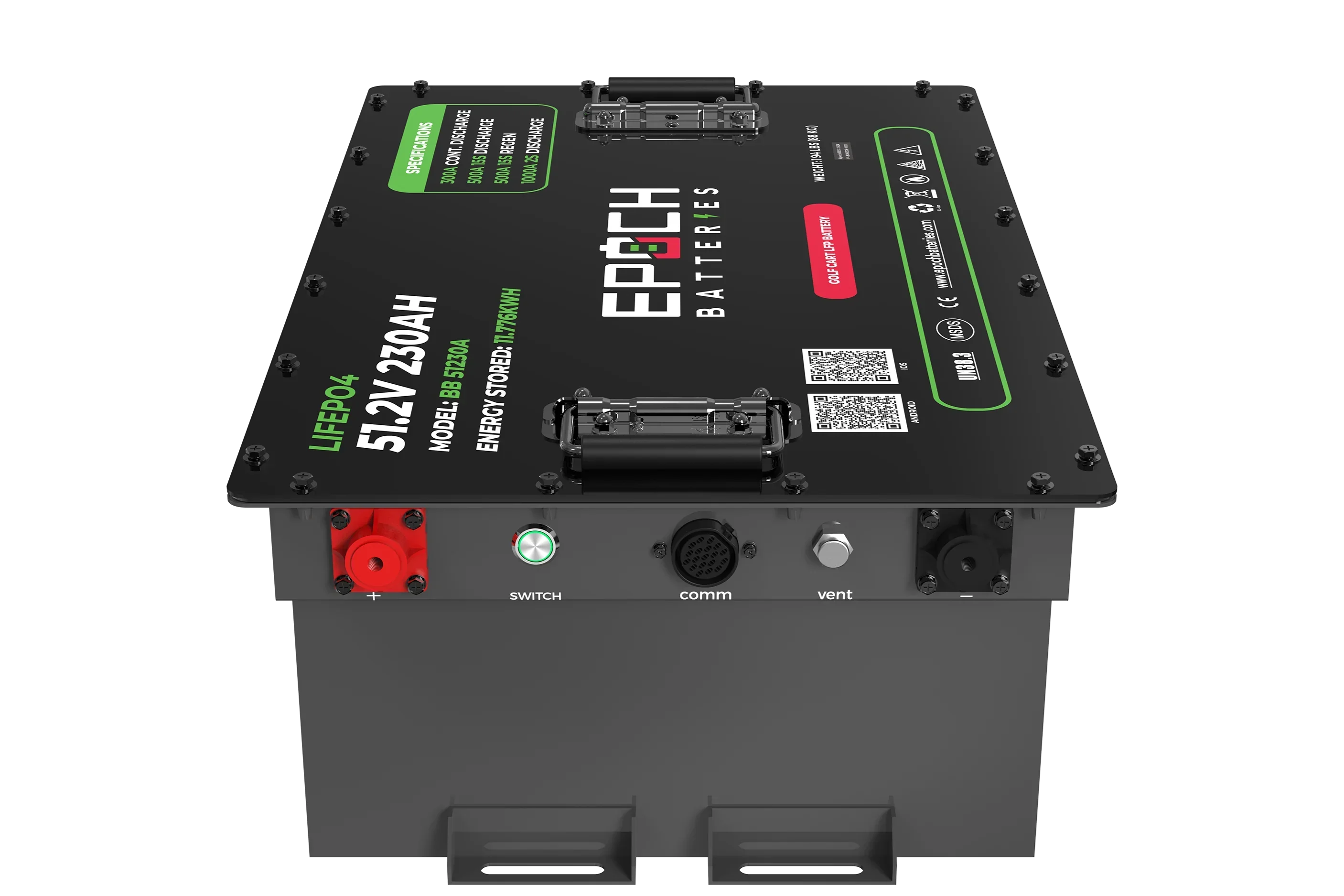

Epoch Batteries 48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Epoch Batteries 48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

• Complete Lithium Conversion Kit

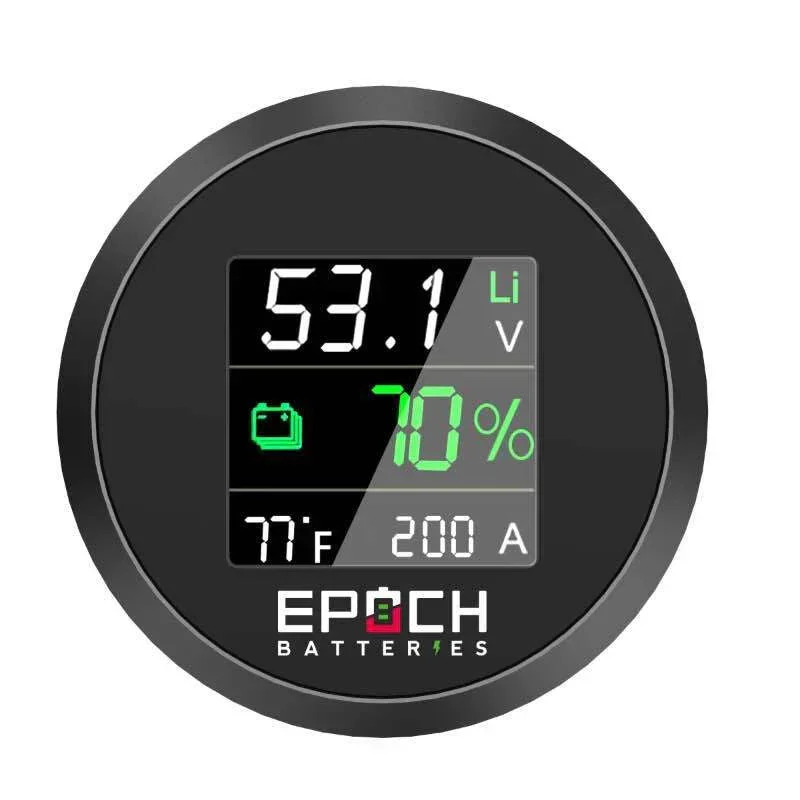

• 48V 22A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

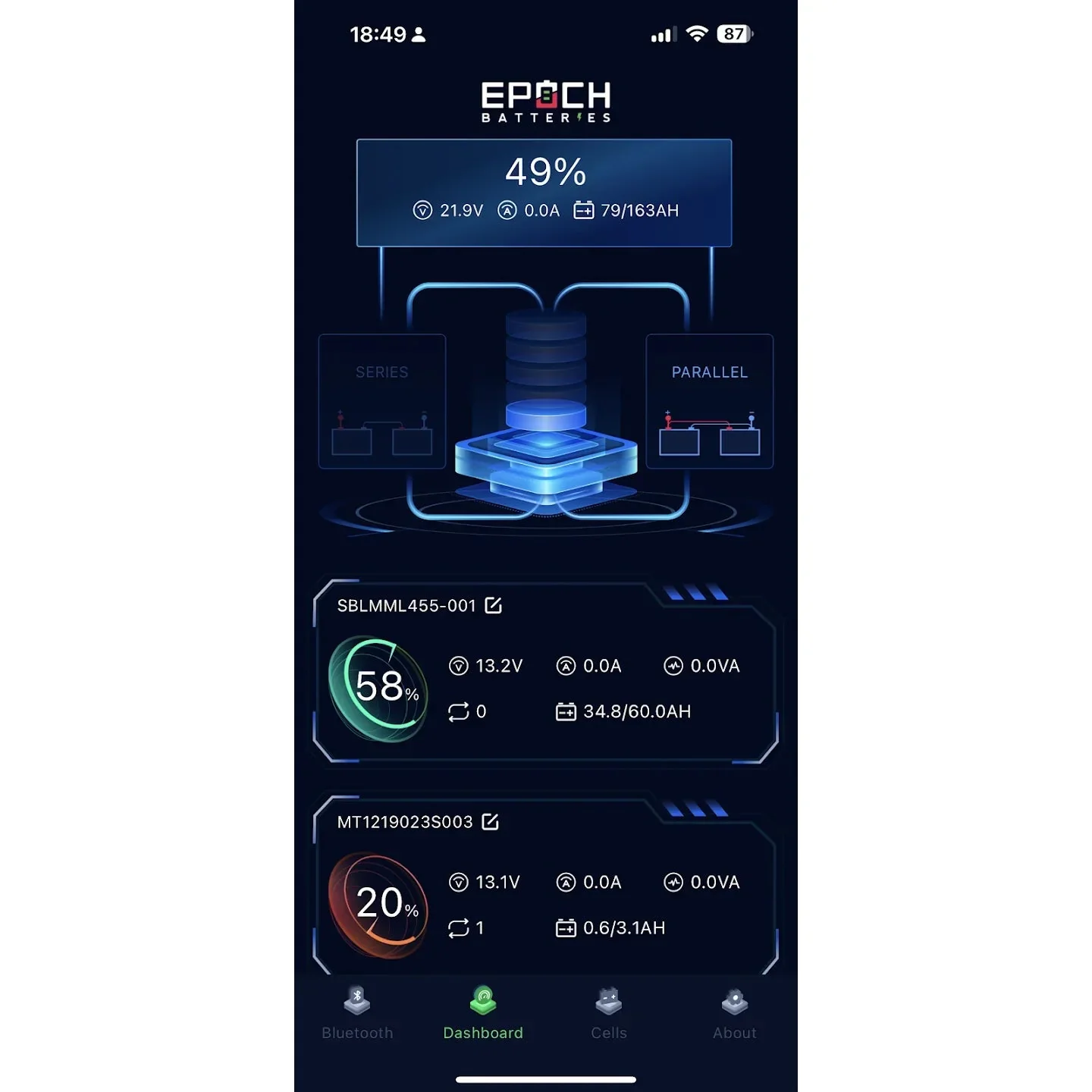

• Bluetooth App (iOS & Android)
• Over the air firmware updates available
• 300A Max Continuous Discharge
• 500A @ 15s, 1,000A @ 2s Peak Discharge
• 230A Max Continuous Charge
• 500A @ 15s Peak Charge/Regen
• 4,000 Cycle Life
• 11 Year Warranty

Configuration

Cell Configuration: 1P16S

Chemistry: LiFePO4

 Current

Ah Capacity: 230Ah

Max Continuous Discharge Amps: 300A

Max Charge Current Amps: 230A Continuous, 500A @ 15s

Max Discharge Peak Current Amps: 500A @ 15s, 1,000A @ 2s

Series | Parallel: Max (2) in Parallel

 Voltage

Voltage: 51.2V

Max Charge Voltage: 58.4V

Operating Voltage Range: 40 - 58.4V

 Temperature

Charge Temp Range: 0°C (32°F) / 55°C (131°F)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight: 196 (LBS)

Dimensions

Length: 23.5 (inches)

Width: 14.4 (inches)

Height: 9.9 (inches)

Material Safety Data Sheet

Specification Sheet
