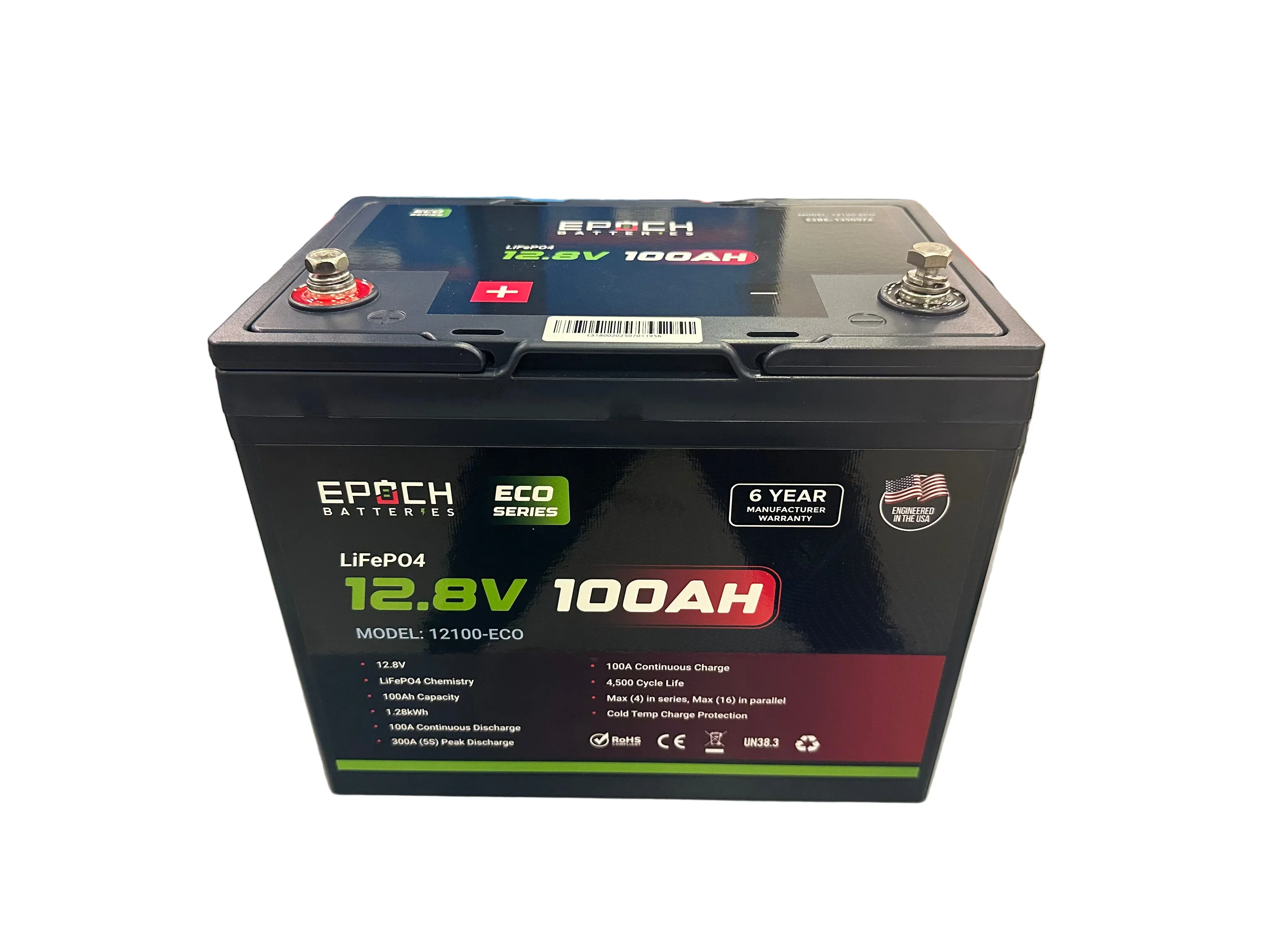

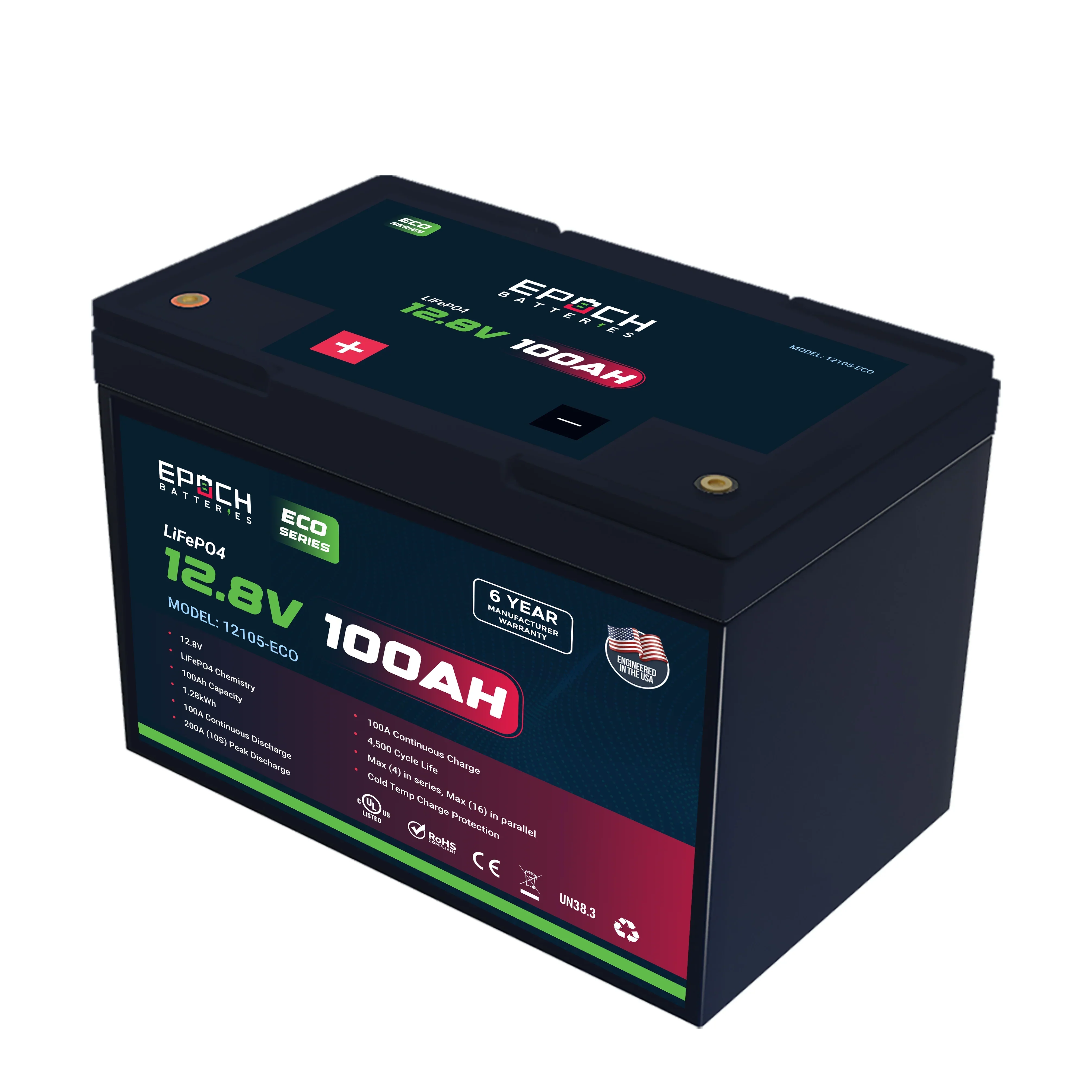

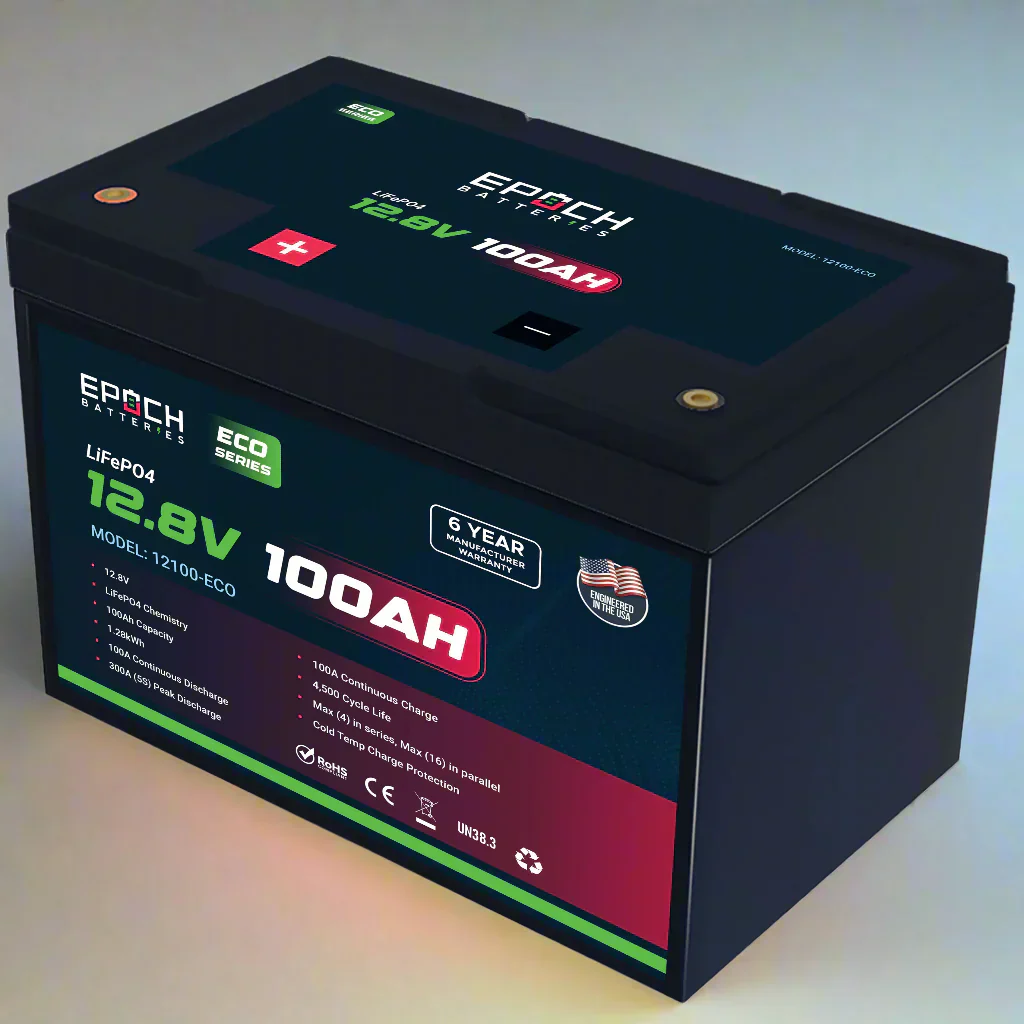

Epoch Batteries 12V 100Ah (1.28kWh) - Eco Series LiFePO4 Battery

Epoch Batteries 12V 100Ah (1.28kWh) - Eco Series LiFePO4 Battery

Description:

• LiFePO4 Chemistry - Deep Cycle Battery
• Group 24: L10.25" x W6.75" x H9.00"
• Low-Temperature cut-off (Charge Protection)
• Built-in Smart Battery Management System (BMS)
• Advanced BMS system with 20+ safety features built in
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• Max (4) in Series up to 48V
• Max (16) in Parallel up to 20.48 kWh
• 4,500+ Cycle life & Maintenance-free
• 6 Year Manufacturer Warranty

Overview

• IP 54 Weatherproof
• 4500+ Cycles
• Advanced BMS
• Safe & Reliable

Specifications:

Temperature

Charge Temp Range: 0°C (32°F) / 55°C (131°F)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Weights & Dimensions:

Weight: 21 (LBS)

Dimensions

Length: 10.25 (inches)

Width: 6.75 (inches)

Height: 9 (inches)

Recommended Charging Settings:

Maximum Continuous Charge Current: 250A

Bulk/Absorption: 14.2V-14.4V

Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max

Float Voltage: Disabled (preferred) or 13.3V-13.6V

Re-bulk: 13.2V

Temperature Compensation: 0 mV/°C (none)

Equalization: Disabled

Battery Charge Temperature Range: 0°C (32°F) / 55°C (131°F)

BMS High Voltage Cutoff: 14.6V

SoC Recalibration: 14.6V

Downloadable Resources:

Data SheetQuick Spec Sheet

Safety Data SheetSDS
