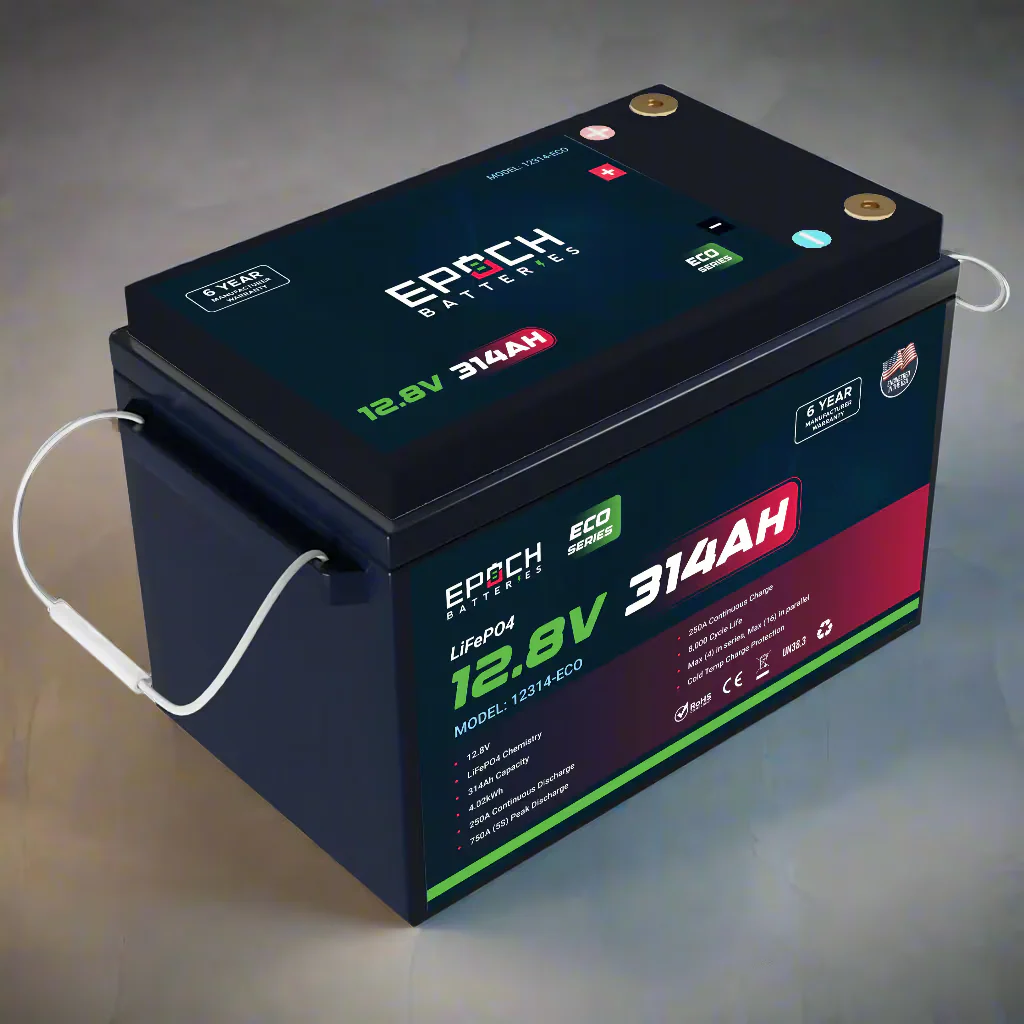

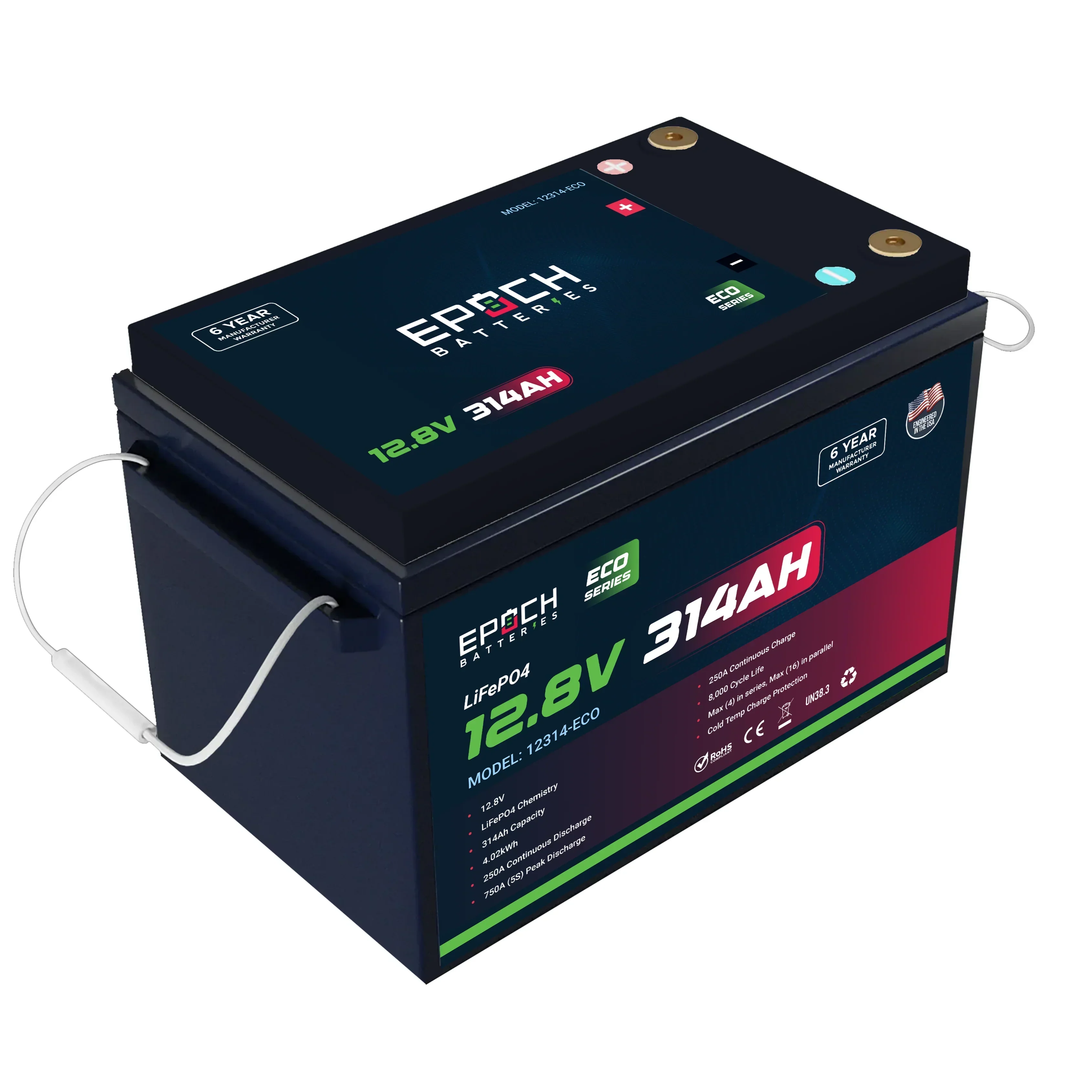

Epoch Batteries 12V 314Ah (4.02kWh) - Eco Series LiFePO4 Battery
Epoch Batteries 12V 314Ah (4.02kWh) - Eco Series LiFePO4 Battery
Â
- LiFePO4 Chemistry - Deep Cycle Battery
- Group 24: L10.25" x W6.75" x H9.00"
- Low-Temperature cut-off (Charge Protection)
- Built-in Smart Battery Management System (BMS)
- Advanced BMS system with 20+ safety features built in
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (16) in Parallel up to 20.48 kWh
- 4,500+ Cycle life & Maintenance-free
- 6 Year Manufacturer Warranty
SpecificationsÂ
Weights & Dimensions
Recommended Charge SettingsÂ
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
