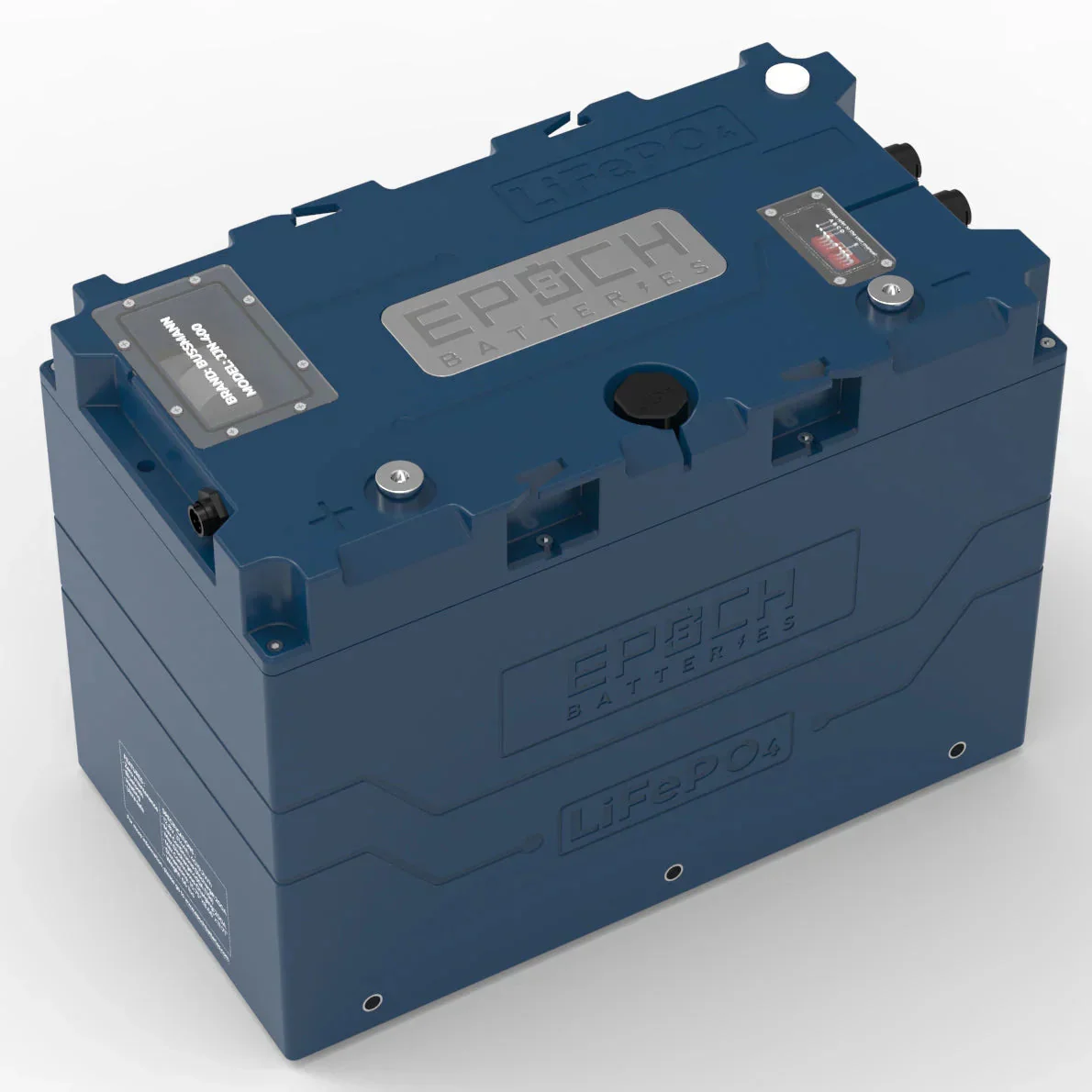

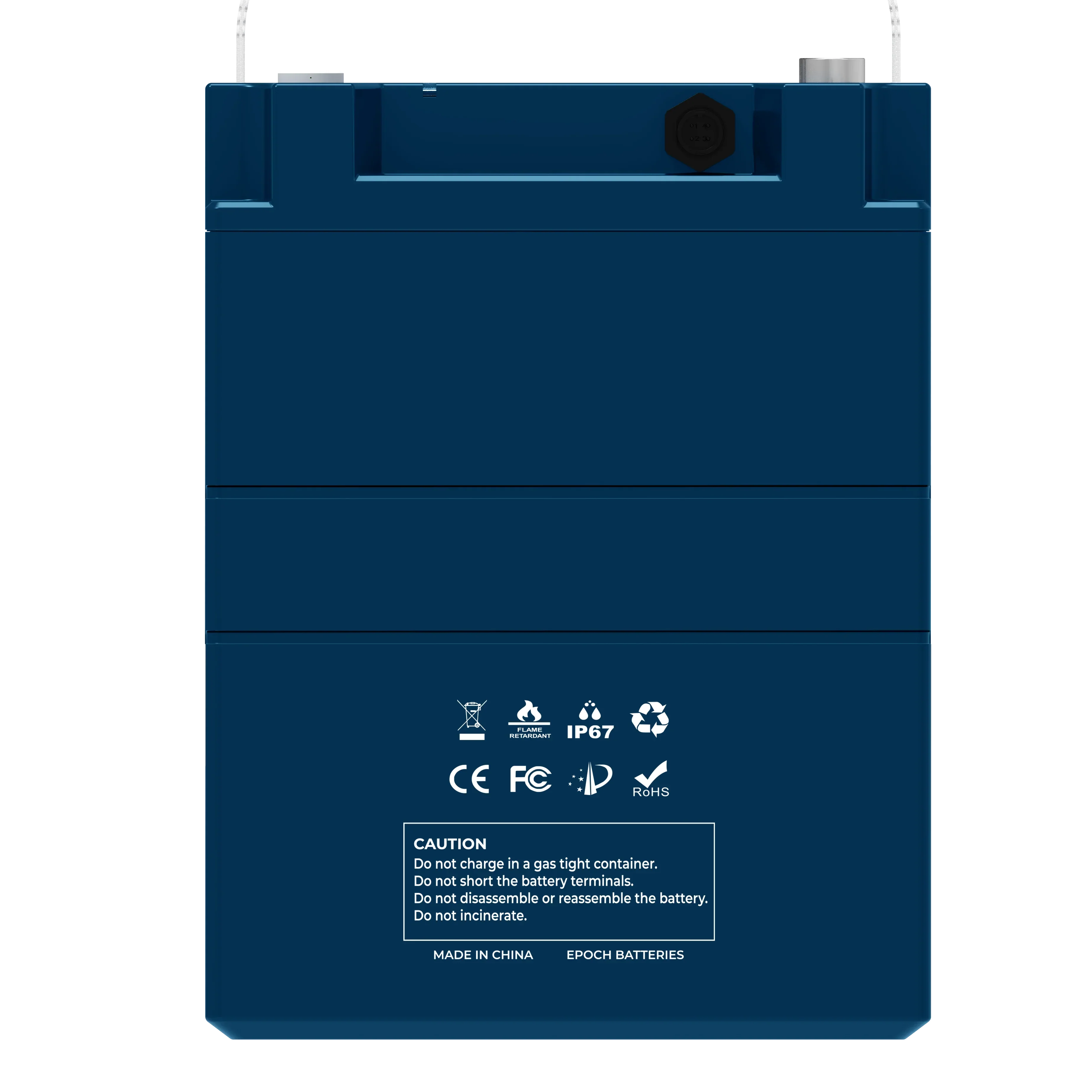

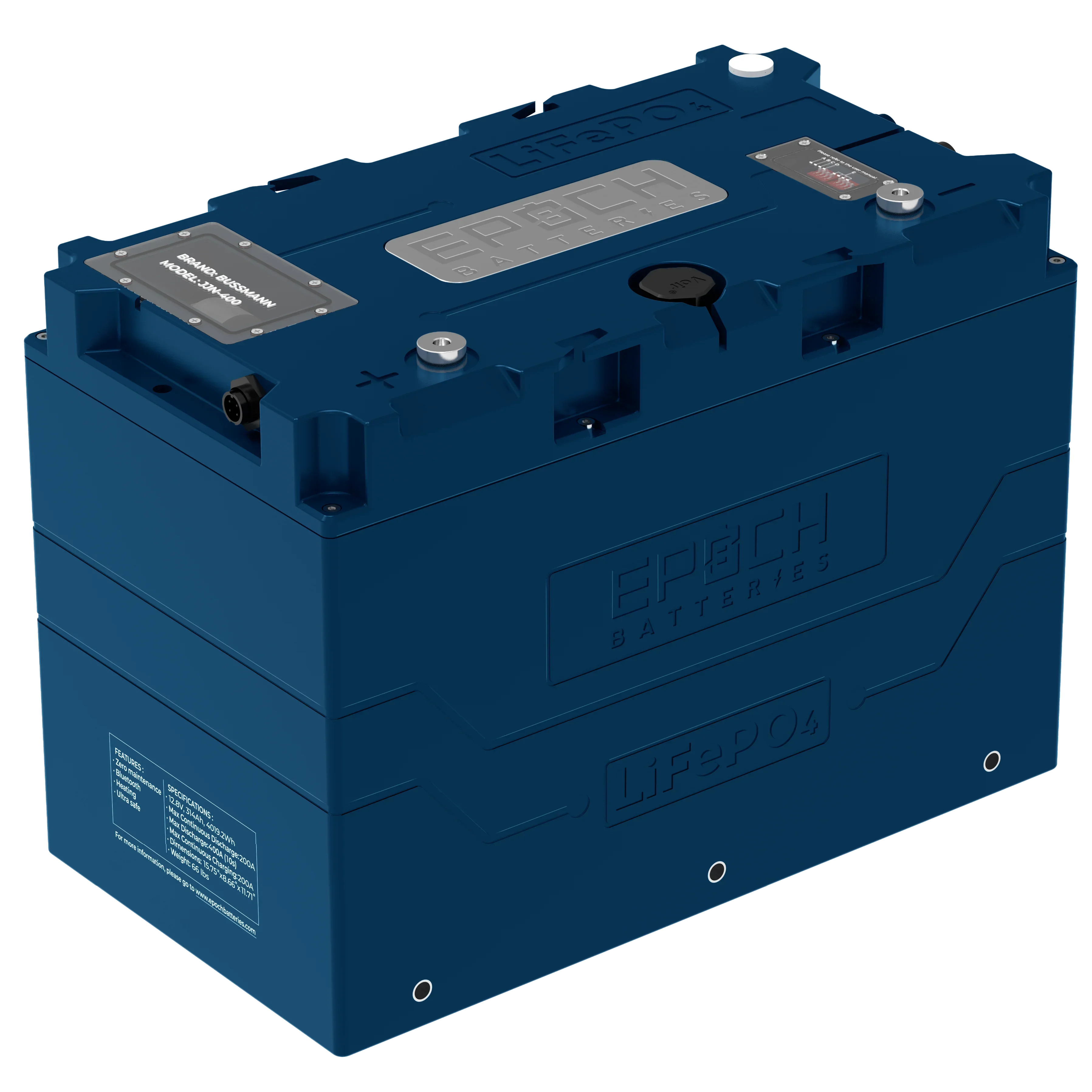

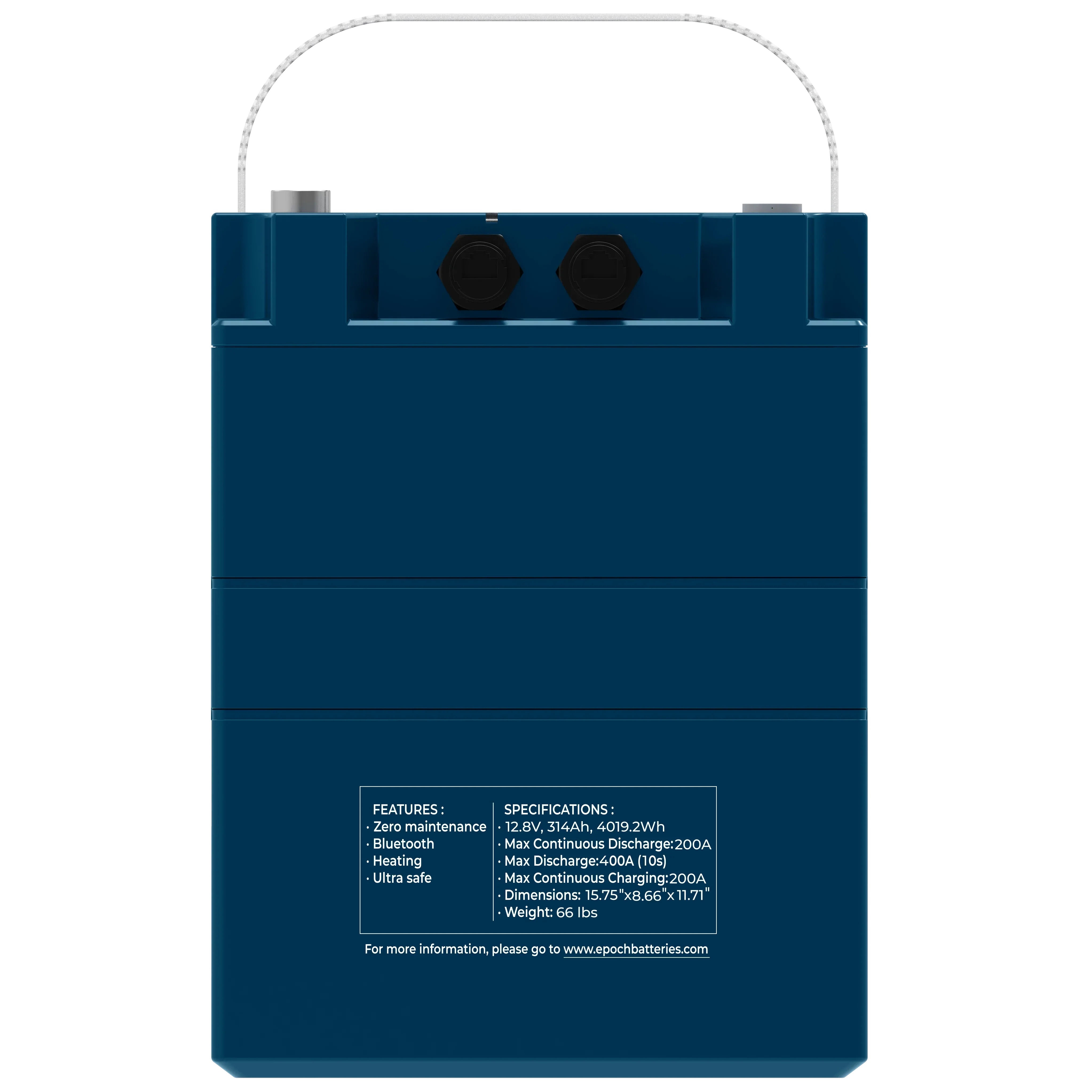

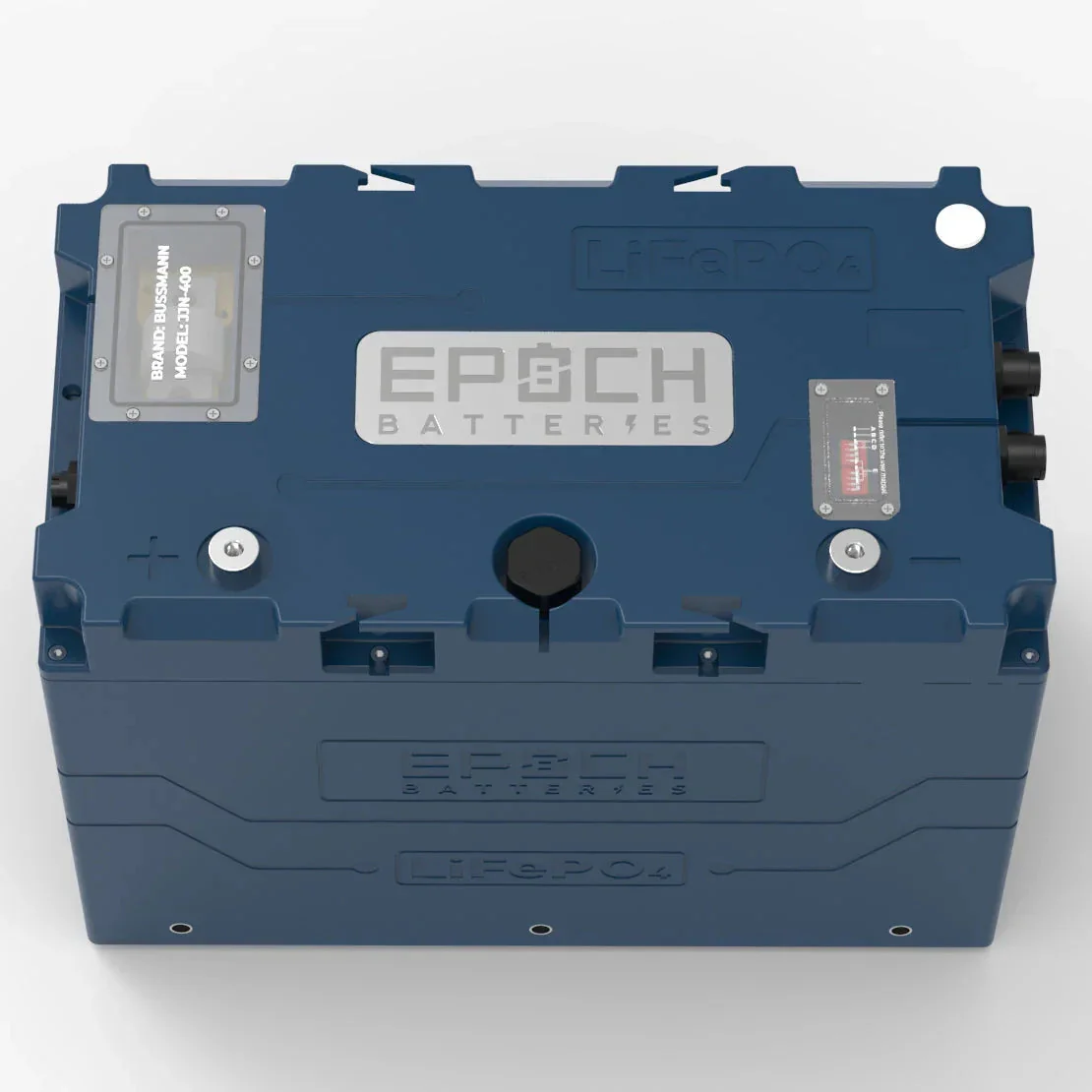

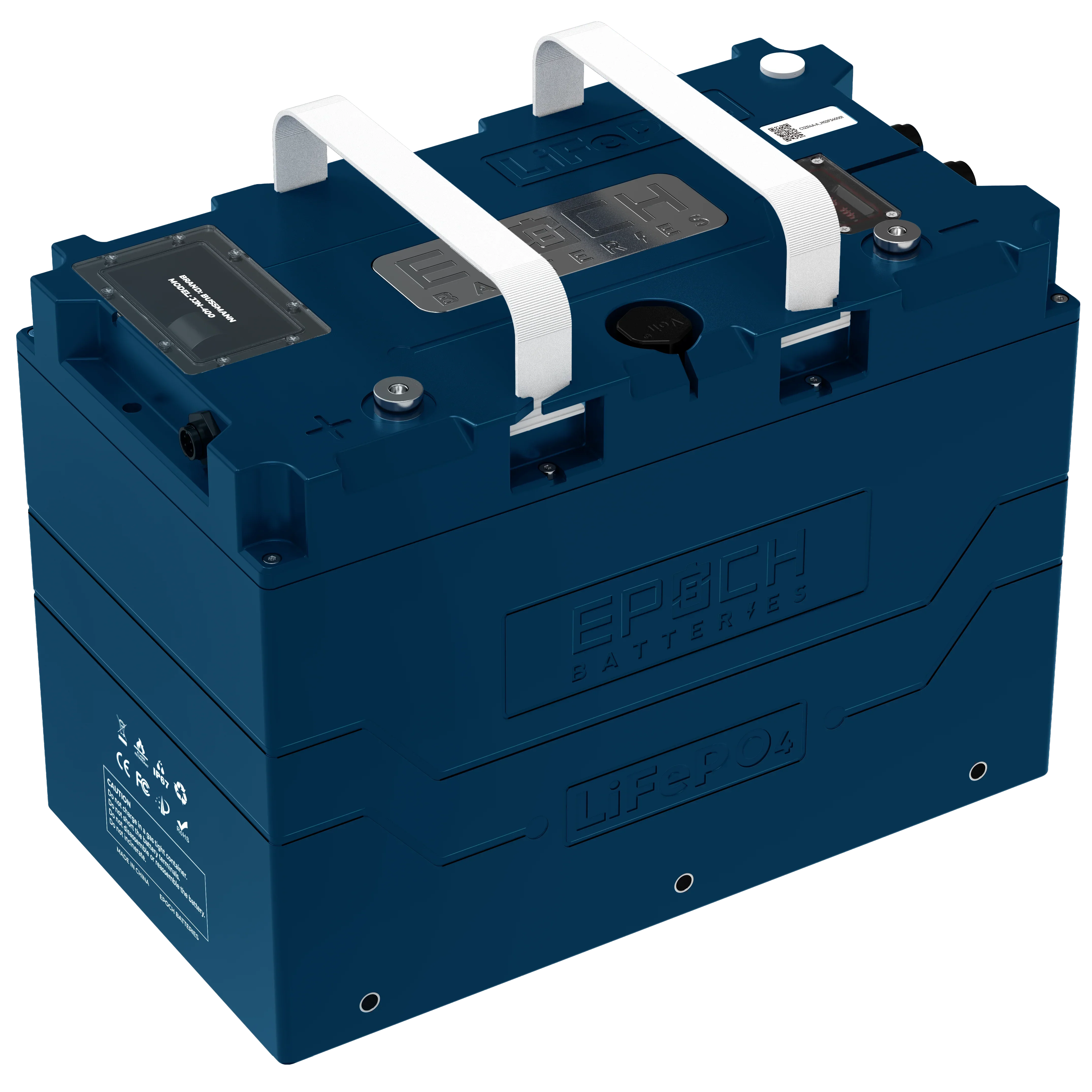

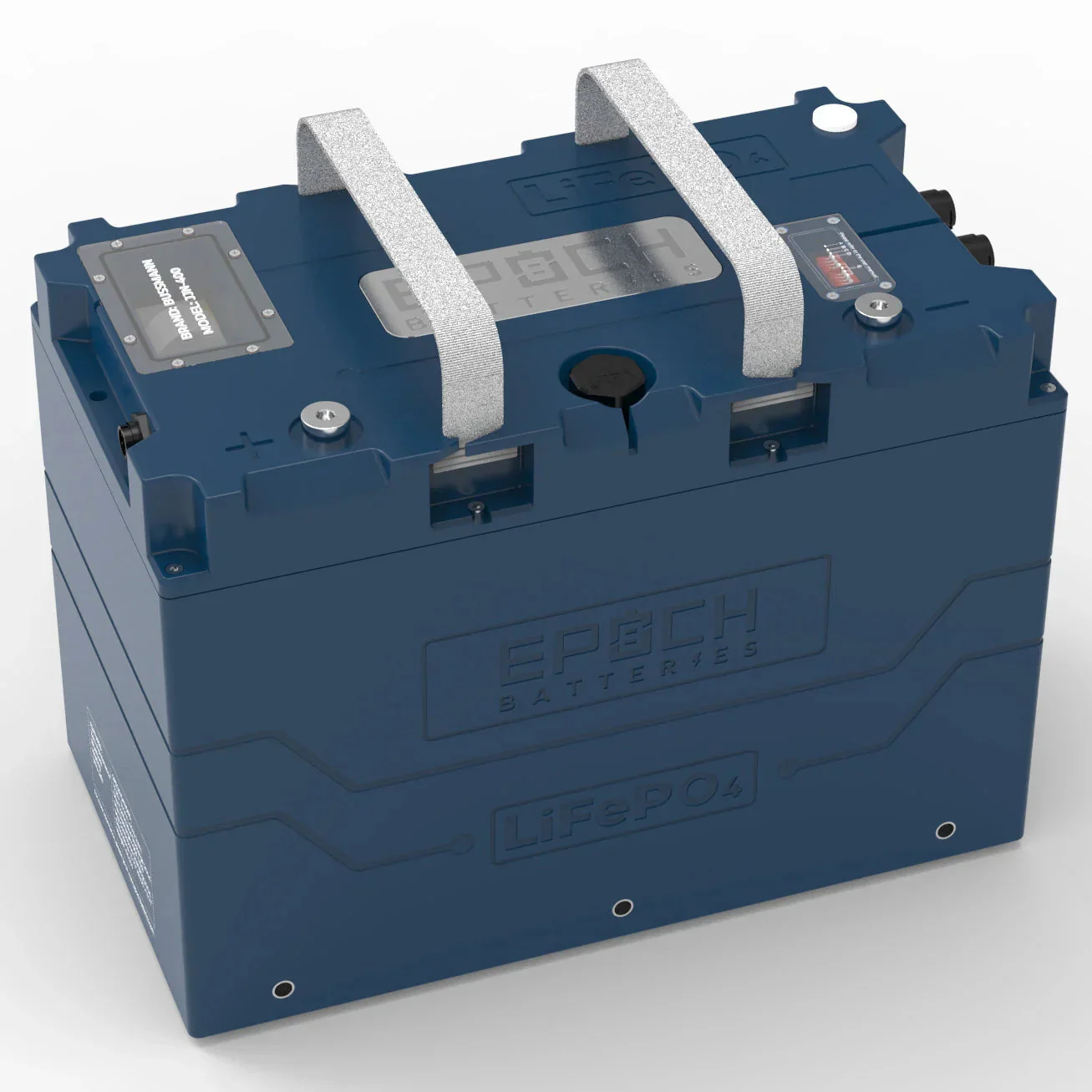

Epoch Batteries 12V 314Ah V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
Epoch Batteries 12V 314Ah V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
Epoch Batteries 12V 314Ah V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
Configuration
Cell Configuration:Â 4S1P
Chemistry:Â LiFePO4
Current
Ah Capacity:Â 314Ah
Max Continuous Discharge Amps:Â 200A
Max Charge Current Amps:Â 200A
Max Discharge Peak Current Amps:Â 400A (10 Seconds)
Series | Parallel:Â Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P
Voltage
Voltage:Â 12.8V
Max Charge Voltage:Â 14.6V
Operating Voltage Range:Â 10.0 - 14.6V
Weight:Â 66 (LBS)
Dimensions
Length:Â 15.75Â (inches)
Width:Â 8.66Â (inches)
Height:Â 11.71Â (inches)
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
$449.70
Original: $1,499.00
-70%Epoch Batteries 12V 314Ah V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery—
$1,499.00
$449.70More Images
Epoch Batteries 12V 314Ah V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
Epoch Batteries 12V 314Ah V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
Configuration
Cell Configuration:Â 4S1P
Chemistry:Â LiFePO4
Current
Ah Capacity:Â 314Ah
Max Continuous Discharge Amps:Â 200A
Max Charge Current Amps:Â 200A
Max Discharge Peak Current Amps:Â 400A (10 Seconds)
Series | Parallel:Â Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P
Voltage
Voltage:Â 12.8V
Max Charge Voltage:Â 14.6V
Operating Voltage Range:Â 10.0 - 14.6V
Weight:Â 66 (LBS)
Dimensions
Length:Â 15.75Â (inches)
Width:Â 8.66Â (inches)
Height:Â 11.71Â (inches)
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
