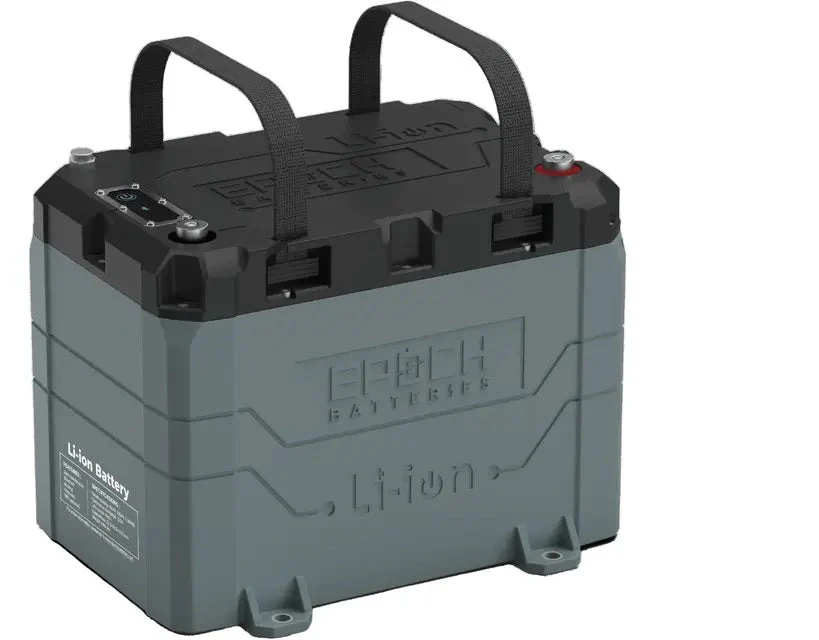

Epoch Batteries 12V 50Ah (0.64kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof

Description:

• LiFePO4 Chemistry - Deep Cycle Battery
• HEATED - Internal heating allows for charging in sub-zero conditions
• BLUETOOTH - iOS and Android Apps
• IP67 Rated, Dust and WATERPROOF
• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• Max (4) in Series up to 48V
• Max (4) in Parallel up to 200Ah
• 3500+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Specifications:

Temperature

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weighs & Dimensions:

Weight: 22 (LBS)

Dimensions

Length: 13 (inches)

Width: 10.25 (inches)

Height: 11 (inches)

Recommended Charging Settings:

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

Bulk/Absorption: 14.2V – 14.6V

Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah

Float: 13.4V – 13.8V

Equalization: 14.4V/ Disabled

Temperature Compensation: 0/Disabled

Charge Rate: 50% of the battery or battery bank capacity

Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)

Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)

Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.

Downloadable Resources

User ManualUpdated: 11/30/22

Test Report

Material Safety Data Sheet

Safety Data SheetSDS

Additional Resources

Safety Certifications & Listings

IP Rating

IP67

Experience worry-free adventures with our robust IP67 protection. Your battery is completely sealed against dust and can be safely immersed in water up to 1 meter deep for 30 minutes. Whether you're caught in heavy rain or crossing streams, this military-grade protection ensures your power stays reliable.

Fully Dustproof

Waterproof up to 1m

All-Weather Protection

Submersible Design
