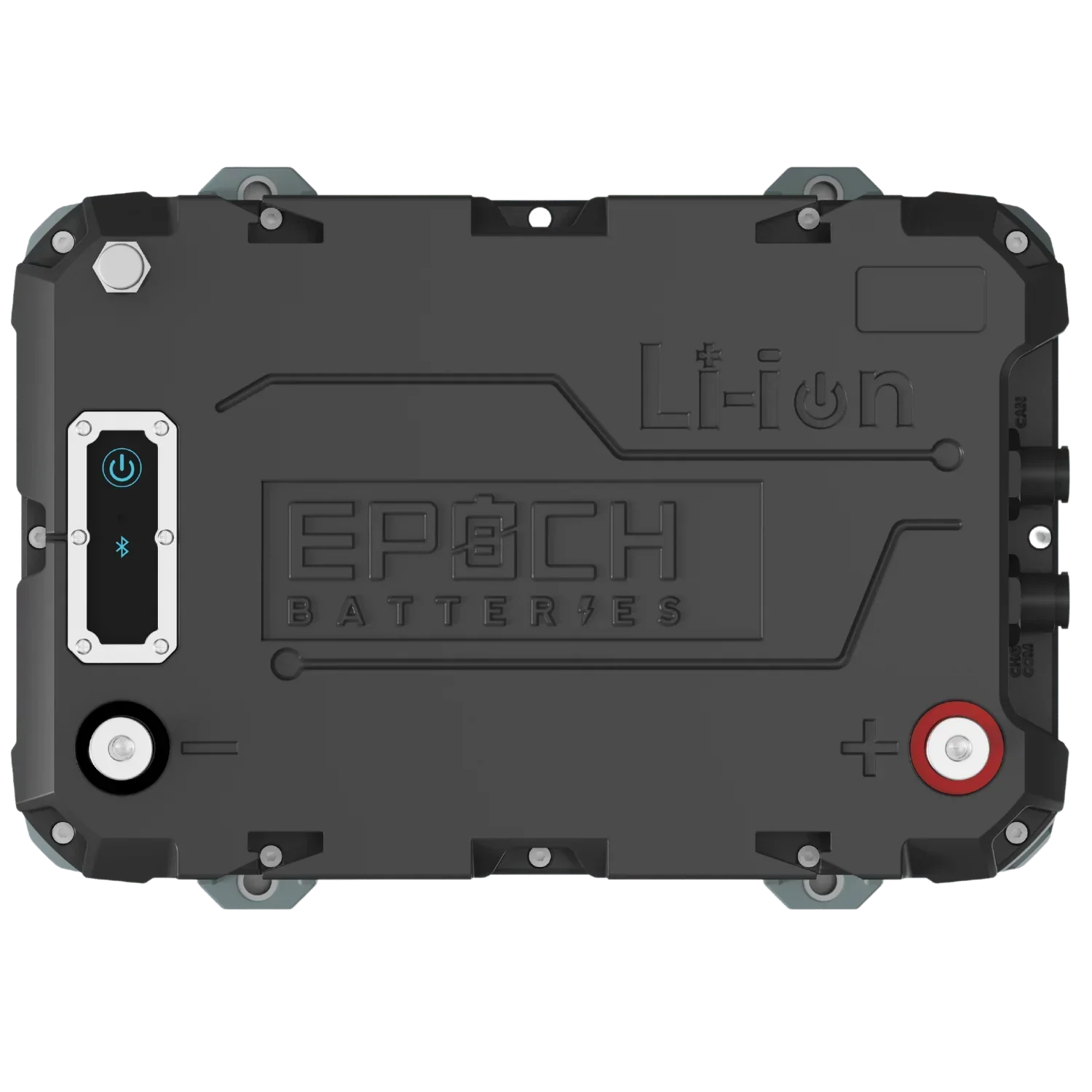

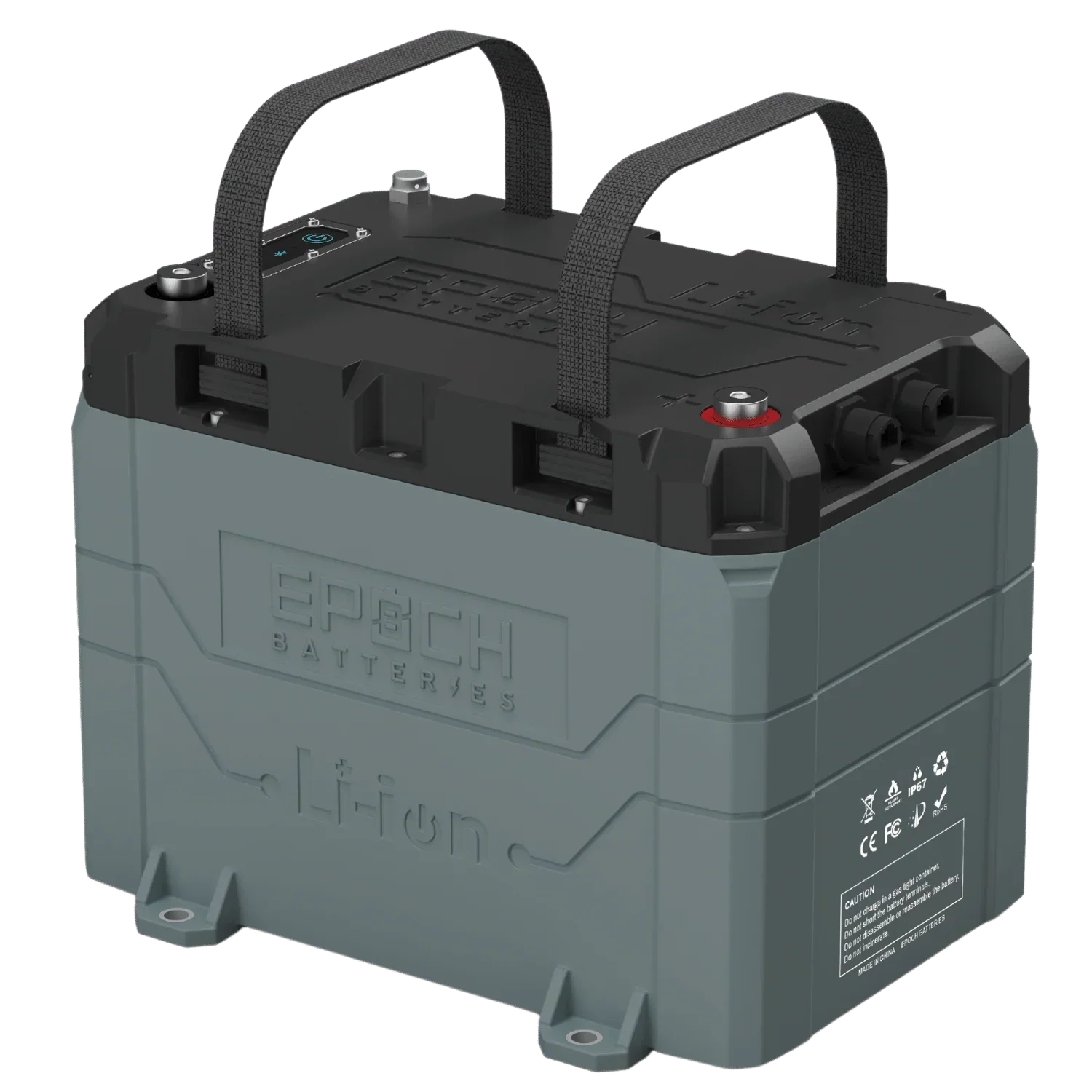

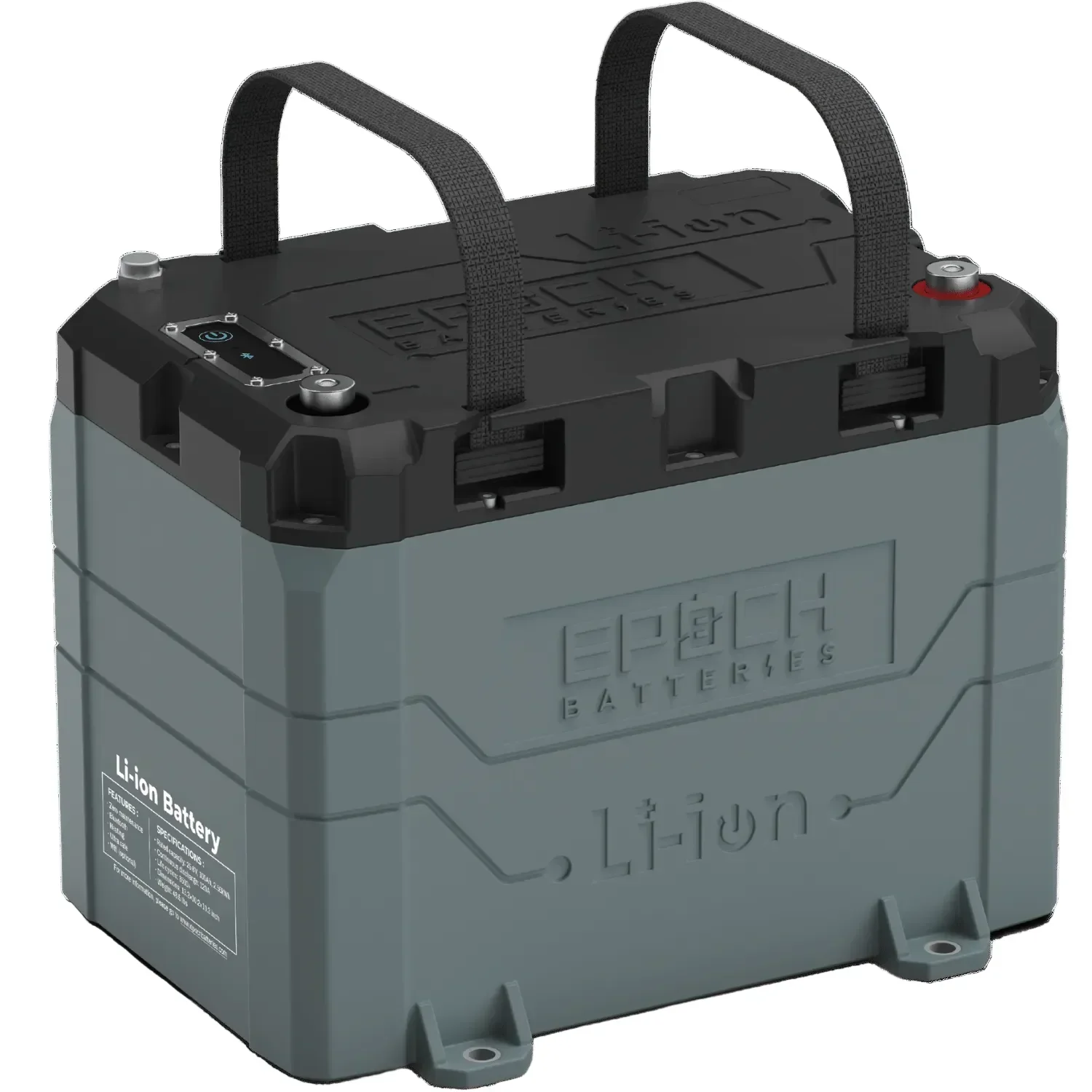

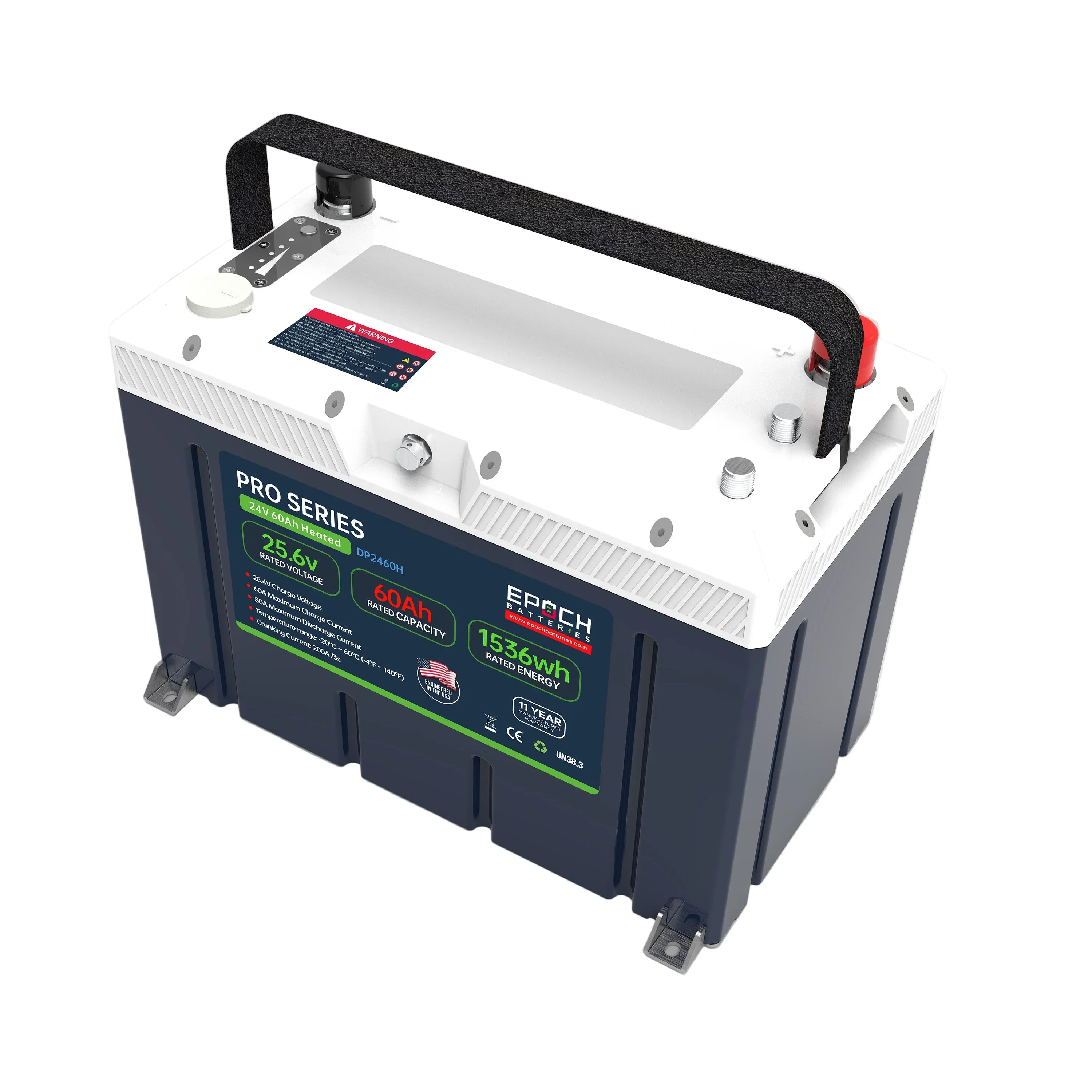

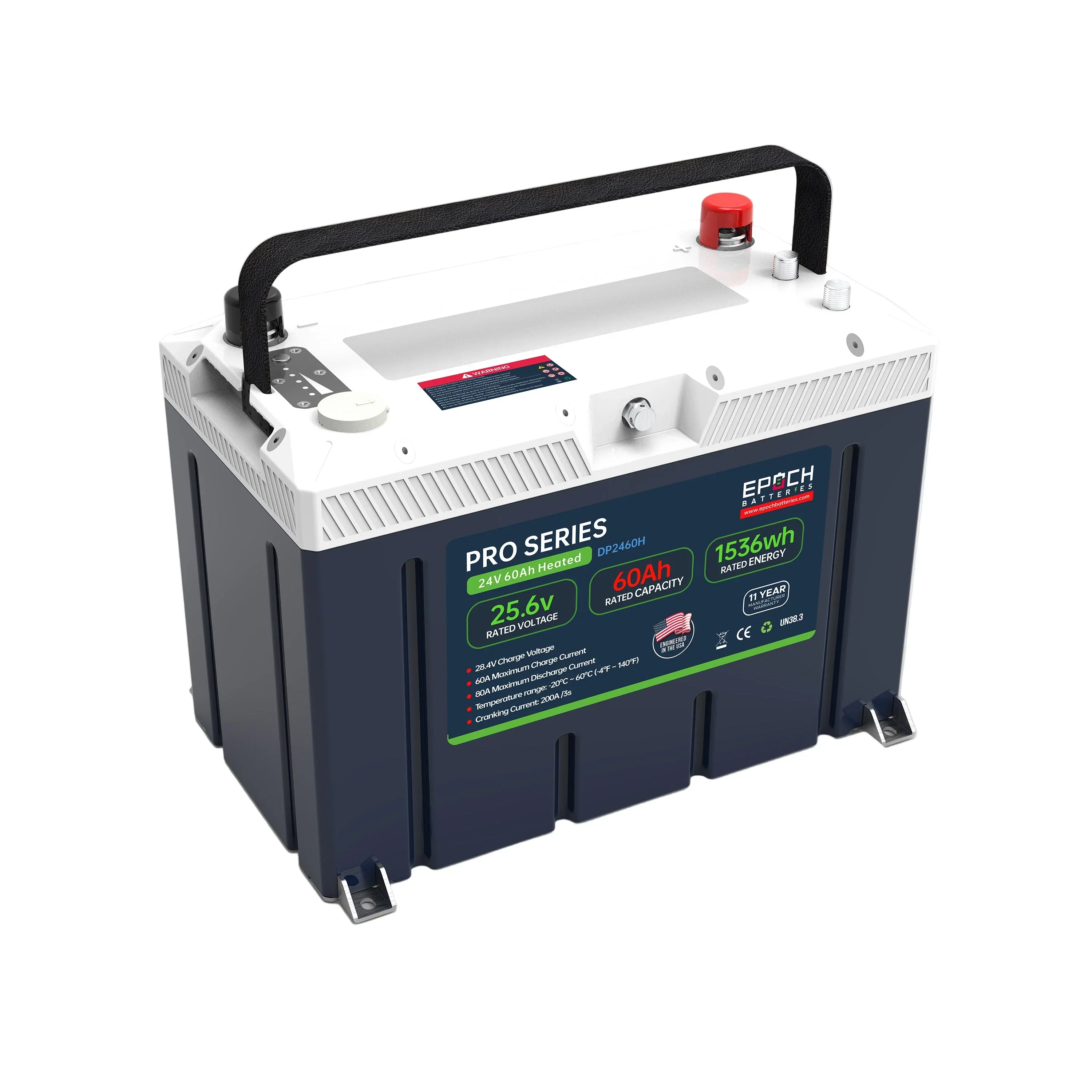

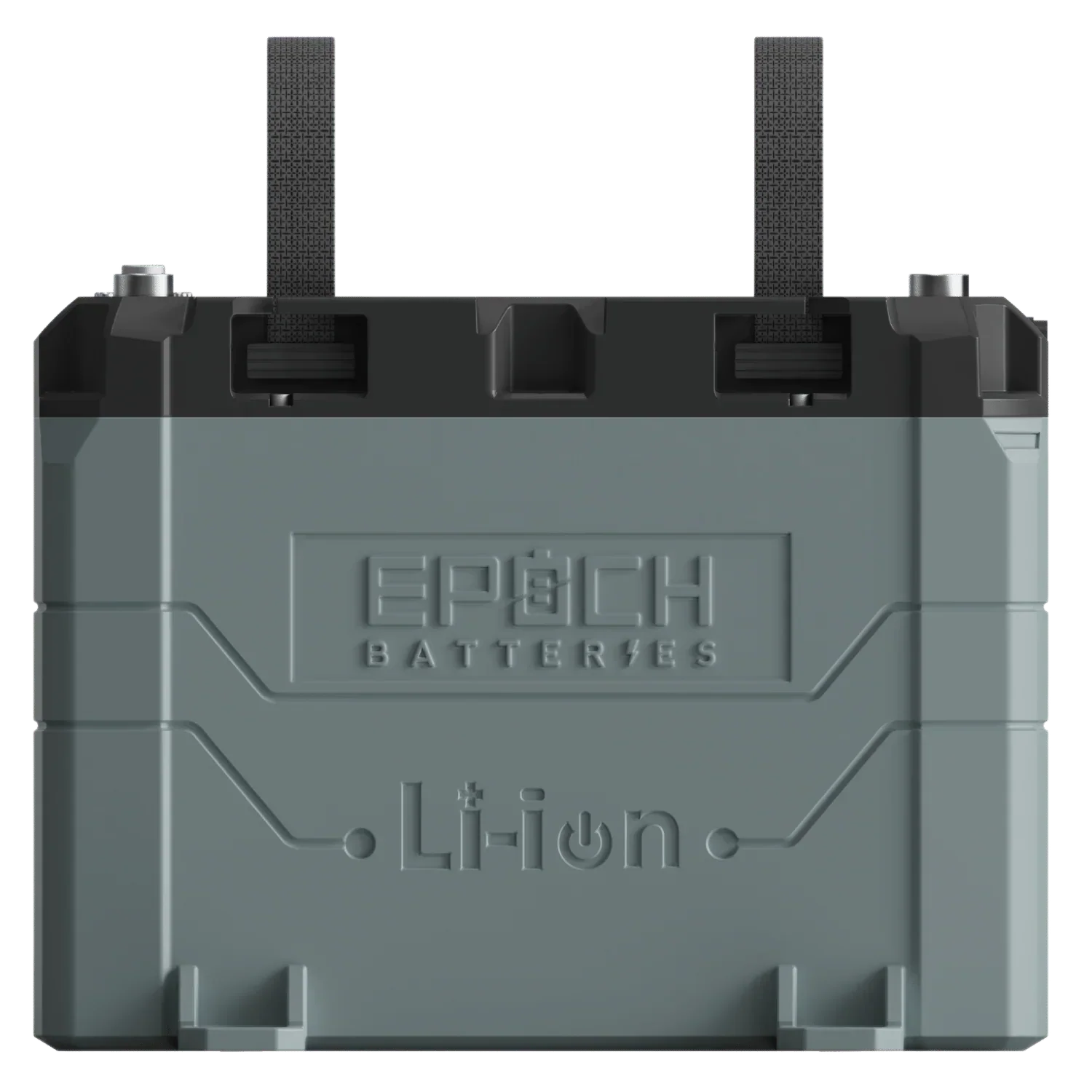

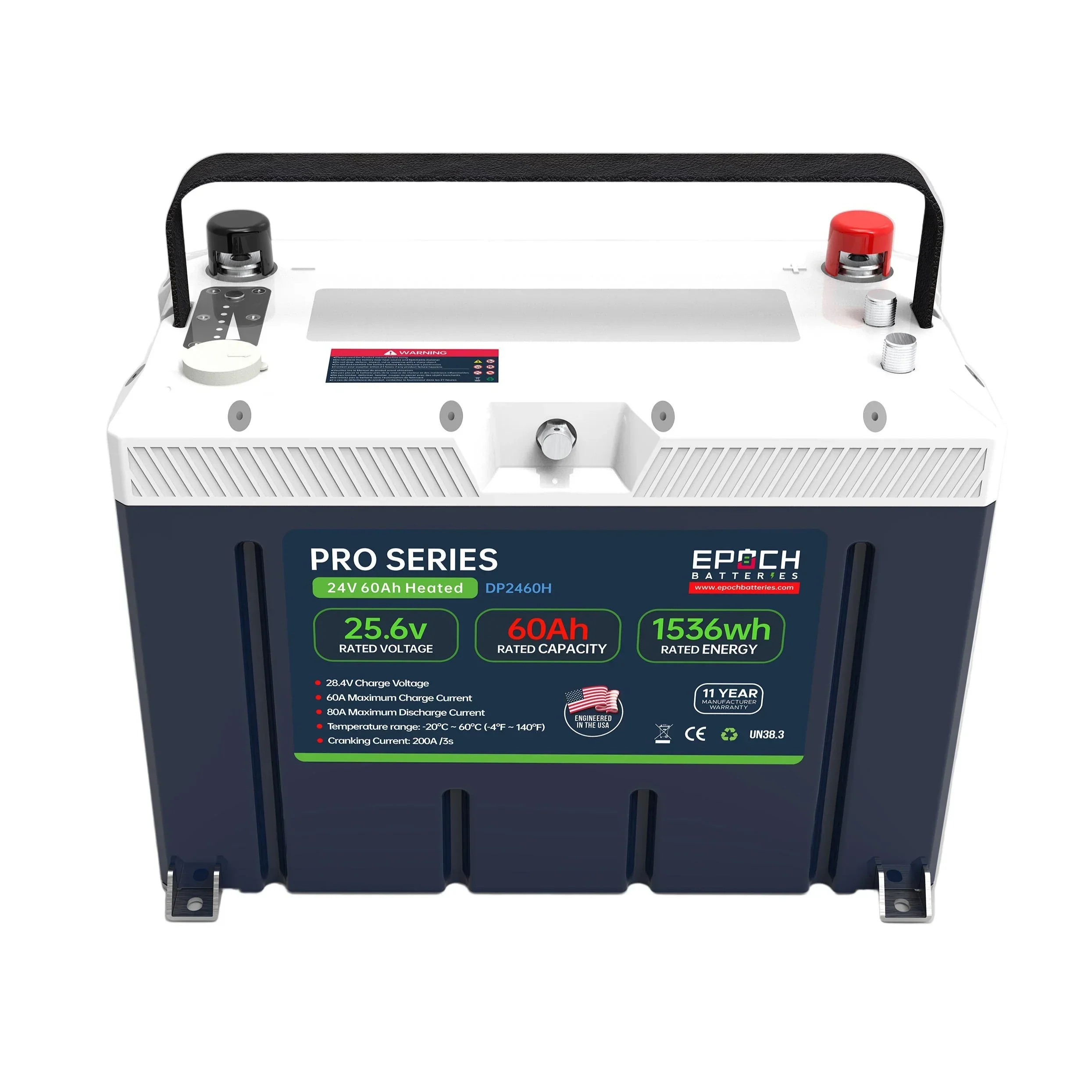

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery

Description:

• LiFePO4 Chemistry - GROUP 27 SIZE
• 80A Max Continuous Discharge
• 200A 3s Peak Discharge Current
• HEATED - Internal heating allows for charging in sub-zero conditions

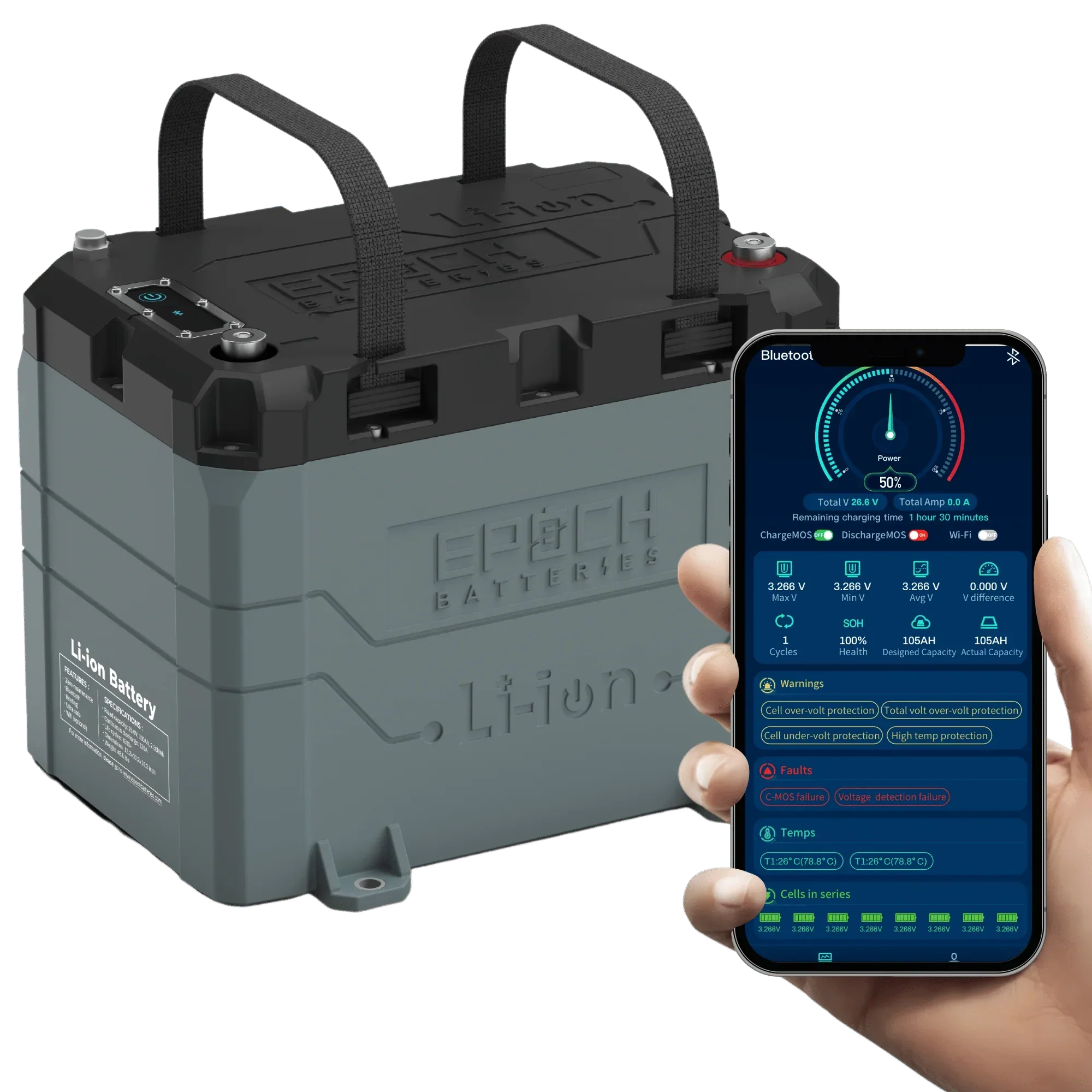

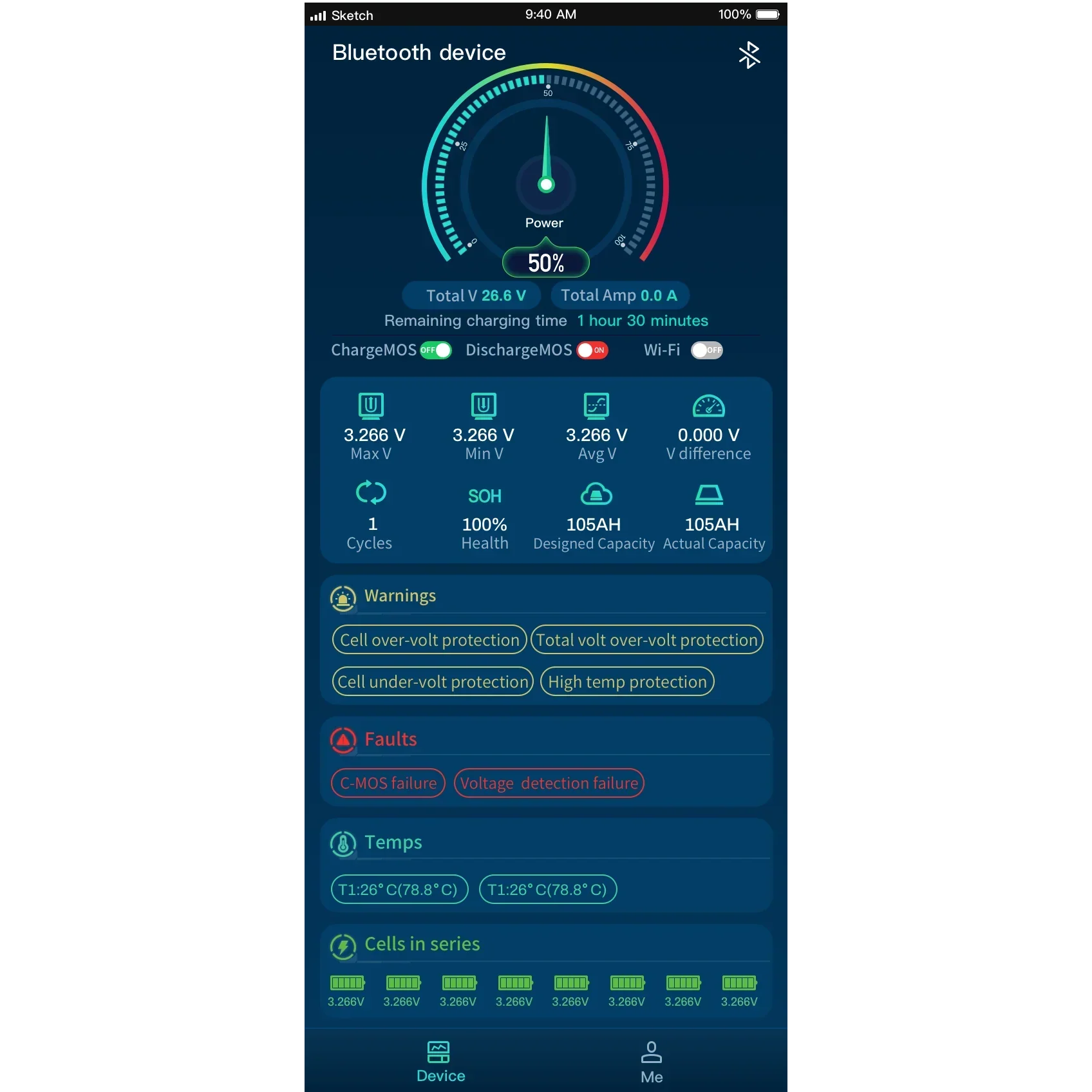

• BLUETOOTH - iOS and Android Apps
• BLUETOOTH - Over the air Firmware update via the app

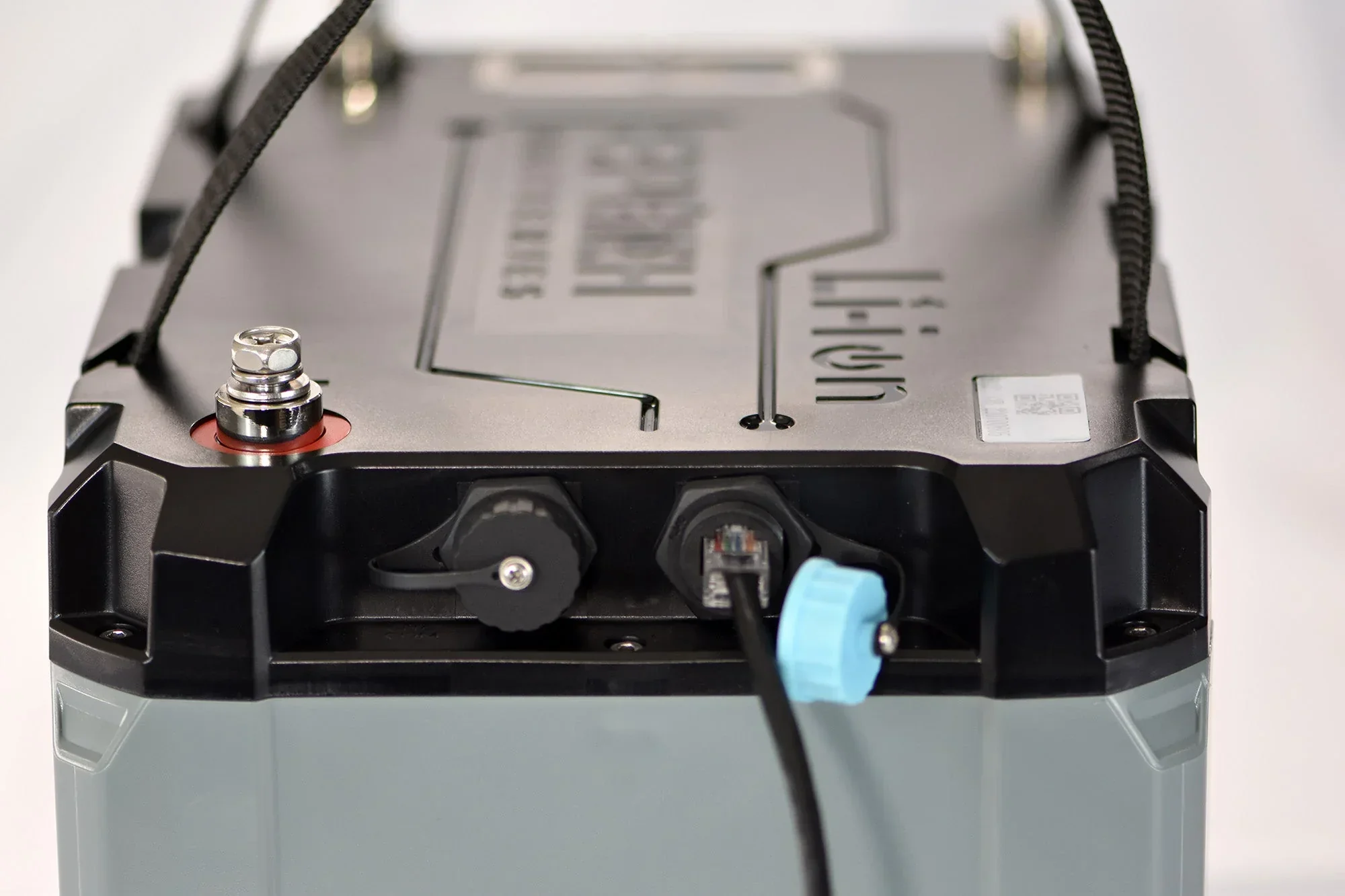

• Victron Comms - Communicate all battery information directly to the Victron Ecosystem
• IP67 Rated, Dust and WATERPROOF

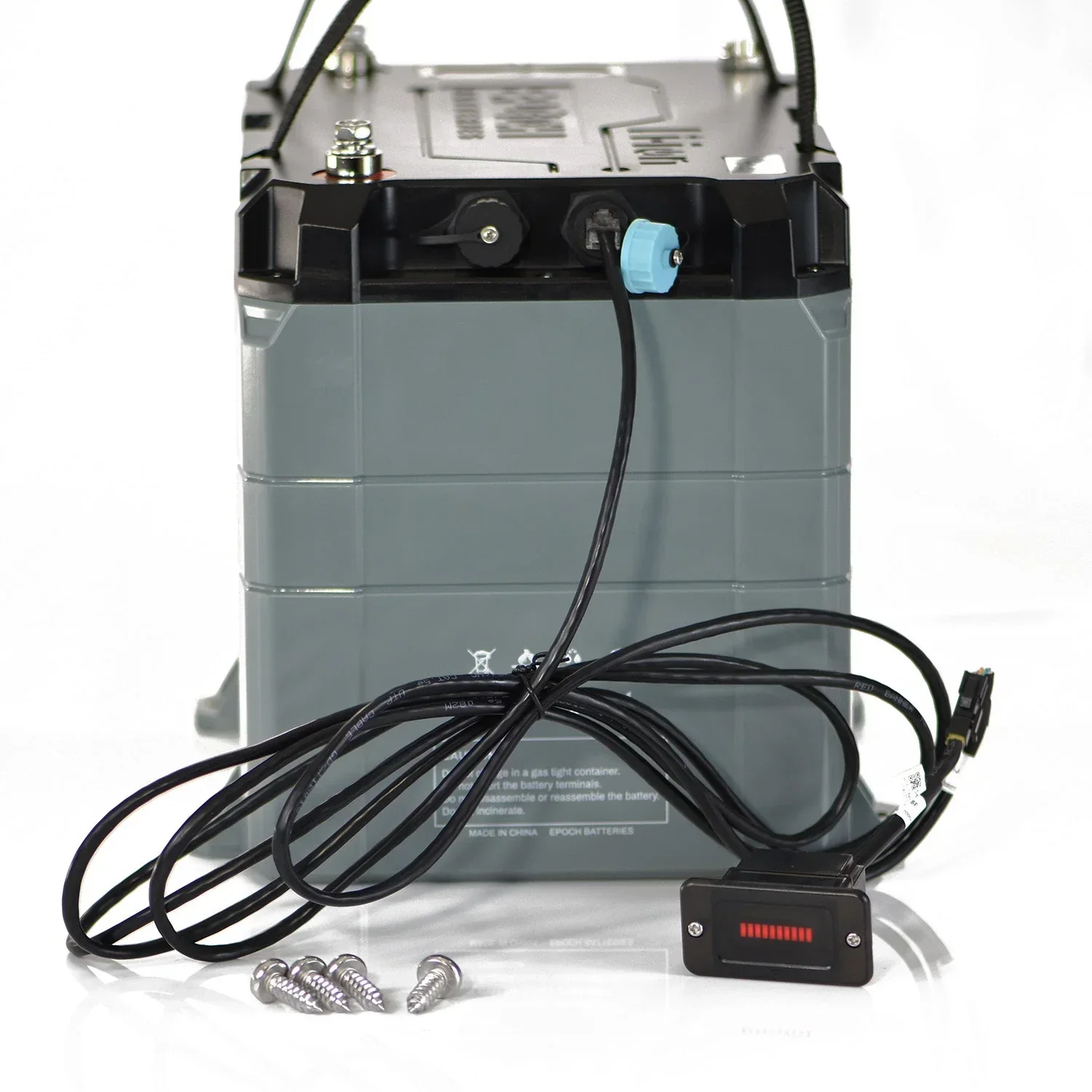

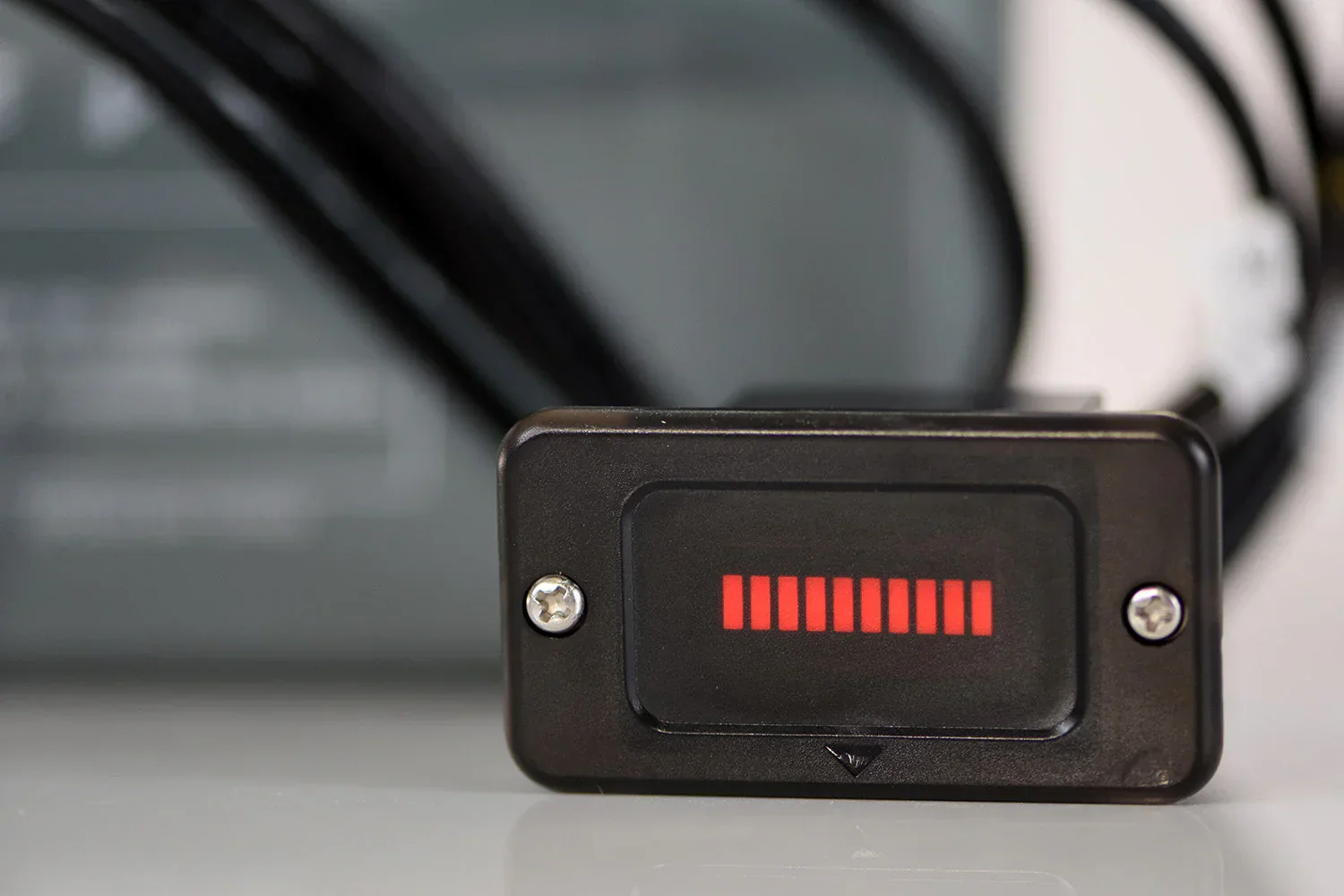

• 5" Touch Screen Battery Gauge (Optional)
• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• Max (16) in Parallel
• 6000+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Specifications:

Temperature

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weights & Dimensions:

Weight: 30

Dimensions

Length: 12.25 (inches)

Width: 6.75 (inches)

Height: 9 (inches)

Recommended Charging Settings:

Maximum Continuous Charge Current: 60A

Bulk/Absorption: 28.4V-28.8V

Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max

Float Voltage: Disabled (preferred) or 26.6V-27.2V

Re-bulk: 26.4V

Temperature Compensation: 0 mV/°C (none)

Equalization: Disabled

Battery Charge Temperature Range: -20°C (-4°F) / 55°C (131°F) (with self-heating)

BMS High Voltage Cutoff: 29.2V

SoC Recalibration: 29.2V

Downloadable Resources:

Material Safety Data Sheet

Data Sheet

User Manual

Safety Data SheetSDS
