MRBF Terminal Fuse(30A/40A/60A/75A/100A/150A/200A/250A/300A/350A/400A)

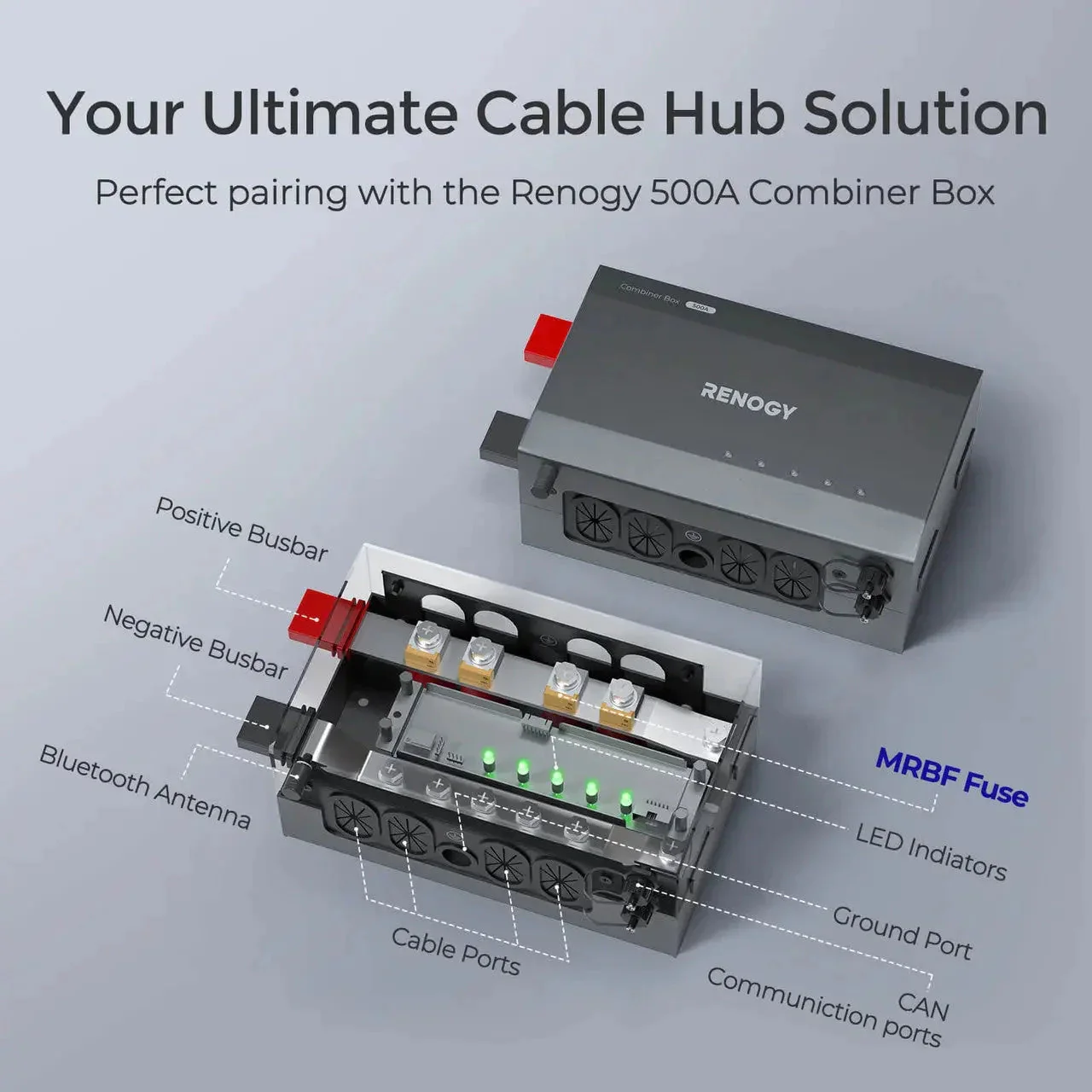

-Simplifies wiring with Renogy 500A Combiner Box.
-Compact and reliable circuit protection for your solar system.
-Versatile voltage and amperage range for diverse applications.
-If not used with a combiner box, a terminal fuse holder is required.
-RoHS, UL, and CE certifications for reliability and compliance.
Renogy MRBF Terminal Fuse
Safeguarding every journey, from waterways to roadways.
Integrated Circuit Protection
The MRBF fuse streamlines installation by eliminating the need for external fuses, ensuring a seamless user experience with effortless troubleshooting of system faults through internal integration.
Centralized Electrical Safeguarding

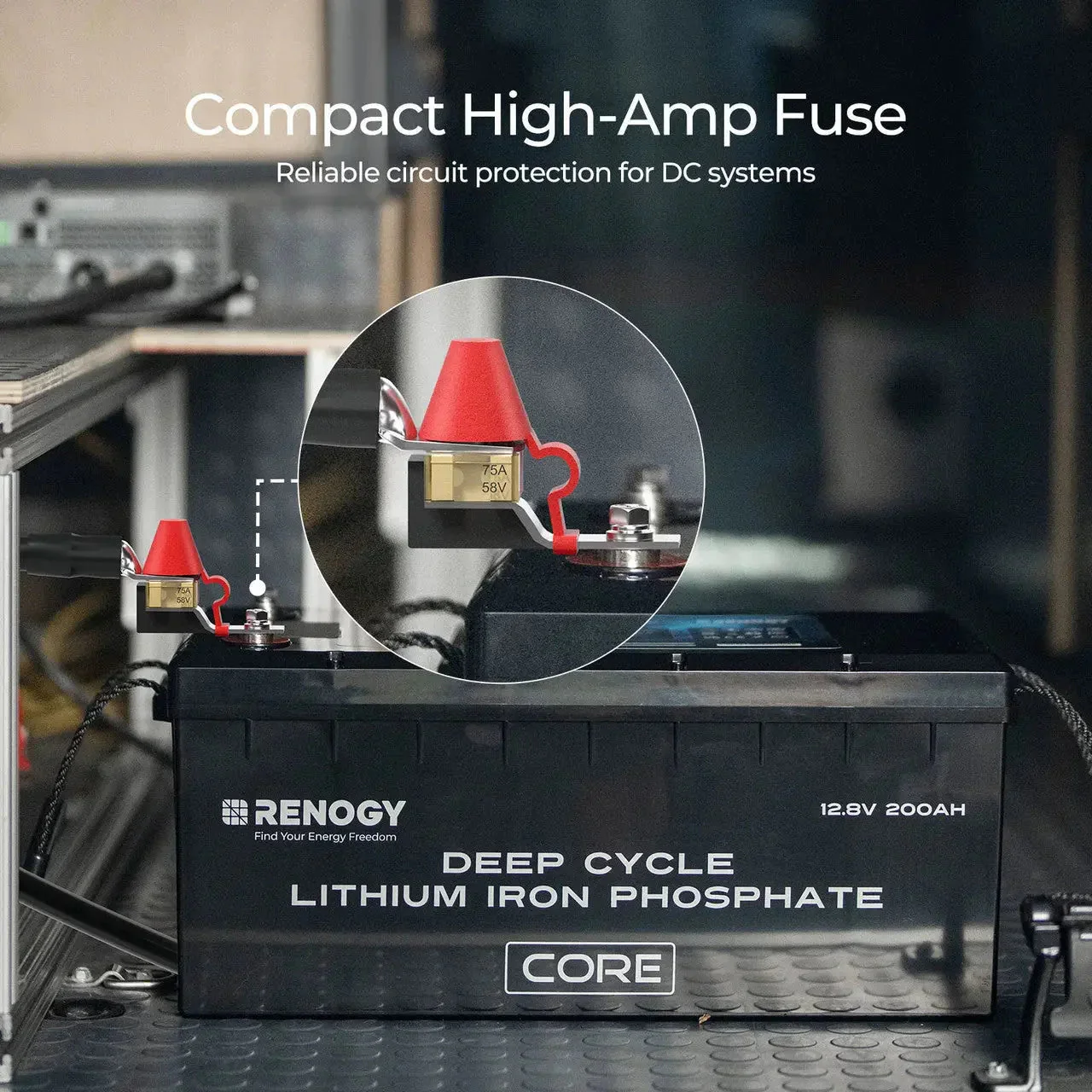

MRBF fuse attaches directly to the positive terminal's copper plate for circuit protection, eliminating the need for external connections.
Connect with Renogy customers.
Go to Power Plus Community
Still have questions?
Ask our specialistPackage Includes

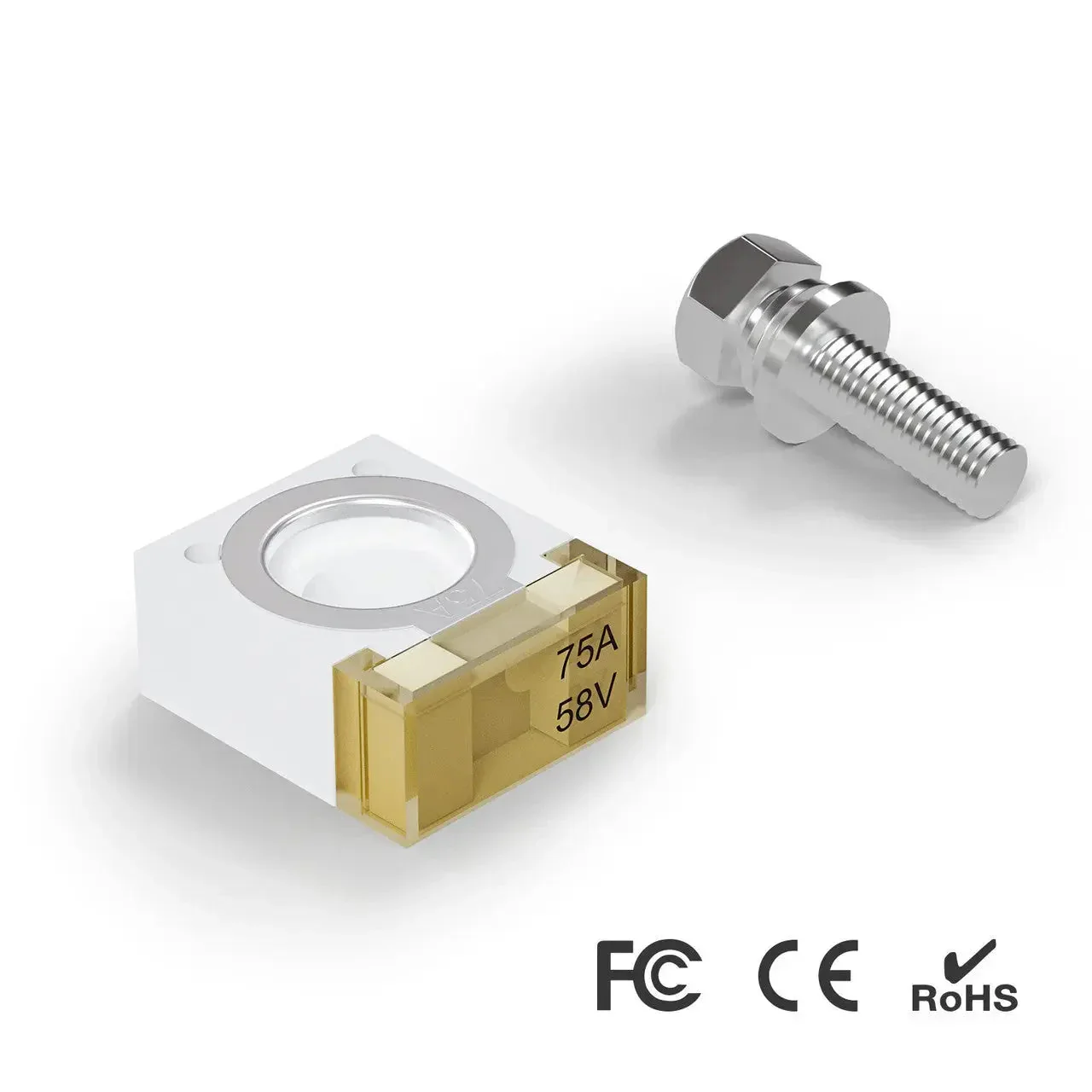

- MRBF Terminal Fuse x 1
- M8 Terminal Bolt x 1
| MRBF TERMINAL FUSE | |
|---|---|
| Specification | |
| Current Rating: 30A/40A/60A/75A/100A/150A/200A/250A/300A/350A/400A | Voltage Rating: 58V |

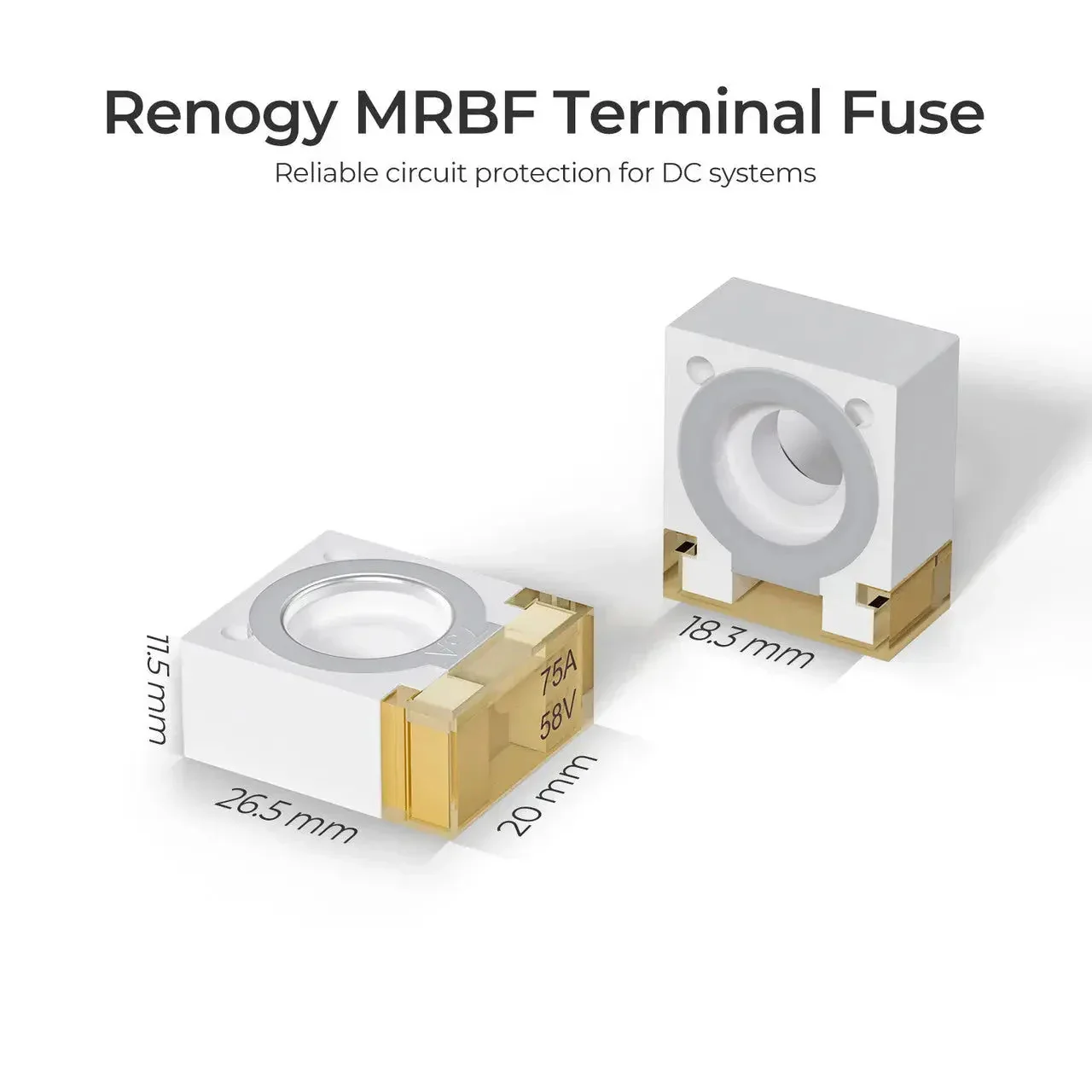

| Interrupt Rating: 10,000A @ 14VDC / 5,000A @ 32VDC / 2,000A @ 58VDC | Dimension: 23.5*20*11.5 mm / 0.93*0.79*0.45 inch |
| Mounting Hole Size: 5/16'' / M8 | Insulating Body Material: Ceramic |
| Cover Material: PES | |
| Warranty | |
| material and workmanship warranty: 1 Year | |
| Certifications | |
| Certifications: RoHS; UL; CE | |
1. What is the purpose of the screw fittings in the package?
This screw will help you when installing the MRBF Fuse on your Renogy Combiner Box.
