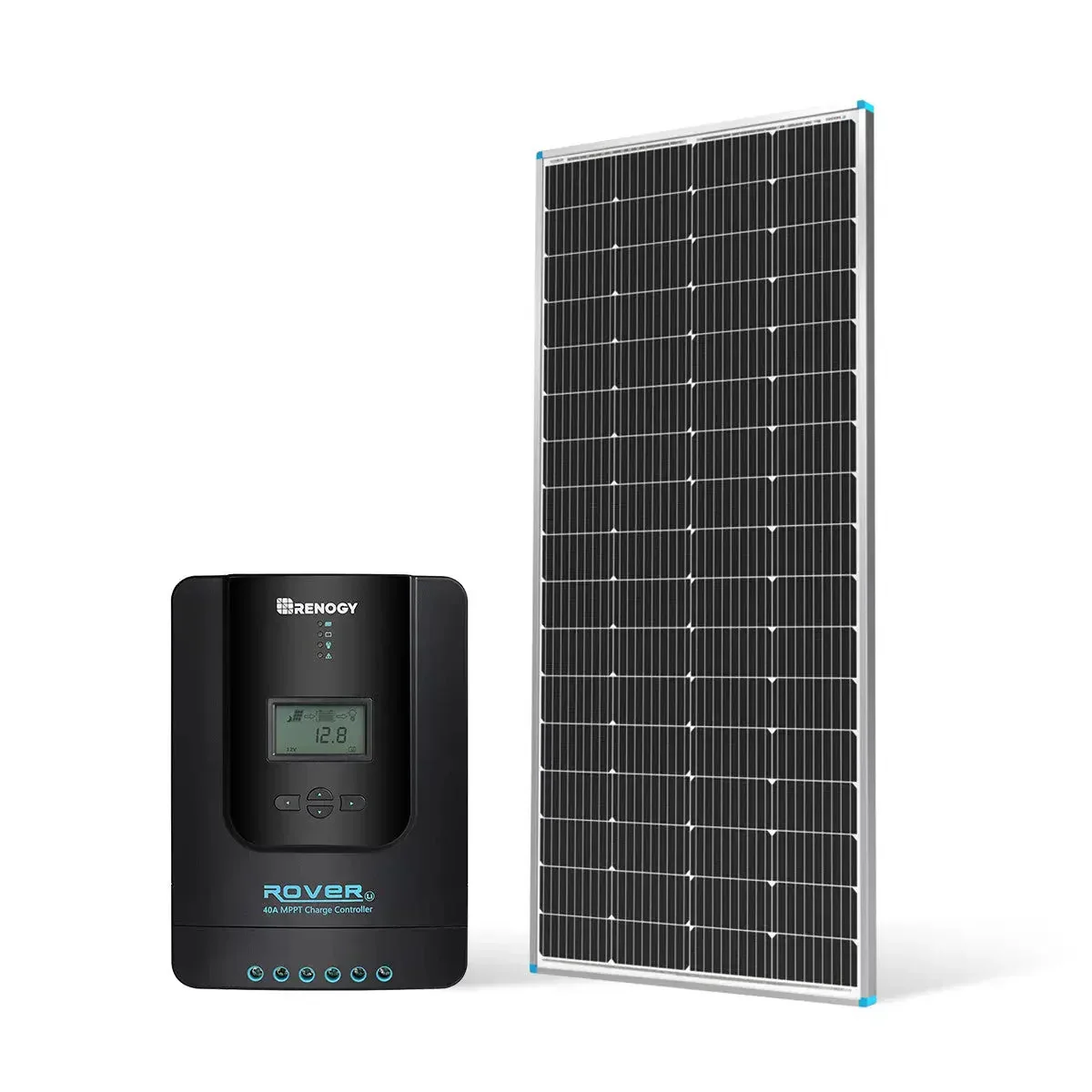

Renogy 200 Watt 12 Volt Monocrystalline Solar Panel with 40 Amp MPPT Charge Controller
- 1000 Watt-hours of electricity per day（5-6 hours of direct sunlight
- 10-year workmanship warranty, 25-year 80% output warranty.
- 9 bus-bars and PERC cell technology optimize overall efficiency.
- Half-cut cells and bypass diodes enhance accidental shading tolerance.
- Durable design ensures long-lasting use in challenging environments.
- Pre-drilled holes facilitate easy installation.

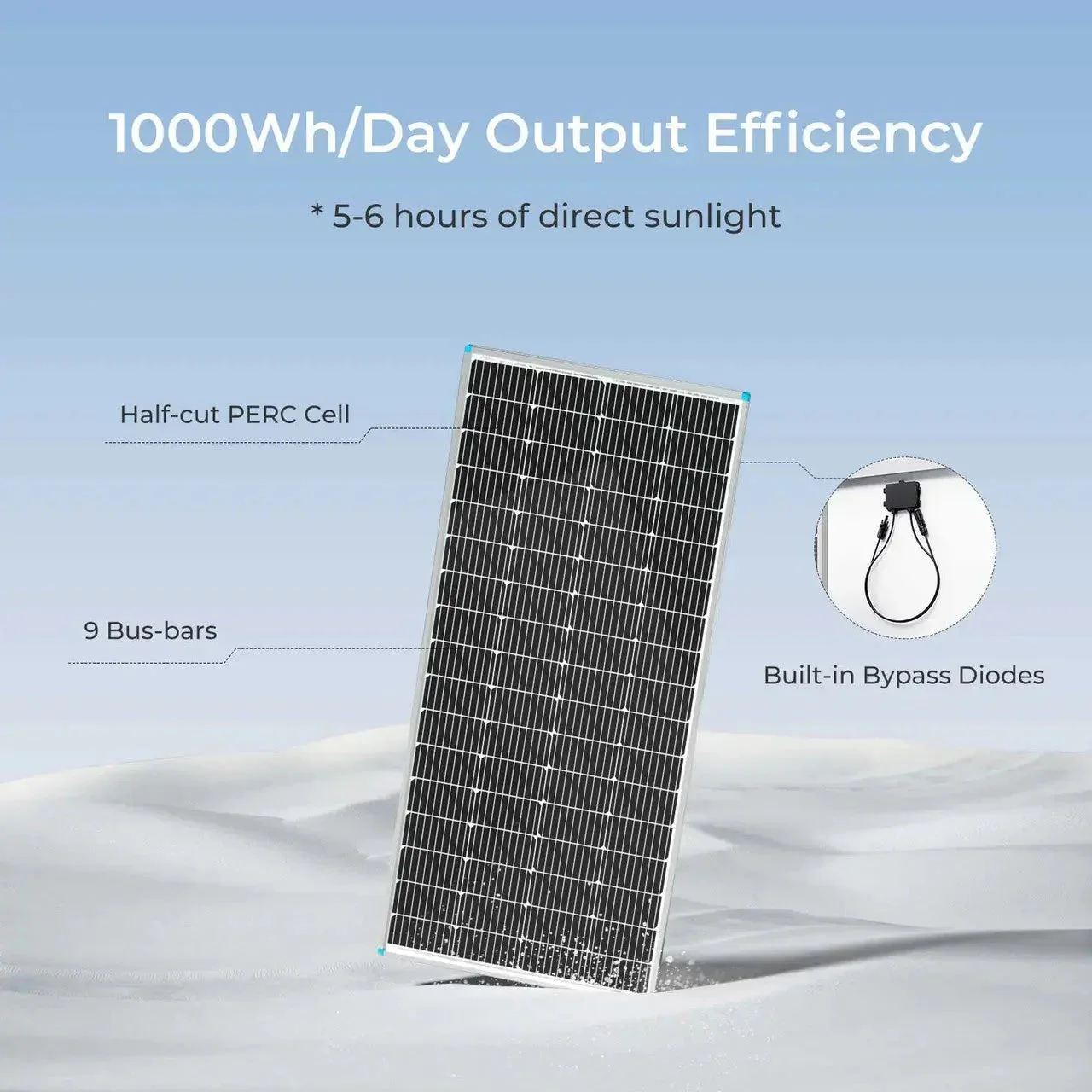

Reliable Electricity Output Performance
Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%.
Advanced Solar Cells for Enhanced Efficiency
Renogy's Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology.

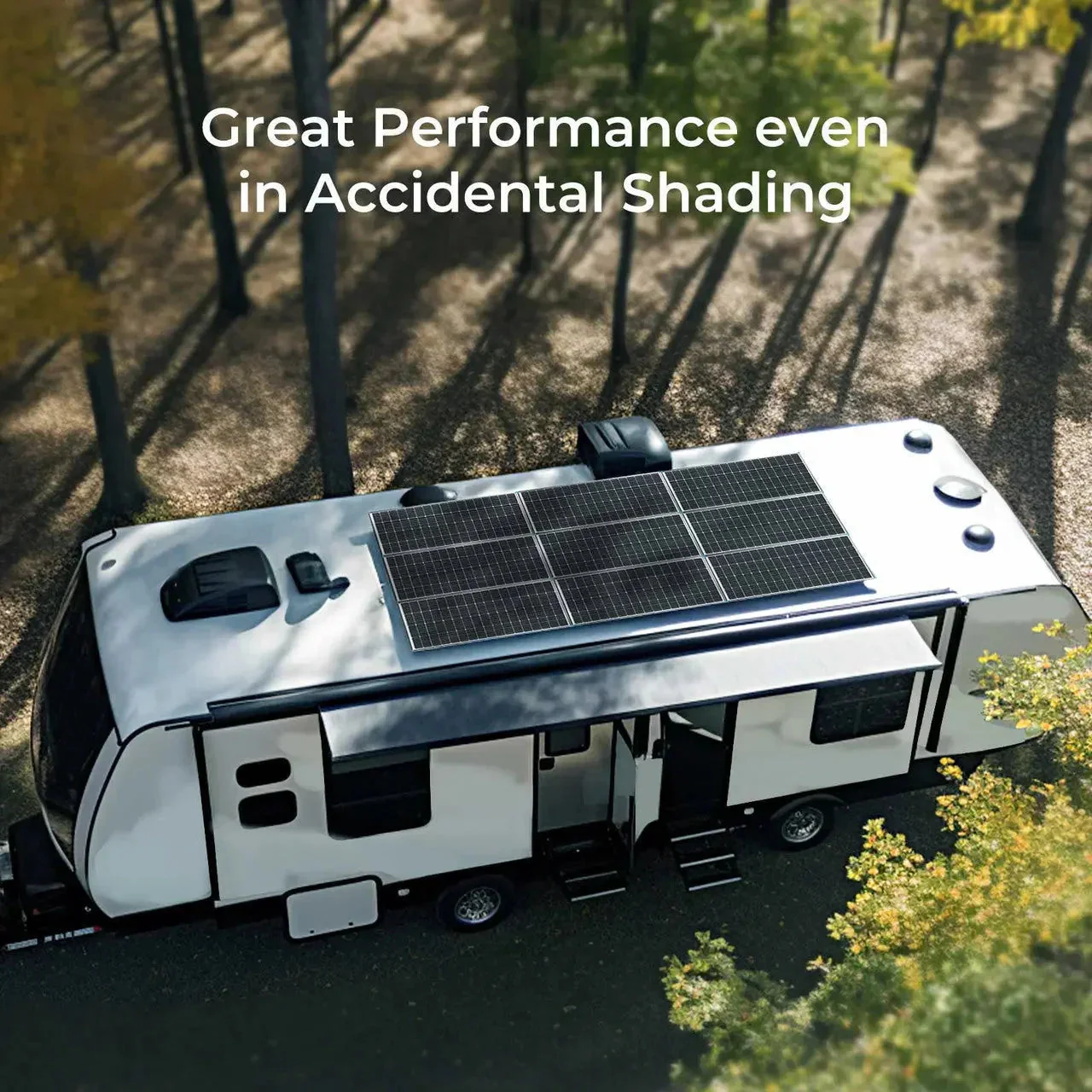

Consistent Solar Conversion under Accidental Shading
Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.

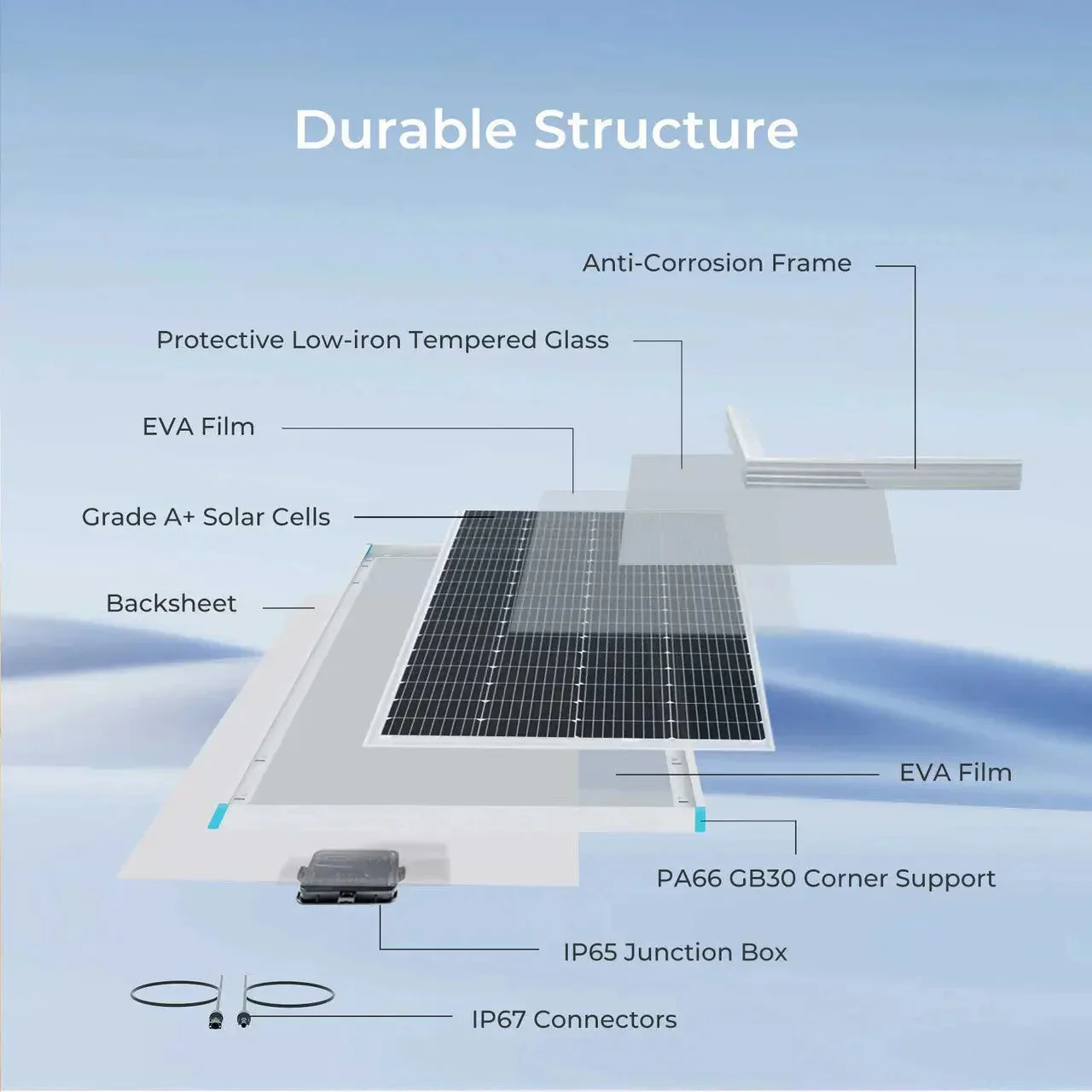

Premium Quality
With superior construction, the panel is designed to withstand challenging environments, ensuring durable and long-lasting use.

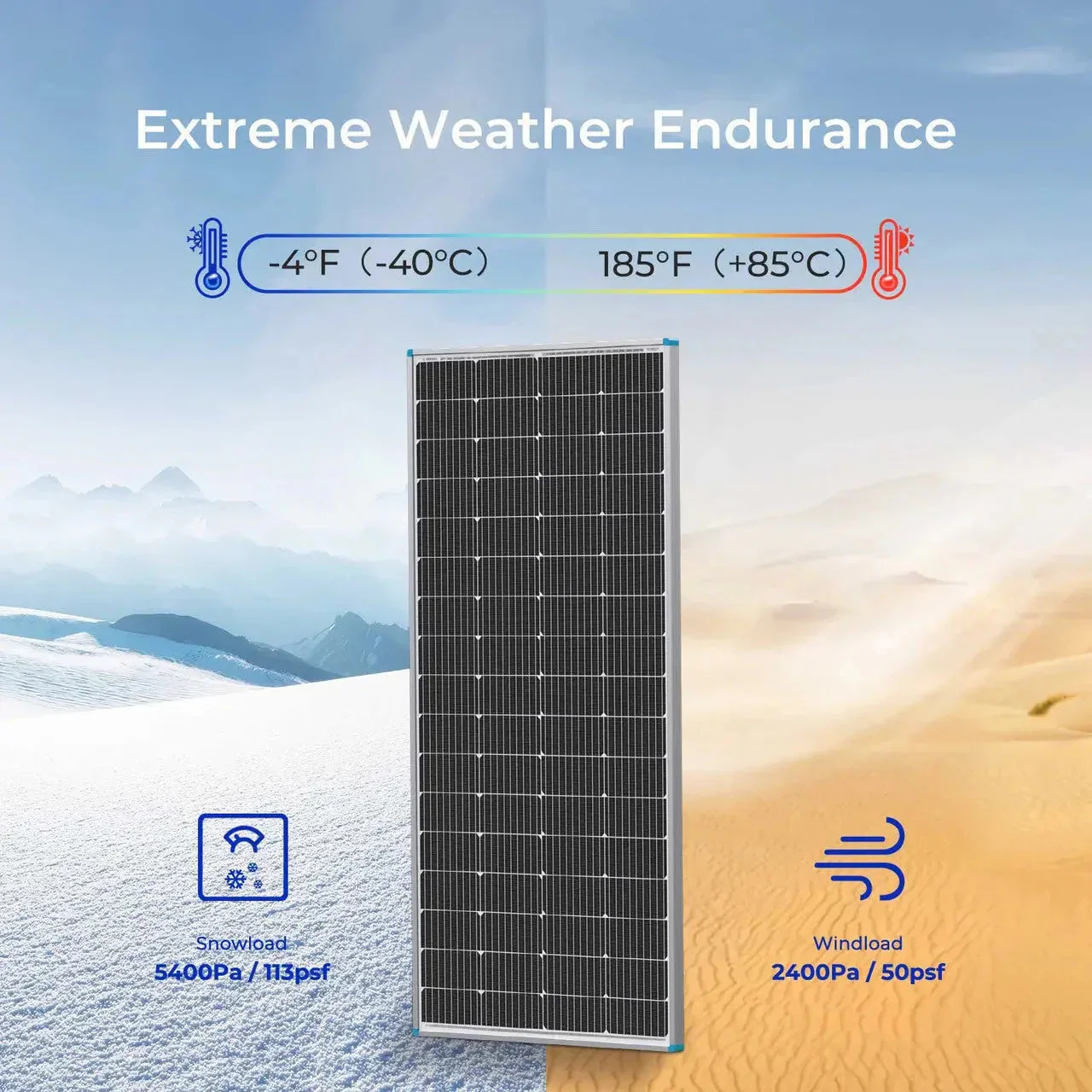

Powerful Performance
Its exceptional capabilities in extreme weather ensures a remarkable performance for years to come.
Proven Reliability
Various tests guarantee a reliable and certified quality for dependable electricity output.
Pre-drilled holes for fast mounting and securing
It has pre-drilled holes on the back of the panel, which are also compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.
Sturdy and Reliable Packaging
Renogy panels are protected with extra thick corrugated cardboard and foam L brackets on all 4 corners.
Get an Answer within 24 Hours
We offer real-time professional sales and technical support in versatile ways to ensure your question is answered within one day.
| Specifications | |
|---|---|
| Max Power at STC: 200W | Open Circuit Voltage: 23V |
| Short Circuit Current: 11.05A | Optimum Operating Voltage: 19.2 V |
| Optimum Operating Current: 10.42 A | Operating Temperature: -40°F~194°F / -40℃~90℃ |
| Maximum System Voltage: 600 VDC UL | Maximum Series Fuse Rating: 20A |

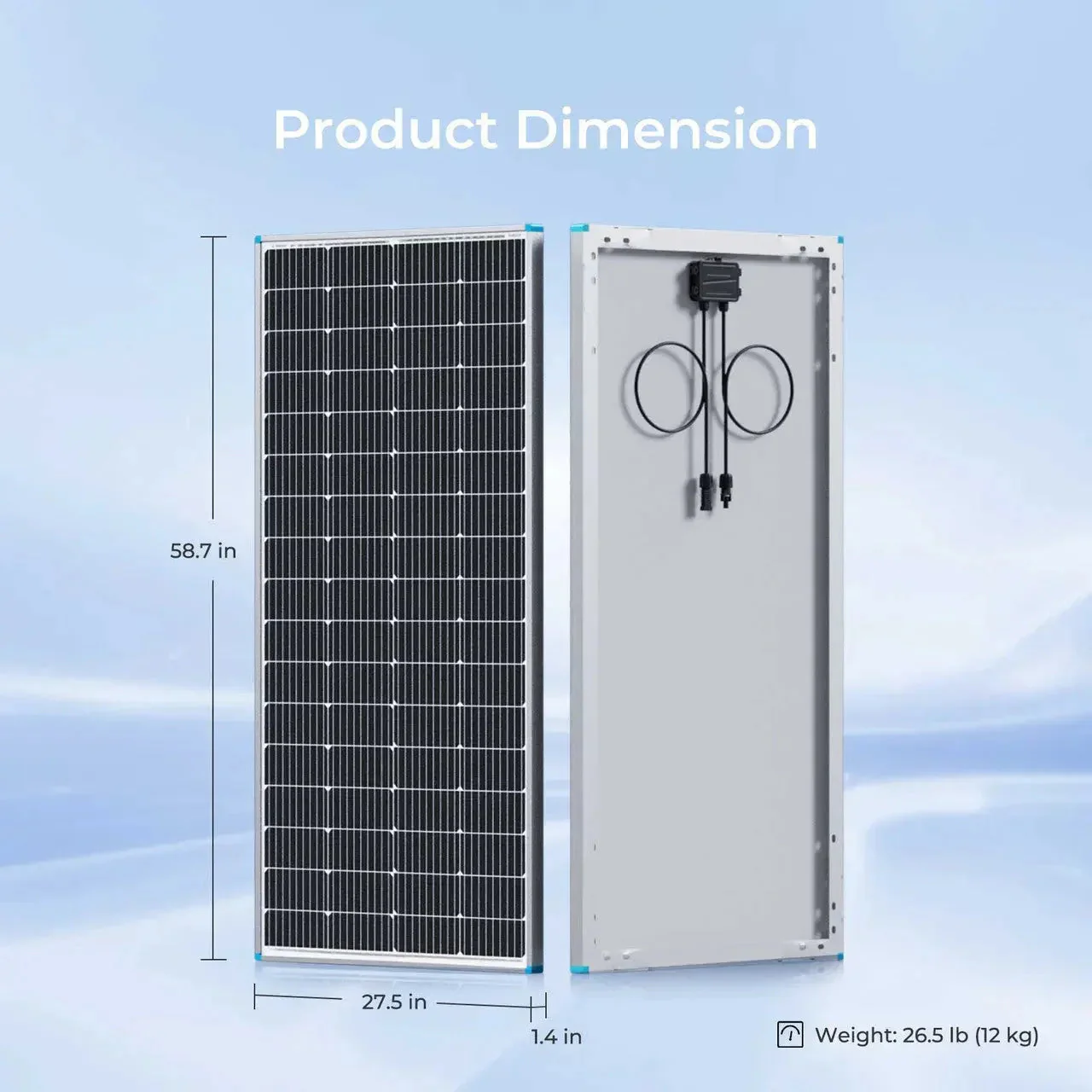

| Output Cable: 13 AWG 2.6 ft (0.9m) long | Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm |
| Weight: 26.46 lb (12 kg) |
Solar Cells: 68 Cells (4*17) |
| Junction Box: IP65 | Connectors: Solar Connectors |
| Module Efficiency: 19.2% | Frame: Anodized Aluminium Alloy |
| Maximum Series Fuse Rating: 15A |
