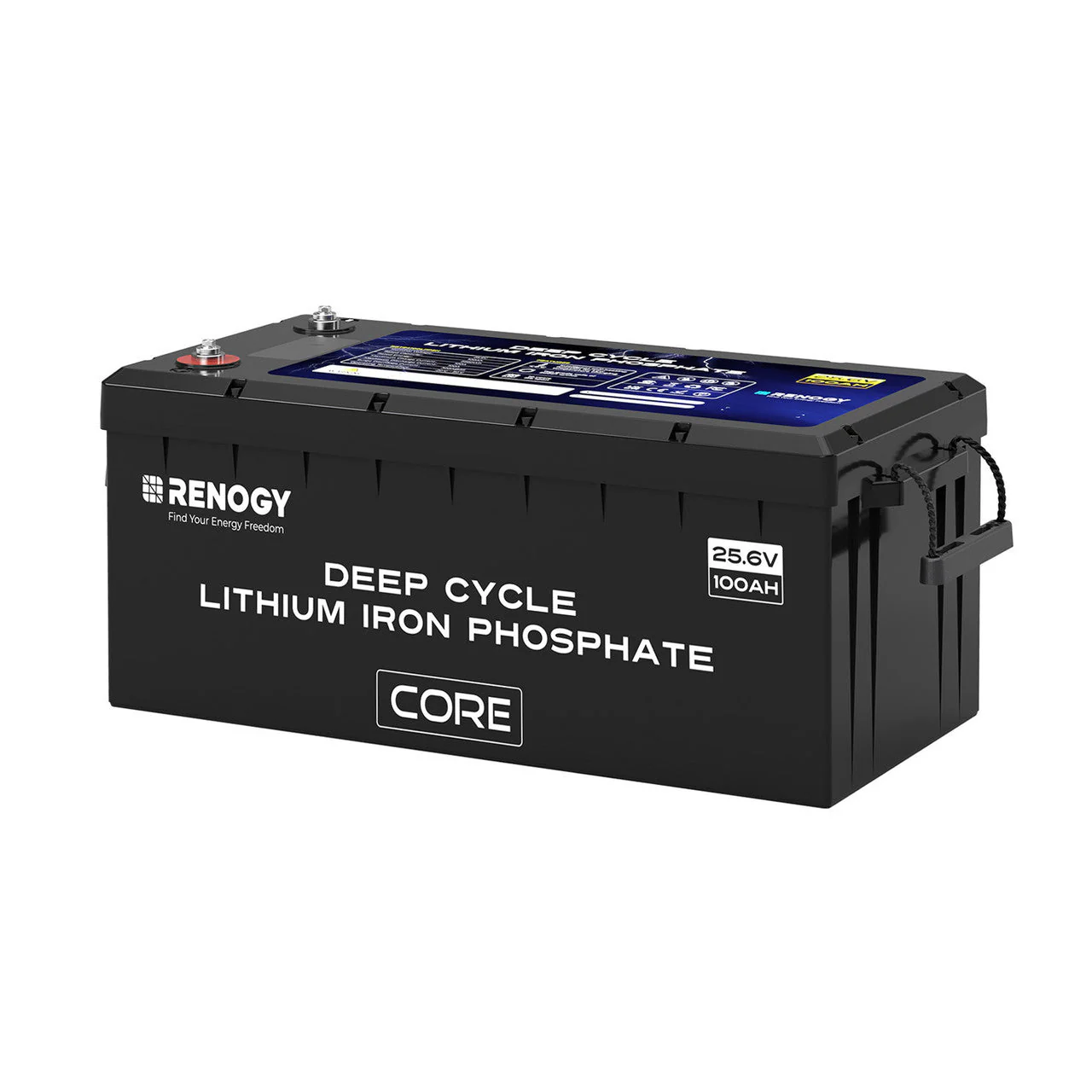

Renogy 24V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery (SC)
Renogy Deep Cycle 24V 100Ah Core lithium battery with Self-heating function
From fishing expeditions to unexplored hike trials, Renogy Deep cycle 24V 100Ah Core lithium battery with self-heating function fitted with EV-grade Grade-A cells, 200W self heating, low temp cut off and automatic charge balancing of cell, connect series, parallel or series-parallel to enhance your energy efficiency is the one energy boost you need to stay off-grid with endless supply of power.

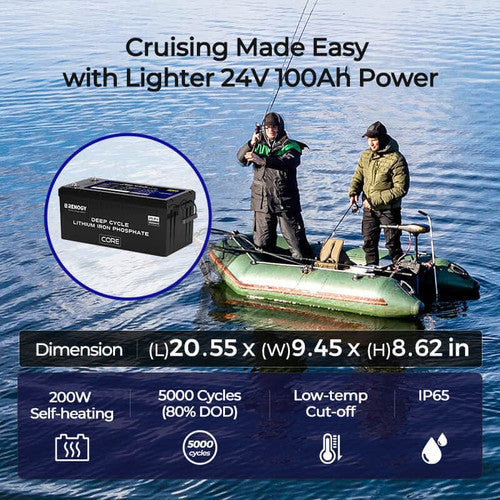

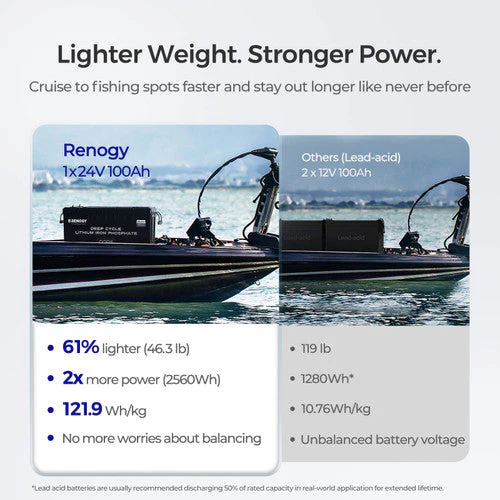

TAILOR-MADE FOR CRUISES
Unlike bulky lead--acid or LiFEPO4 batteries, Renogy 24V 100Ah core weighs 61% lighter at just 46.3lbs, reduces overall weight as you cruise your boat to fishing grounds.
EFFICIENT BACKUP POWER
At 121.9 Wh/kg which is 5 time power condensed per kilo, Renogy delivers more power in least footprint.
EXTENDED BATTERY LIFE
Enjoy a 10 year battery lifespan as the Grade-A prismatic cells boast of 5000 cycles at 80% DOD, a whopping 10 x higher battery life than any traditional lead-acid battery.

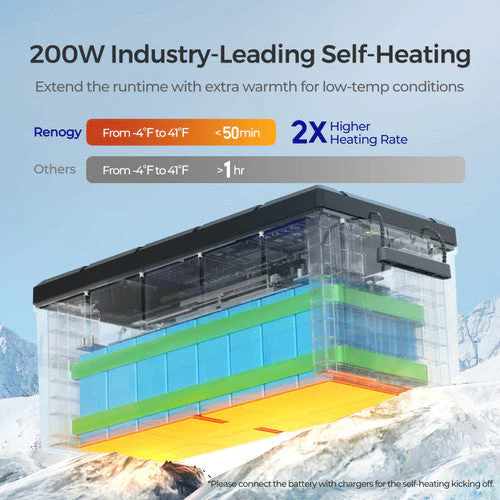

EXTENDED RUNTIME WITH EXTRA WARMTH
Out on a gold digging adventure on the rugged snowy peaks? Renogy self-heating core lithium battery fitted with industry's highest 200W heating elements can heat up the battery 2X faster to keep your log hut powered up.

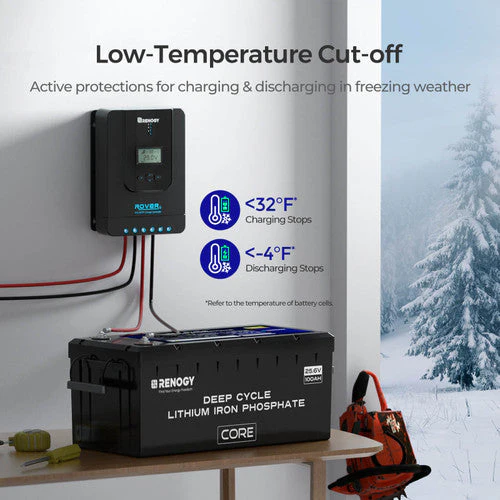

LOW TEMPERATURE CUT OFF
A reliable battery for extreme winters, your battery stands protected against low temp charging with an auto cut-off triggered by its BMS (Battery management system).
SEAMLESS POWER EXPANSION
Expand your power base to an optimal 40.96kWh in a series-parallel connection to handle extended black outs and extreme weather conditions.
Specifications:
Battery Type: Lithium Iron Phosphate
Voltage: 24V
Rated Capacity: 100Ah (0.5C, 25℃)
Voltage Range: 20.0V to 29.2V
Charge Voltage: 29.0V
Maximum Charge Current: 100A
Maximum Discharge Current: 100A
Peak Discharge Current: 300A @ 5s
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C)
Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range: '-13°F to 149°F (-25C to 65°C)
Operation Relative Humidity: 10% to 95%
Connection Method: Series (Up to 2) Parallel (Up to 8) Series & Parallel (2S8P)
Terminal Bolt Size: M8 x 1.25 x 15 mm
Recommended Terminal Torque: 10 N·m
Housing Material: ABS & PC
Protection Rating: IP65
Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)
Weight: 46.3 lbs. (21.0 kg)
Long Terminal Bolts (2): M8
Material and Workmanship Warranty: 5 Years
What's in the Box:
1 x Core - 24V 100Ah Lithium Iron Phosphate Battery
1 x User Manual
Original: $815.99
-70%$815.99
$244.80More Images
