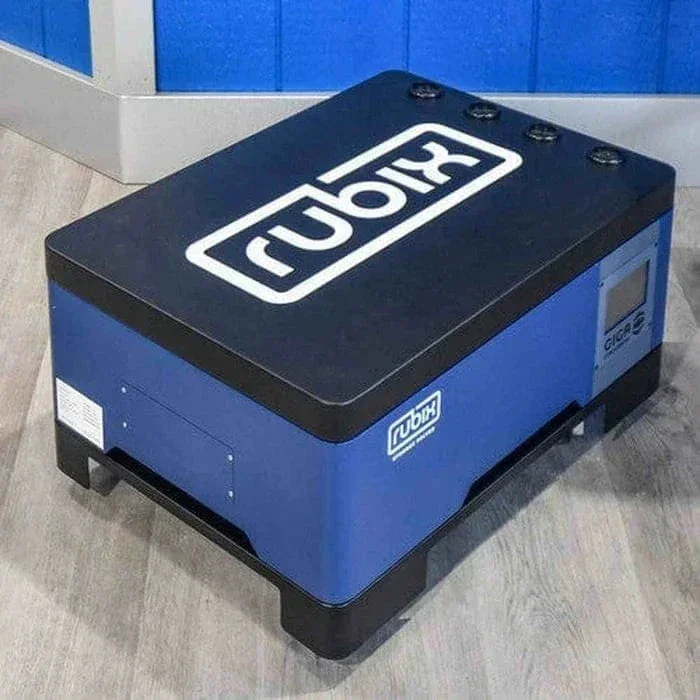

Rubix Battery 5.12kWh 48 Volt 100 AH Giga Stack Series Lithium Battery RGS-51100
Rubix Battery 5.12kWh 48 Volt 100 AH Giga Stack Series Lithium LiFePO₄ Battery RGS-51100
The Rubix Giga Stack Series offers robust and scalable energy storage solutions designed for both residential and commercial applications. Featuring models like the RGS51100 (51.2V 100Ah) and RGS51200 (51.2V 205Ah), these batteries incorporate stackable technology that eliminates the need for separate racking or cabinets. Each unit includes a touchscreen LCD for user-friendly monitoring, an enclosed cabling and networking compartment for safety, and casters for enhanced mobility. With a lifespan of up to 6,000 cycles and a 12-year warranty, the Giga Stack Series ensures long-term reliability. Additionally, integrated RPSD Impactive Balancing extends battery life by up to 30%, and UL9540A certification is available for the RGS51100 model.
KEY FEATURES
- Touchscreen LCD

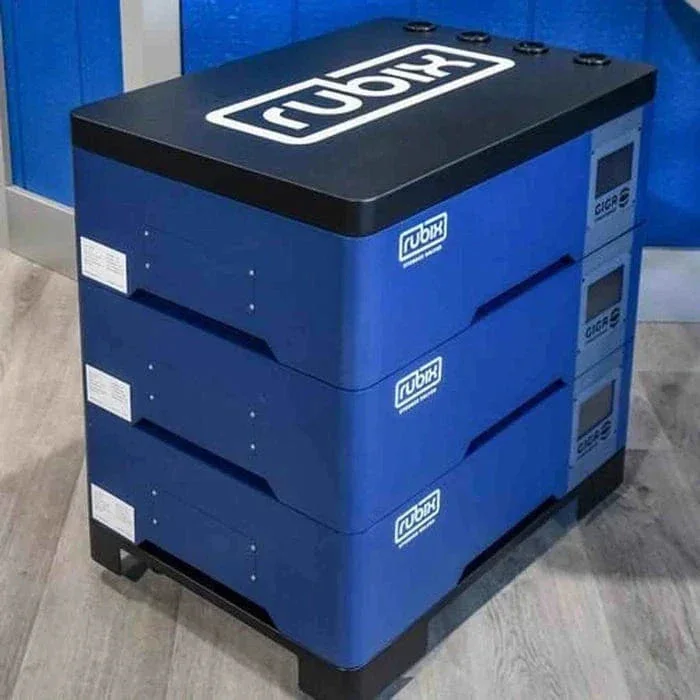

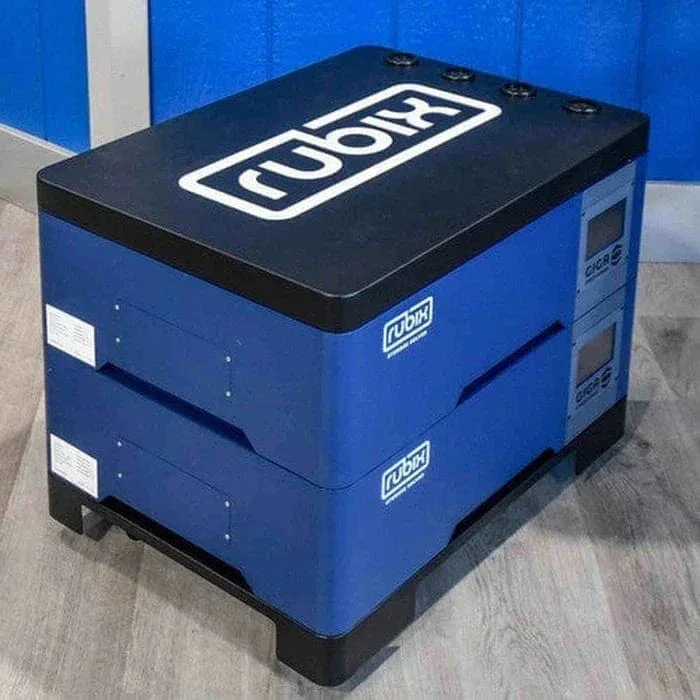

- Stack Technology eliminates the need for racking/cabinets
- Enclosed cabling and networking compartment
- Casters for maximum mobility
- 6,000 cycles with 12 yr warranty
- Multiway Closed Loop Comm with inverters
- Integrated RPSD
- Impactive Balancing for up to 30% longer life
- UL9540A for RGS51100 model; pending for RGS51200 model
RUBIX_Giga Stack Series Product Specifications
| Category | Specification |
|---|---|
| Model | RGS51100 |
| Nominal Voltage | 48 V |
| Actual Voltage @20% SOC | 51.2 V |
| Nominal Capacity | 100 Ah |
| Energy | 5.12 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Cell Type | Prismatic |
| Cycle Life | 6,000 cycles at 80% DoD; 4,000 cycles at 100% DoD; 8,500 cycles at 50% DoD |
| Retained Capacity at End of Cycle Life | 80% |
| Warranty | 12 years |
| Balancing Type | Impactive Balancing (up to 30% longer life) |
| Maximum Balancing Current | 1.1 A |
| BMS Low Voltage Cutout | 41 ±1 V |
| BMS High Voltage Cutout | 59 ±1 V |
| BMS Low Temp Cutout | 32°F (0°C) |
| BMS High Temp Cutout | 135°F (57°C) |
| Installation Position | Horizontal with base |
| Enclosure Protection | IP50 |
| LCD Display | Touchscreen LCD showing SOC%, Voltage, Charging/Discharging Amps, Balancer Status, Cell Voltages, Faults |
| Communication | Multiway Closed Loop Communication with inverters via RS485 |
| Mobility | Casters for maximum mobility |
| Stacking Capability | Stack up to 7 batteries |
| Certifications | UL9540A (pending), UN38.3 |
| Handles | Indented handles |
| Terminal Type | Bolt-on M8 |
| Max Torque | 20 ft-lbs |
| Ventilation Required | No |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Outdoor Rated | No |
| Dimensions (L x W x H) | See drawing in manual |
| Weight | 117 lbs (53 kg) |
Product Manual
RUBIX Giga Stack Series Product Manual
Product Warranty
Rubix Product Warranty
Original: $1,250.00
-70%$1,250.00
$375.00More Images
