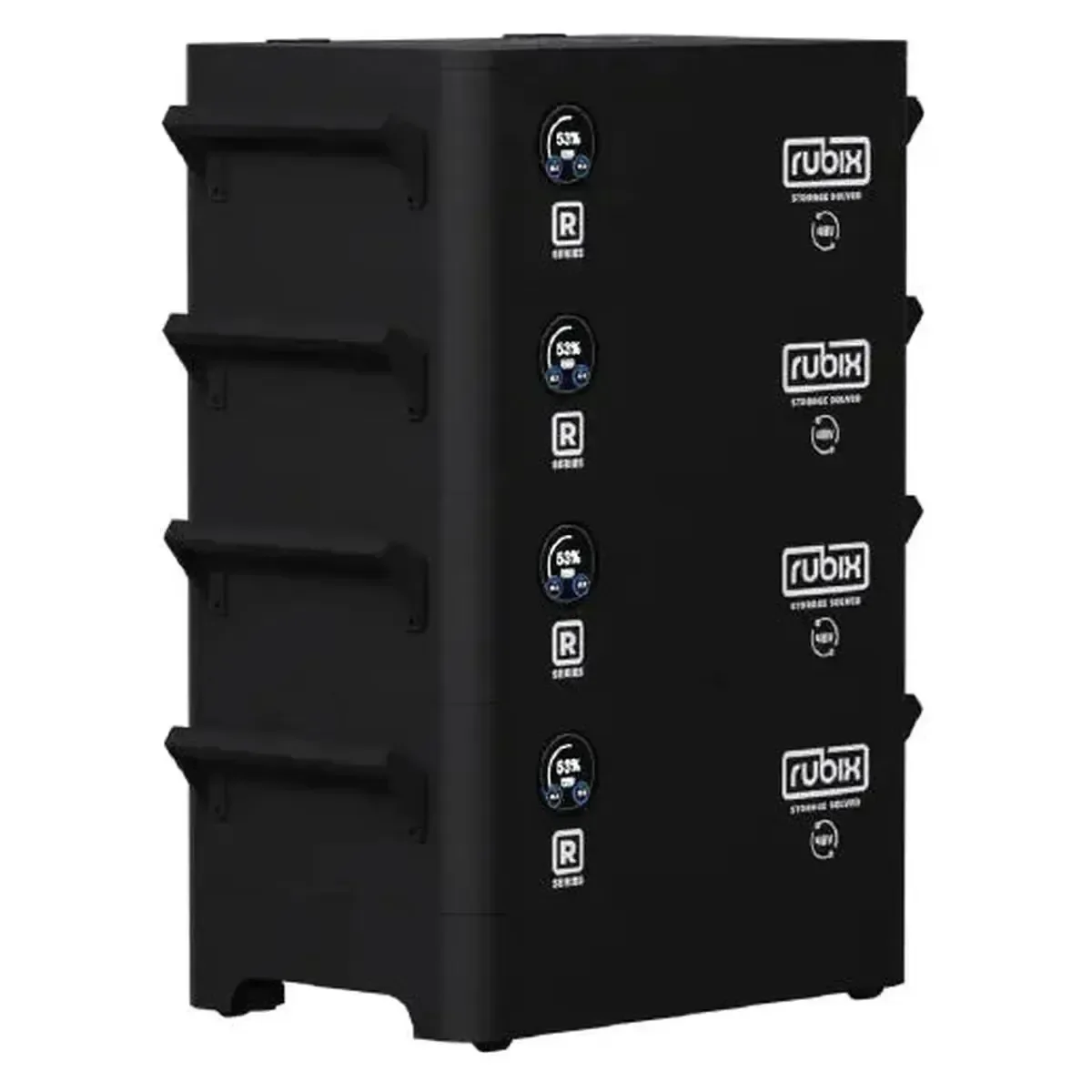

Rubix Battery 14.3 kWh 24 Volt 560 AH R-Series Lithium Battery RRS-25560

The Rubix Stack Series offers a versatile and modular energy storage solution, ideal for both residential and commercial applications. Featuring models like the RS51100 (51.2V 100Ah) and RS25200 (25.6V 200Ah), these batteries utilize stackable technology that eliminates the need for separate racking or cabinets. Each unit includes a touchscreen LCD for intuitive monitoring, an enclosed cabling and networking compartment for safety, and casters for enhanced mobility. With a lifespan of up to 5,000 cycles and a 10-year warranty, the Stack Series ensures long-term reliability. Additionally, integrated RPSD Impactive Balancing extends battery life by up to 30%, and UL9540A certification is available for the RS51100 model

KEY FEATURES

• Touchscreen LCD
• Stack Technology eliminates the need for racking/cabinets
• Enclosed cabling and networking compartment
• Casters for maximum mobility
• 5,000 cycles with 10 yr warranty
• Multiway Closed Loop Comm with inverters
• Integrated RPSD
• Impactive Balancing for up to
  30% longer life
• UL9540A (RS51100 only)



Rubix | Stack Series 24 Volt 560 AH Lithium Battery Product Specifications

RUBIX Stack Series Product Specifications

Category	Specification
Model	RRS25560
Nominal Voltage	25.6 V
Nominal Capacity	560 Ah
Energy	5.12 kWh
Battery Chemistry	Lithium Iron Phosphate (LiFePO₄)
Cycle Life	5,000 cycles
Warranty	10 years
Balancing Type	Impactive Balancing (up to 30% longer life)
Installation Position	Horizontal with base
Enclosure Protection	IP65
LCD Display	Touchscreen LCD showing SOC%, Voltage, Charging/Discharging Amps, Balancer Status, Cell Voltages, Faults
Communication	Multiway Closed Loop Communication with inverters
Mobility	Casters for maximum mobility
Stacking Capability	Stackable design eliminates the need for racking/cabinets
Certifications	UL9540A (RS51100 only)
Dimensions (L x W x H)	See drawing in manual
Weight	Approximately 117 lbs (53 kg)
