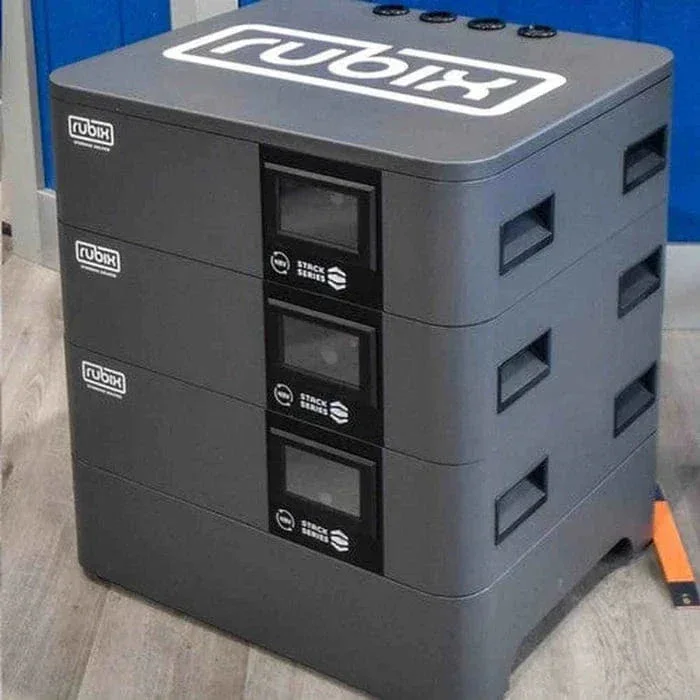

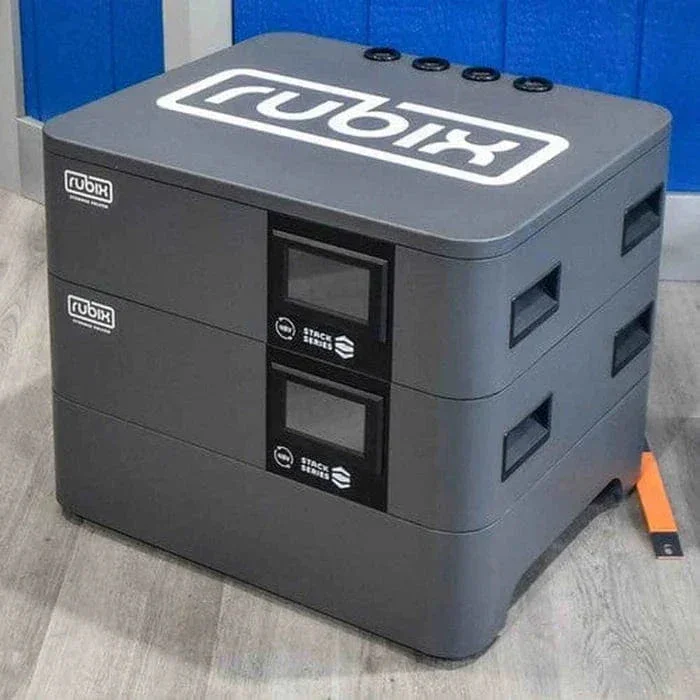

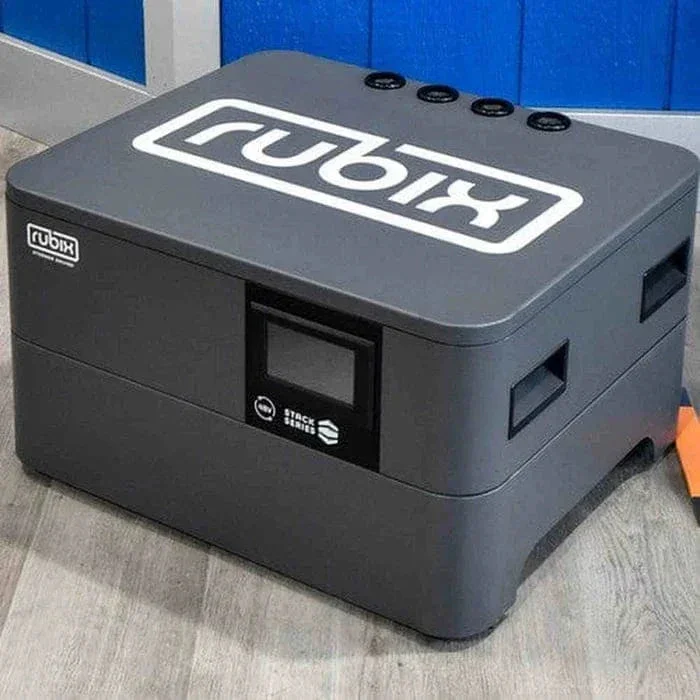

Rubix 5.12 kWh Battery 24 Volt | 200AH Stack Series Lithium LifePO4 Battery RS-25200
Rubix Stack Series Lithium Battery RS-24200
The Rubix Stack Series offers a versatile and modular energy storage solution, ideal for both residential and commercial applications. Featuring models like the RS51100 (51.2V 100Ah) and RS25200 (25.6V 200Ah), these batteries utilize stackable technology that eliminates the need for separate racking or cabinets. Each unit includes a touchscreen LCD for intuitive monitoring, an enclosed cabling and networking compartment for safety, and casters for enhanced mobility. With a lifespan of up to 5,000 cycles and a 10-year warranty, the Stack Series ensures long-term reliability. Additionally, integrated RPSD Impactive Balancing extends battery life by up to 30%, and UL9540A certification is available for the RS51100 model
KEY FEATURES
- Touchscreen LCD
- Stack Technology eliminates the need for racking/cabinets
- Enclosed cabling and networking compartment
- Casters for maximum mobility
- 5,000 cycles with 10 yr warranty
- Multiway Closed Loop Comm with inverters
- Integrated RPSD
- Impactive Balancing for up to
30% longer life - UL9540A (RS51100 only)
Product Specifications
Rubix | Stack Series 24 Volt 200 AH Lithium Battery Product Specifications
RUBIX Stack Series Product Specifications
| Category | Specification |
|---|---|
| Model | RS25200 |
| Nominal Voltage | 25.6 V |
| Nominal Capacity | 200 Ah |
| Energy | 5.12 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Cycle Life | 5,000 cycles |
| Warranty | 10 years |
| Balancing Type | Impactive Balancing (up to 30% longer life) |
| Installation Position | Horizontal with base |
| Enclosure Protection | IP65 |
| LCD Display | Touchscreen LCD showing SOC%, Voltage, Charging/Discharging Amps, Balancer Status, Cell Voltages, Faults |
| Communication | Multiway Closed Loop Communication with inverters |
| Mobility | Casters for maximum mobility |
| Stacking Capability | Stackable design eliminates the need for racking/cabinets |
| Certifications | UL9540A (RS51100 only) |
| Dimensions (L x W x H) | See drawing in manual |
| Weight | Approximately 117 lbs (53 kg) |
Product Manual
RUBIX Stack Series Product Manual
Product Warranty
Rubix Product Warranty
