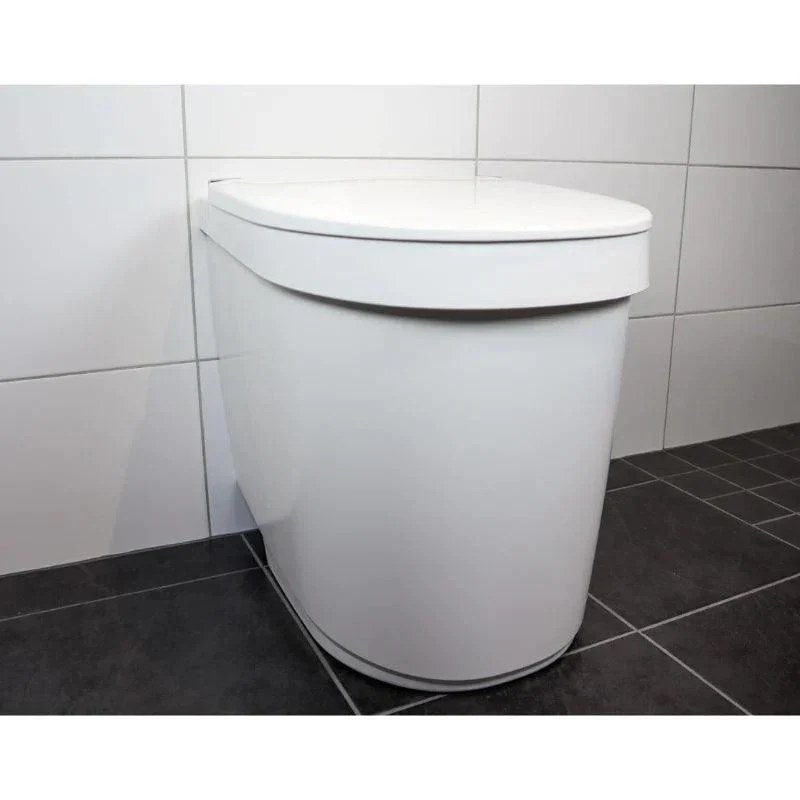

Separett Tiny with Urine Tube

Separett Tiny with Urine Tube - 2025 Upgrade

What’s New!
We’ve upgraded the Tiny for even better performance and durability. The front is now fixed in up-position for increased stability, and the new redesigned urine nozzle together with the removed movement of the front significantly reduces stress on the gasket - minimizing the risk of gasket damage and spills.

Waterless compost toilet for the smaller spaces!

Tiny is the latest addition to the Separett family of compost toilets. The smaller design and lessons learned from several decades have led to a modern urine separation toilet that is especially suitable for installations where space is limited. The toilet can be operated with 110-230V or with 12V solar cell / battery power. The fan has very low energy consumption (0.04 kWh / 24 h) and is therefore suitable for battery or solar cell operation. The battery and battery cables are not included.

Unlike a traditional composting toilet there is no cranking or additives needed. The ADA compliant 17.5-inch seat height makes Tiny as comfortable as a household toilet. Separett Tiny is the best toilet solution for vans, tiny houses, RVs, boats, and off-grid properties.

Features:

• NEW 2023 Model with Improved Privacy Screen:' The latest version of the Separett Tiny comes with an enhanced privacy screen, ensuring a comfortable and private bathroom experience.

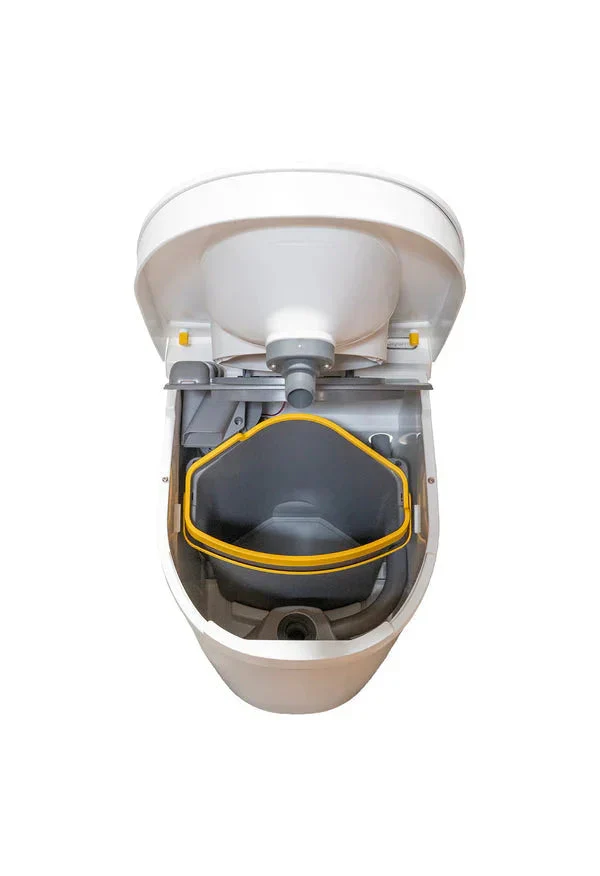

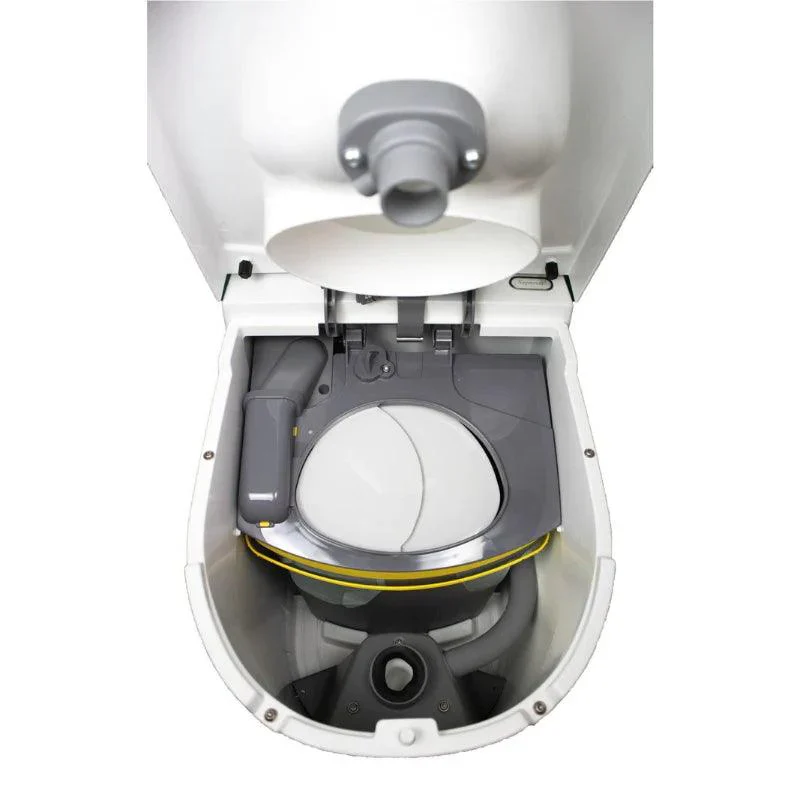

• Urine Diverting Technology:' This innovative composting toilet features urine diverting technology, separating solid waste into a bio-degradable bag and directing liquids through a tube, preventing odors and simplifying waste disposal.
• Odor-Free Operation:' Equipped with a powerful 12v fan, the Separett Tiny effectively vents out any unwanted odors, keeping your tiny living space fresh and pleasant.
• No Cranking or Additives Needed:' Unlike traditional composting toilets, the Separett Tiny doesn't require constant cranking or additional additives, making waste management effortless.
• ADA Compliant 17.5-inch Seat Height:' The toilet's ADA compliant seat height provides the same comfort as a household toilet, ensuring a pleasant experience even in small living spaces.
• Compact and Space-Saving Design:' Developed with tiny spaces in mind, the Separett Tiny fits perfectly in vans, tiny houses, RVs, boats, and off-grid properties, maximizing available space.
• Versatile Applications:' Whether you're on the road in your RV or living off-grid in a tiny house, the Separett Tiny with Urine Tube is the ideal toilet solution for various living scenarios.
• Eco-Friendly and Sustainable:' By promoting urine separation and utilizing bio-degradable bags, the Separett Tiny supports eco-friendly living and sustainable waste management.
• Easy to Install and Use:' Setting up the Separett Tiny is straightforward, and its user-friendly operation ensures a seamless experience for all users.
• Improved Comfort with Privacy Screen:' With the new and improved privacy screen, the Separett Tiny enhances comfort and ensures a more discreet and private bathroom experience.

Installation:

• All' you need for installing the Tiny with urine container is the electric energy of 12 V or 110'“240 V and a 50 mm pipe that is used for ventilating the toilet.
• The toilet is designed for 50 mm pipes (outer diameter). For optimal function it is recommended that you use Separett's own installation kit that has pipes and angles in the correct dimensions.
• Separett Tiny can be installed with up to 5 meters of ventilation piping and 2 90-degree bends. Ventilated air can go through a wall, floor or roof, for example, up into an attic and out through a suitable side of the house.'

Included with your Purchase:

• Separett Tiny waterless separating compost toilet, 12V / 110-240 V
• User and installation manual
• Universal adapter for power socket

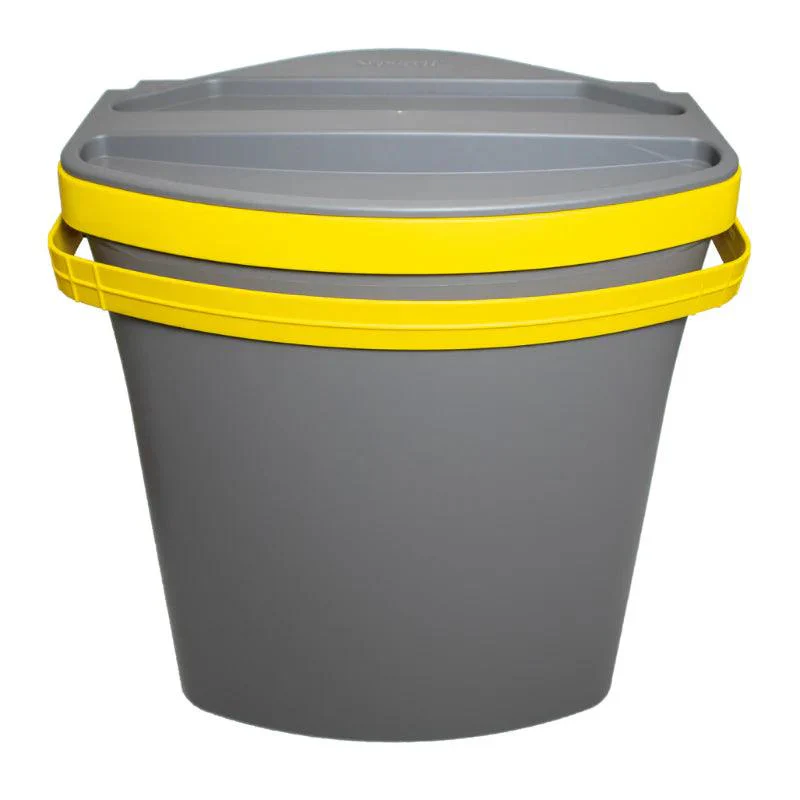

• 1 x solid waste container
• 1 x lid for waste container
• 6.6 ft white urine hose Ø1.26” to lead out the urine
• 90° bend for the Ø1.26” urine hose
• Straight connector for the Ø1.26” urine hose
• Indoor flashing for the Ø1.26” urine hose
• 2 x wall mount to attach the urine hose
• Urine bowl grid / holder for Separett Bioblock
• Straight connector pipe to convert EU Ø50mm to Ø1,5” schedule 40
• 90° bend for the Ø1.5” (schedule 40) ventilation pipe
• 1.47 ft long Ø1.5” (schedule 40) pipe for simple ventilation installation through the wall
• Insect net and rain cap for Ø1.5” (schedule 40) ventilation pipe
• Indoor flashing for the Ø1.5” (schedule 40) ventilation pipe
• Silicone strip to seal the bottom of the toilet
• Screws for mounting the toilet to the wall or to the floor
• A sample of Bioblock – used to prevent blockage in the internal urine hose
• A sample of Absorb – used to prevent excess moisture in the solids container
• A sample of Compostable waste bags – used in the solid waste container to collect waste
• Installation template – has markings for drilling holes and attaching the toilet

Specifications:

'

• Weight 18.74Lbs
• Shipping Weight: 27Lbs
• Dimensions: 19.5" x 15.5" x 19"
• Seat Height: 44-45 cm
• Inner Container Volume: 1.9 Gallons
• Color: White
• Package Dimensions: 21" x 19.5" x 16.5"
• Power Usage:  12 V / 1,6 W / 133 mA
• Energy consumption: 0,04 kWh/day
• Power Connection:  Battery cables 1,55 m or power adapter 110-230 V/12 V
• Noise Level: <30 dB(A)

Downloads:

Separett Tiny User Manual

Separett Tiny Installation Manual

Separett Tiny Product Sheet

Separett Tiny Converting to urine container Instructions
