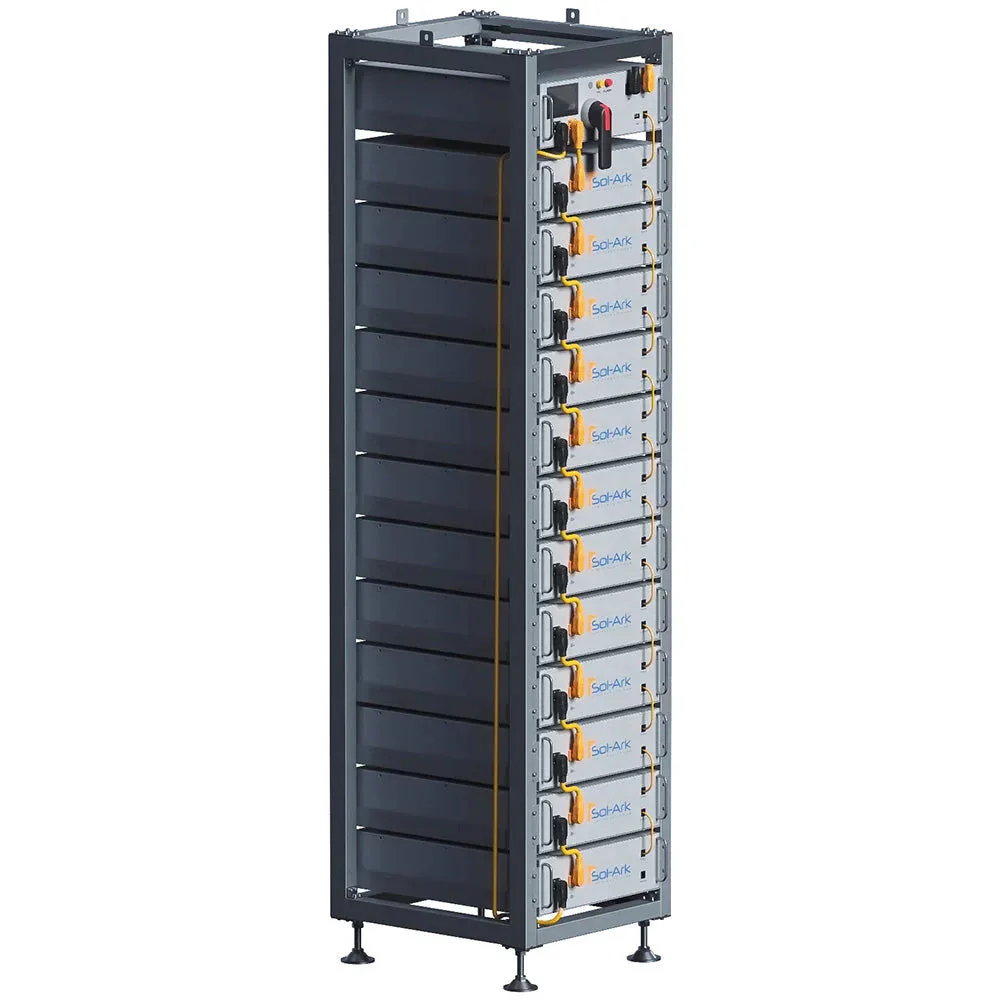

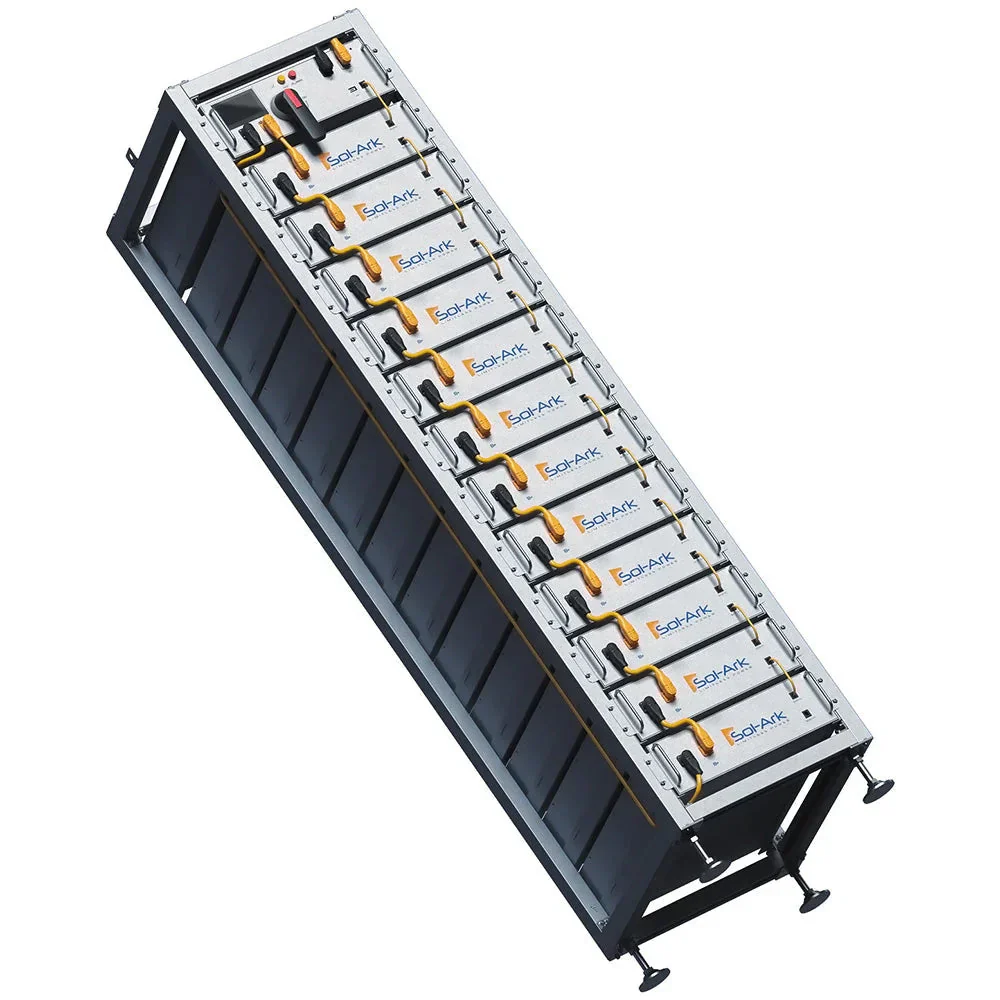

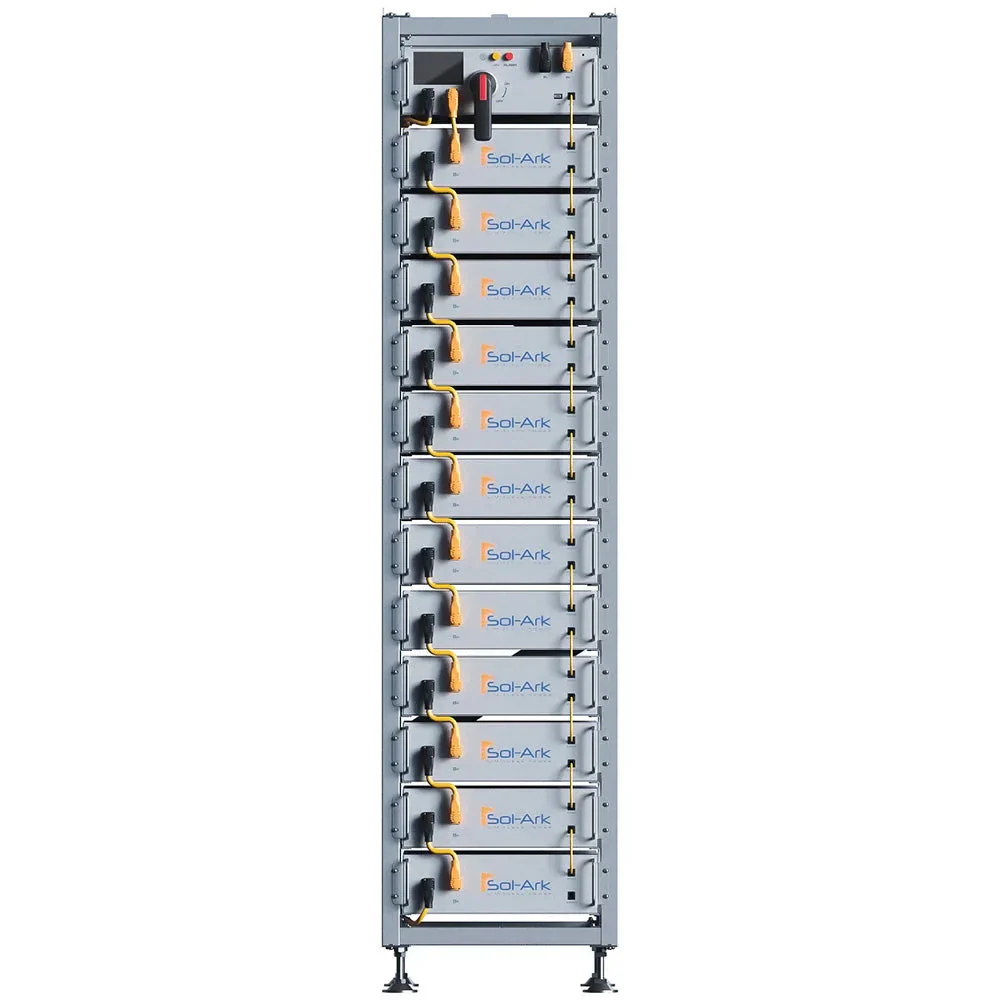

Sol-Ark 60kWh Battery Bank IP20 Indoor L3-HV-60KWH-60K
Sol-Ark 60KwH Battery Bank IP20 Indoor L3-HV-60KWH-60K
SPECIAL ORDER
The Sol-Ark L3-HV-60KWH-60K is a high-capacity indoor energy storage solution engineered for large-scale commercial and industrial operations. This advanced system pairs a robust 60kWh lithium iron phosphate battery with the Sol-Ark 60K-3P-480V inverter, delivering up to 60kW of continuous AC power—ideal for supporting critical infrastructure and demanding energy loads.
Optimized for indoor deployment, the system features a durable IP20-rated enclosure, making it well-suited for climate-controlled environments such as utility rooms and electrical enclosures. Its modular and scalable architecture supports up to 10 inverters and 160 battery cabinets, providing a highly flexible energy storage platform that can scale alongside your business needs.
Specs
- Model Number: L3 HV-60KWH-60K
- Compatible Inverter Model: Sol-Ark 60K-3P-480V
- Nameplate Energy Capacity (DC): 61.44 kWh
- Usable Energy Capacity (DC): 55.30 kWh
- Cell Chemistry: Lithium Iron Phosphate
- Max. # Battery Units Per Inverter: 16
- Max. # Inverters in Parallel: 10
- Built-In DC Disconnect Rating: 200A
- Product Dimensions (WxDxH): 23x23x86 in
- Mounting Type: Freestanding Rack Mount
- Enclosure Rating: IP20
- Warranty: 10 Years
- UL Certifications: UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65
Features
- High Capacity: 60kWh of lithium battery storage for extended power backup and energy management.
- Highly Scalable: Supports up to 10 inverters and 160 battery cabinets, enabling configurations up to 600kWac and 9.6MWh of storage.
- Smart Monitoring: Advanced remote monitoring and control features for proactive system management.
- Safe Chemistry: Reliable and safe LiFePO4 cell chemistry for peace of mind.
- Outdoor Rated: IP20 enclosure for reliable performance in challenging outdoor environments.
Guide
Item Documents Brochure
The Sol-Ark L3 HV-60KWH-60K comes with comprehensive warranty coverage. The system includes a 10-year product warranty. Additionally, it offers a performance warranty of 6 to 10 years or 196MWh throughput, whichever comes first. This warranty guarantees that your energy storage system will maintain its capacity and performance over time.
