SunGold 11.4KW Split Phase Hybrid Inverter

SunGold 11.4KW Split Phase Hybrid Inverter | SGN11.4KHB-48

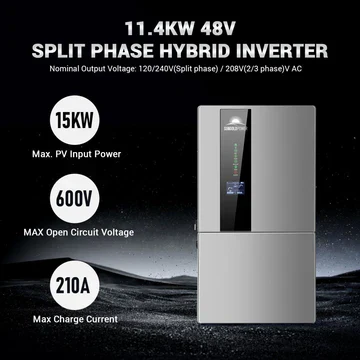

With 15kW solar input capacity and seamless grid-tie, off-grid, and battery storage capabilities, SunGold 11.4kW split phase hybrid inverter delivers professional-grade performance for residential and light commercial installations requiring an uninterrupted power supply.

• 20kVA Peak Power
• 15kW Solar Input Capacity
• <10ms Transfer Time

About the Product

The SunGold 11.4kW split phase hybrid inverter combines advanced solar conversion technology with intelligent battery management. Delivering 11,400W continuous AC output with support for up to 15,000W of PV input across three independent MPPT trackers, it maximizes solar harvest from complex roof layouts and partial shading conditions.

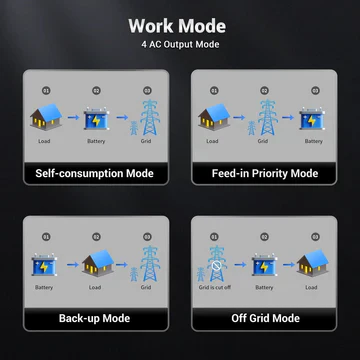

Built for versatile operation, the SunGold hybrid inverter seamlessly transitions between grid-tie, off-grid, and backup modes with less than 10ms transfer time. The inverter handles up to 20,000VA peak power, ensuring reliable startup for motors and high-demand appliances.

The system supports 210A charge/discharge current with compatibility for both lithium-ion and lead-acid battery systems ranging from 40V to 64V. Furthermore, with the IP65/NEMA 3R weatherproof enclosure,  SunGold 11.4kW split phase hybrid inverter operates from -13°F to 140°F, making it suitable for outdoor wall-mount installations.

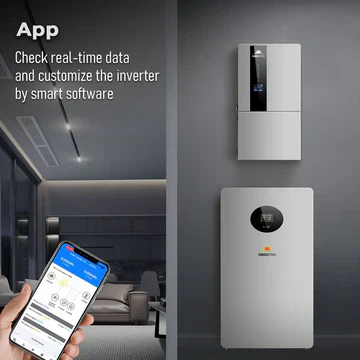

Also, this split phase solar inverter allows monitoring through optional Wi-Fi/LAN connectivity and a mobile app. This way, you get remote access to real-time system status and programmable settings.

Specifications

Download the manual here.
