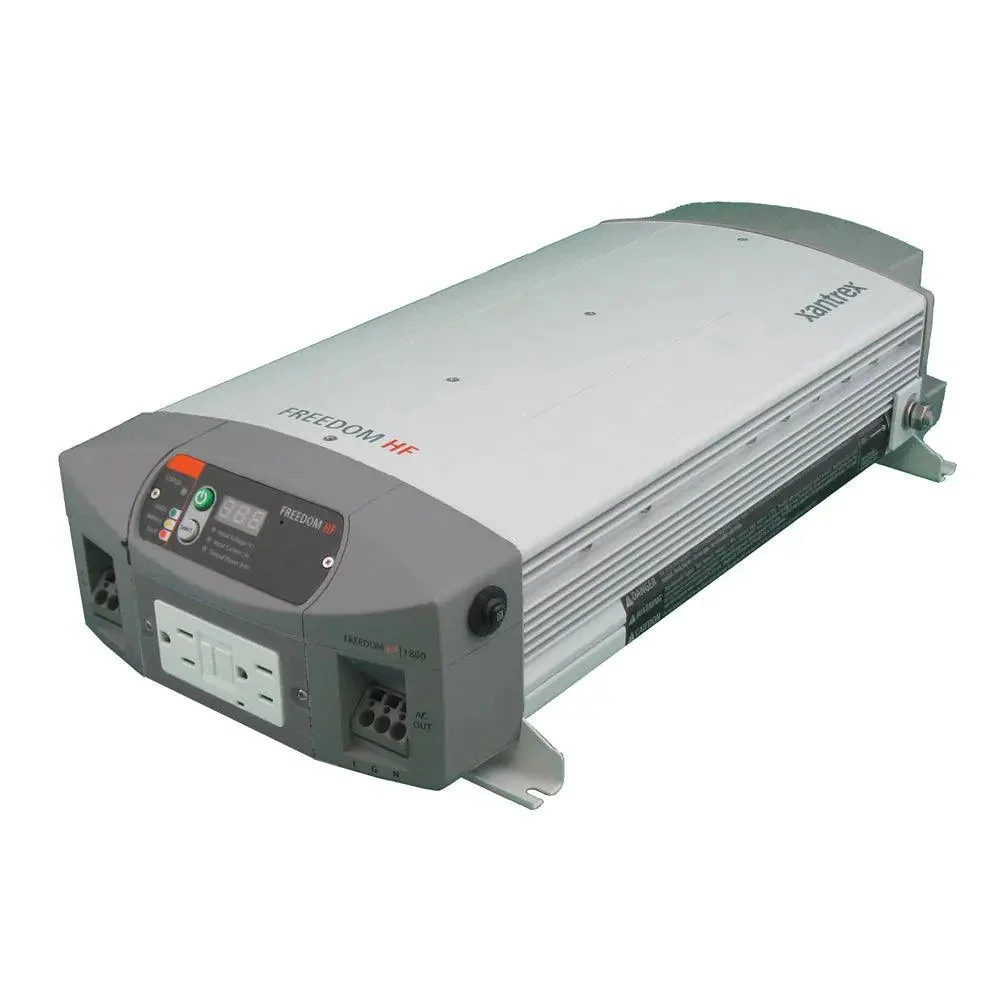

Xantrex Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC [806-1055] (SC)

Freedom HF 1055 Inverter Charger - 120VAC 55A 12VDC

The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off.

The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV's and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger.

Multistage charging helps ensure that batteries are recharged quickly and efficiently. All models are equipped with a built-in automatic transfer switch and dual GFCI receptacle. Detachable digital remote control panel display provides precise system information and can be mounted at a convenient location for remote monitoring.

Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off.

Product Features:

• Input Voltage: 12V

• AC Output: GFCI and/or Hardwire

• Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment

• Removable digital display pre-attached with 25' extension cable for remote system monitoring

• Ignition lockout feature helps to minimize battery drain

• Automatic three-stage battery charger

• Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included)

• Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features:

• Battery over-voltage and under-voltage protection

• Over-temperature shutdown

• Automatic overload protection

• Short-circuit protection

• Ground-fault protection

• ETL certified to UL458 for use in mobile RV and commercial applications

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Input - Voltage: 120v
• Outlet Qty: 1 Duplex GFCI
• Charging Banks: 1
• Inverter Output Voltage: 120v
• Inverter Input Voltage: 12v
• Inverter Cont. Output Wattage: 1000w
• Charger Output Voltage: 12v
• Charger Output - Amps: 55a
• Box Dimensions: 7"H x 11"W x 17"L WT: 12.7 lbs
• UPC: 715535610555

Quick Guide (pdf)
Owner's Manual (pdf)
